NEON FLEX
Combining vibrant, colour-changing LEDs in a flexible silicone strip -> for ultimate versatility.
Flexible LED strip lighting
Introducing ENTTEC Neon Flex: the ultimate lighting solution that combines flexibility, durability, and ease of installation. Made from high quality silicone, this waterproof LED strip is designed to handle any environment.
With its ability to bend horizontally, ENTTEC Neon Flex allows for easy shaping and contouring, enabling you to create amazing, unique designs.
Accessories
Mounting options
At ENTTEC, we know that well-considered design is key to a successful installation. Our team have created a leading range of innovative accessories with premium cabling and connectors to support your project and make specifying and installing the SMART PXL series simple. For peace of mind, our 24V and 48V accessories also feature different pinouts to prevent damage being caused when using different voltages.
Accessories
We also have a range of system accessories to suit your needs, including 3-pin male or female connectors and power injector cables. Refer to the data sheets below for more information on mounting and cabling options.
So many possibilities

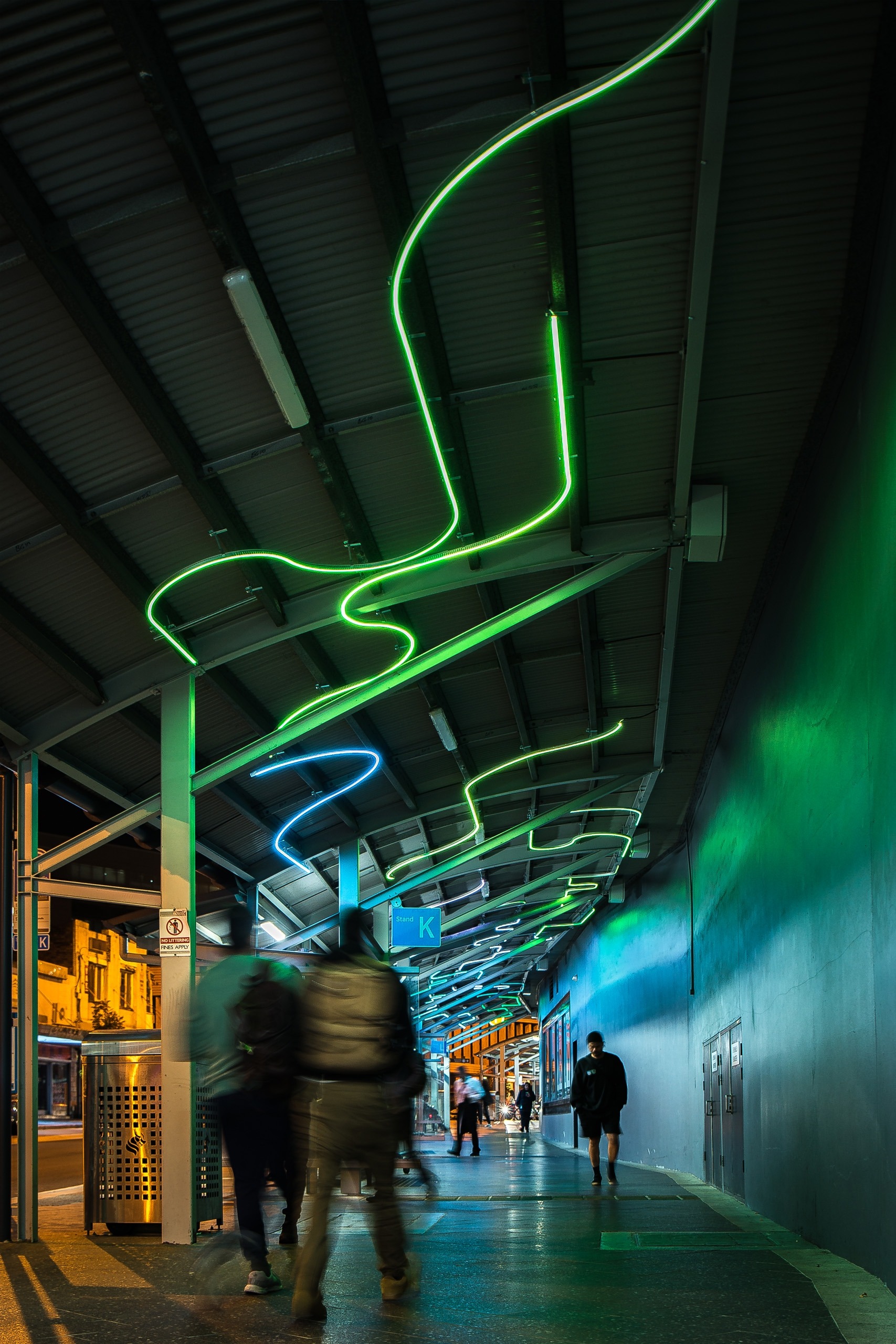

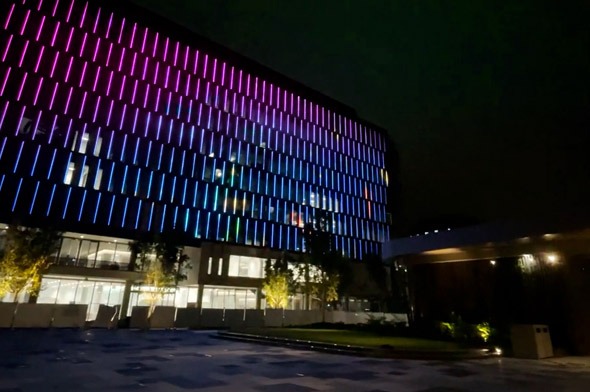

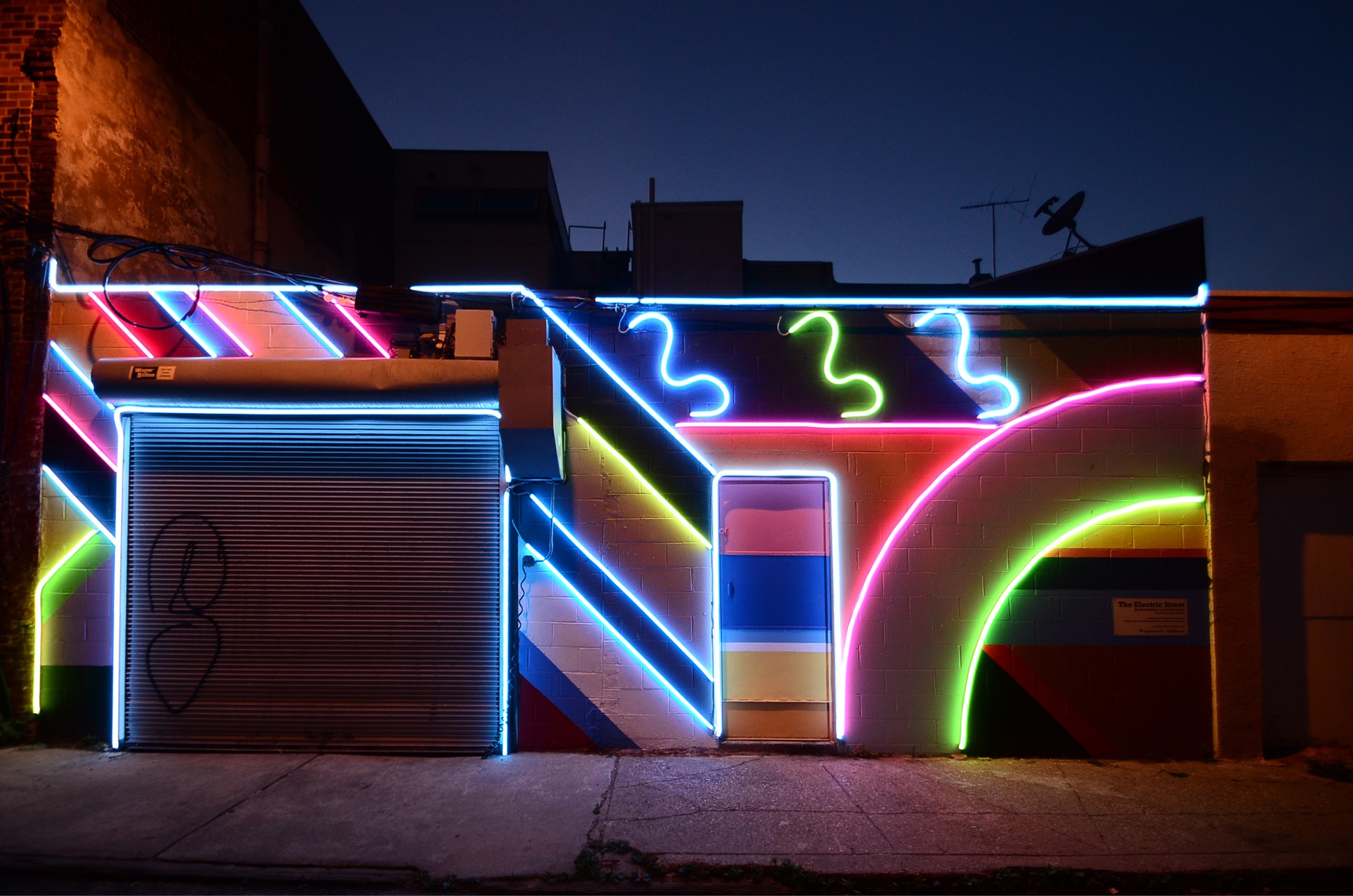

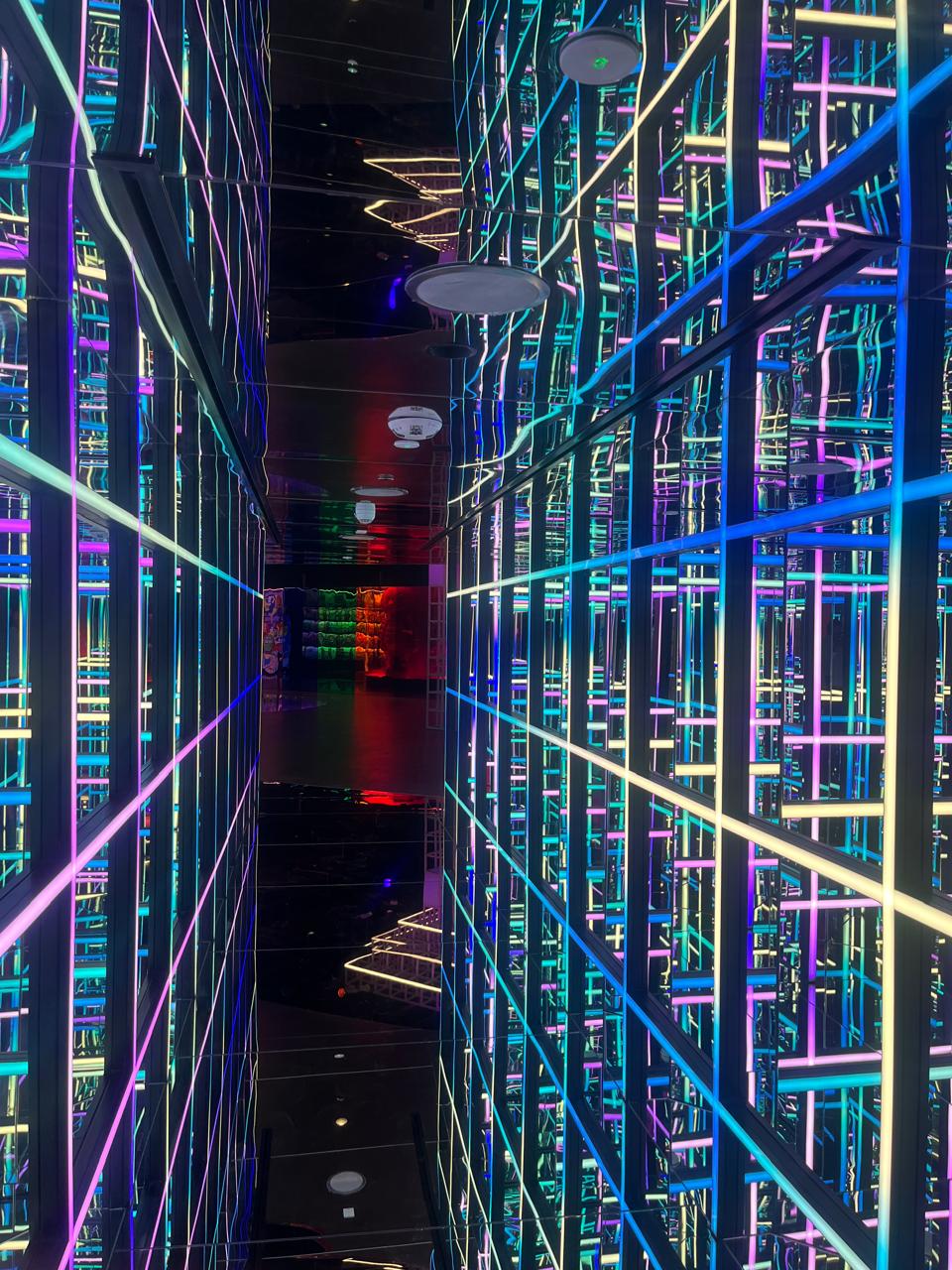

LED Neon Flex is ideal for both indoor and outdoor lighting. Its versatile, durable and energy-saving nature lends itself perfectly to eye-catching signage or commercial building façades, not to mention multiple uses around your home.

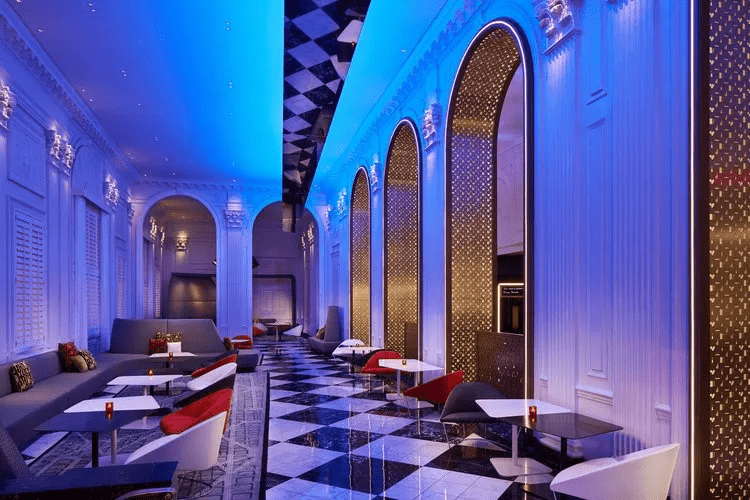

You can also install it in cars, ships, museums, theme parks, nightclubs, concert venues … you name it. And when used alongside ENTTEC’s DMX or LED pixel controllers and software, your audience will be blown away.
Talk to us today and discover how ENTTEC’s professional Neon Flex can transform your project.

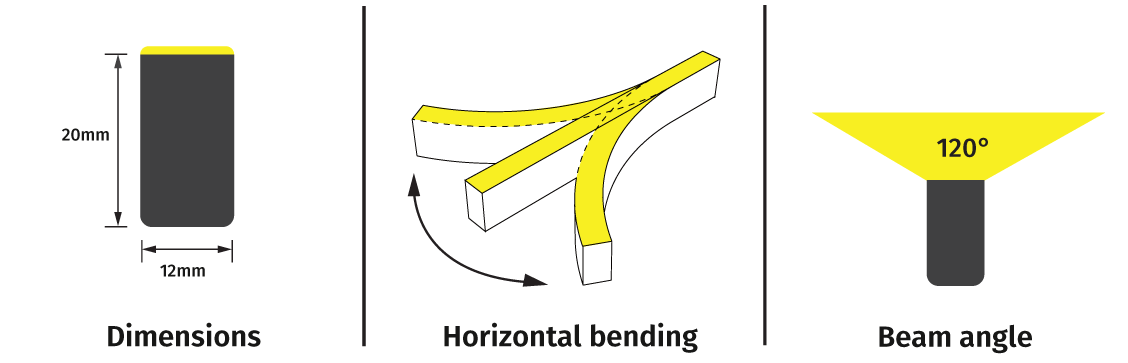

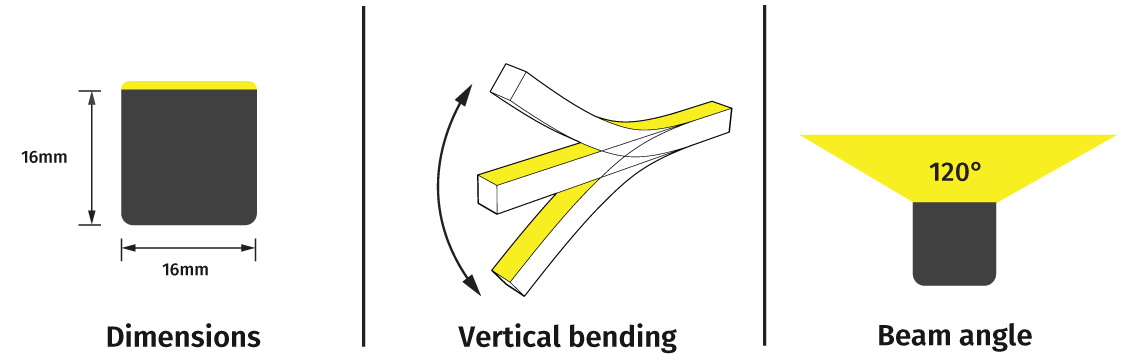

Specifications

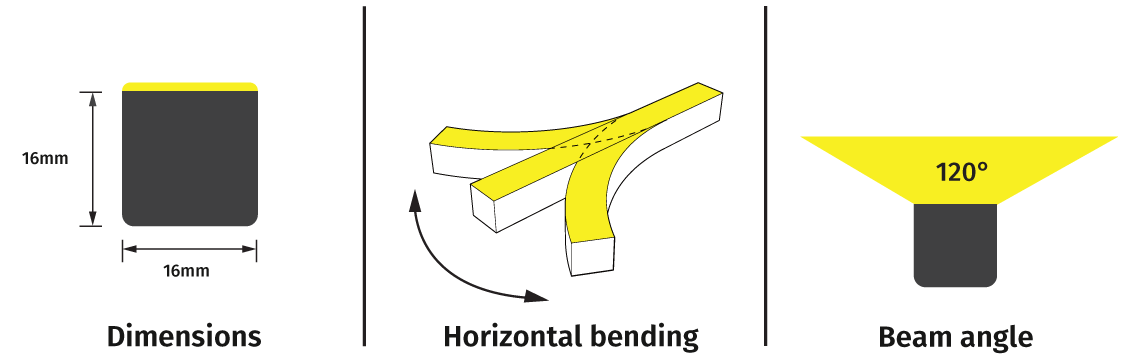

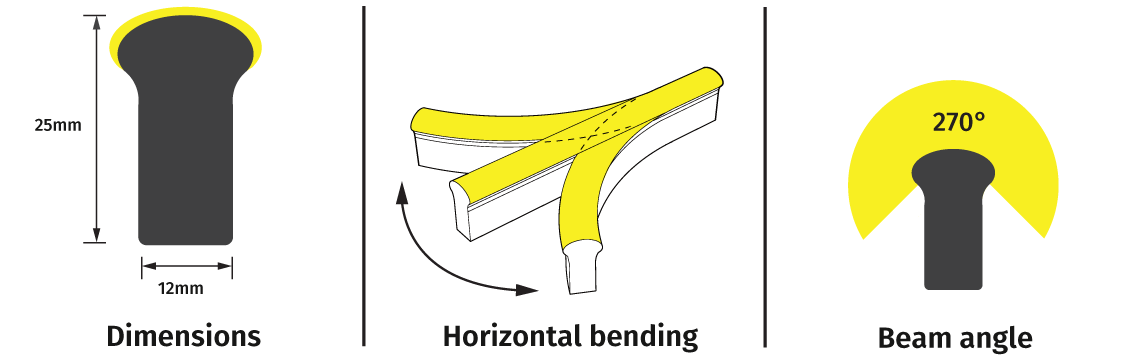

| Available styles | Five options: S1 / S2 / S3 / S4 / S5 |
| Available bending | Horizontal (S1 / S2 / S3) / Vertical (S4 / S5 |
| Available beam angle | 120° (S1 / S2 / S4) / 210° (S5) / 270° (S3) |
| Available protocols | DMX (5-pin) / SPI (3-pin) / Non-addressable single colour (2-pin), tuneable white (3-pin), or RGBW (5-pin) |
| LED source | Epistar SMD LED 5050 |
| Colour | RGBW (4000K) |
| LED lifetime | 70,000 hours L70 @ 25°C / 50,000 hours L70 @ 50°C |
| Body material | Silicone |
| Minimum bendable diameter | 80mm |
| IK rating | IK08 |
| IP rating | IP68 (wet location submersible <2m) |
| Temperature range | Installation: 0°C to 50°C / Operating: -40°C to 55°C |
| Connector type | IP68 twist lock connector |
| Dimension | 21mm x 11.5mm |
| Warranty | 3-year return-to-base manufacturer warranty as standard. Talk to us to arrange longer periods |
Neon Flex DMX 24V
| RGBW lumens output | 214 lm/m |
| Control protocol | DMX |
| Input voltage | 24V DC |
| Power consumption | 18W/m |
| LED count | 70 LEDs/m |
| Pixel quantity | 10 pixels/m |
| LED per pixel unit | 7 LEDs |
| Pixel unit length | 100mm |
| Max run length | Single feed: 8m / Double feed 16m |
Neon Flex SPI 12V
| RGBW lumens output | 246 lm/m |
| Control protocol | SPI – UCS8904 |
| Input voltage | 12V DC |
| Power consumption | 17W/m |
| LED count | 60 LEDs/m |
| Pixel quantity | 20 pixels/m |
| LED per pixel unit | 3 LEDs |
| Pixel unit length | 50mm |
| Max run length | Single feed: 4m / Double fed 8m |
(Refer to datasheet for detailed information and technical data relating to individual style and protocol combinations.)
Resources
NEON FLEX data sheet
NEON FLEX DMX PIXEL installation guide
NEON FLEX SPI PIXEL installation guide
NEON FLEX NON-ADDRESSABLE installation guide
NEON FLEX series images
