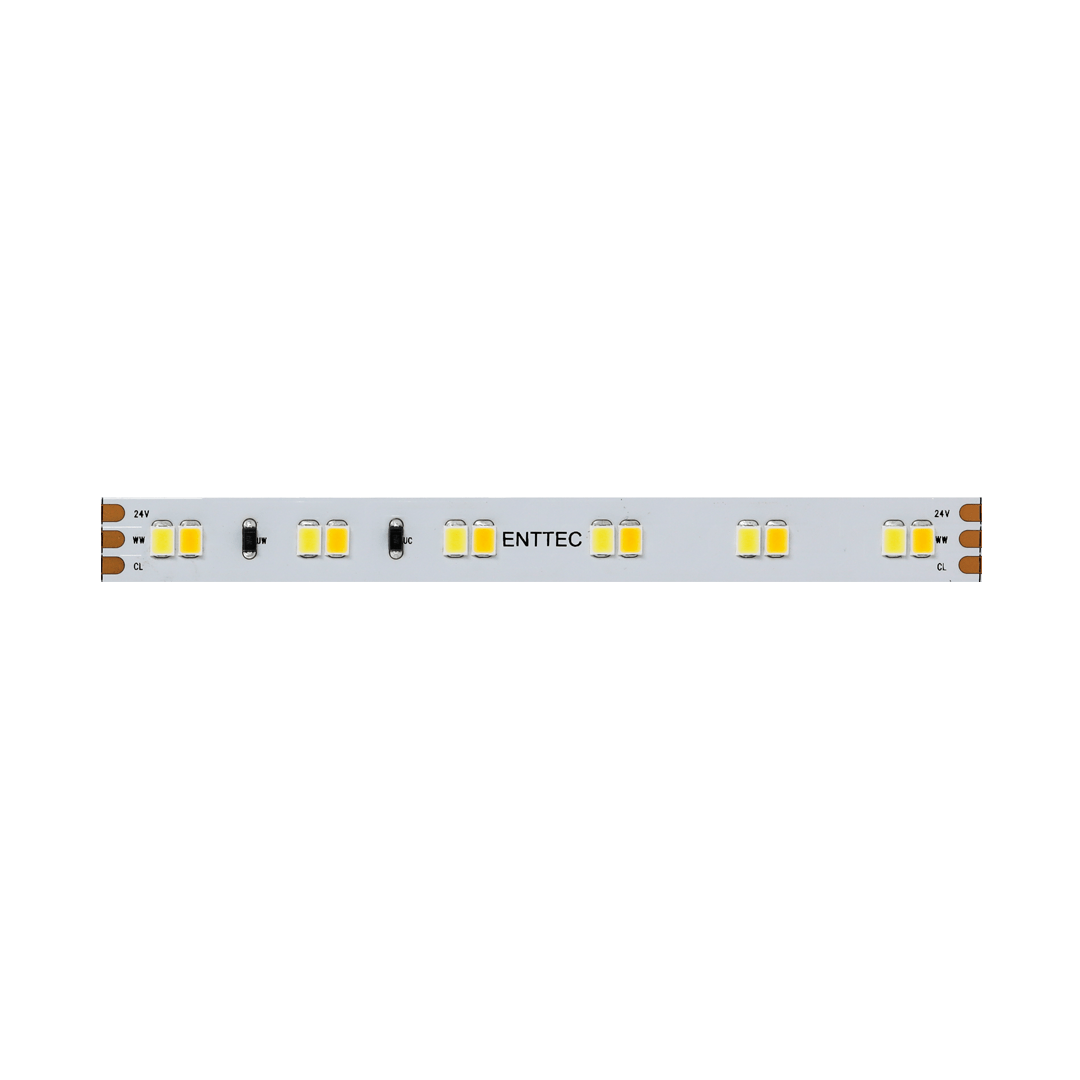

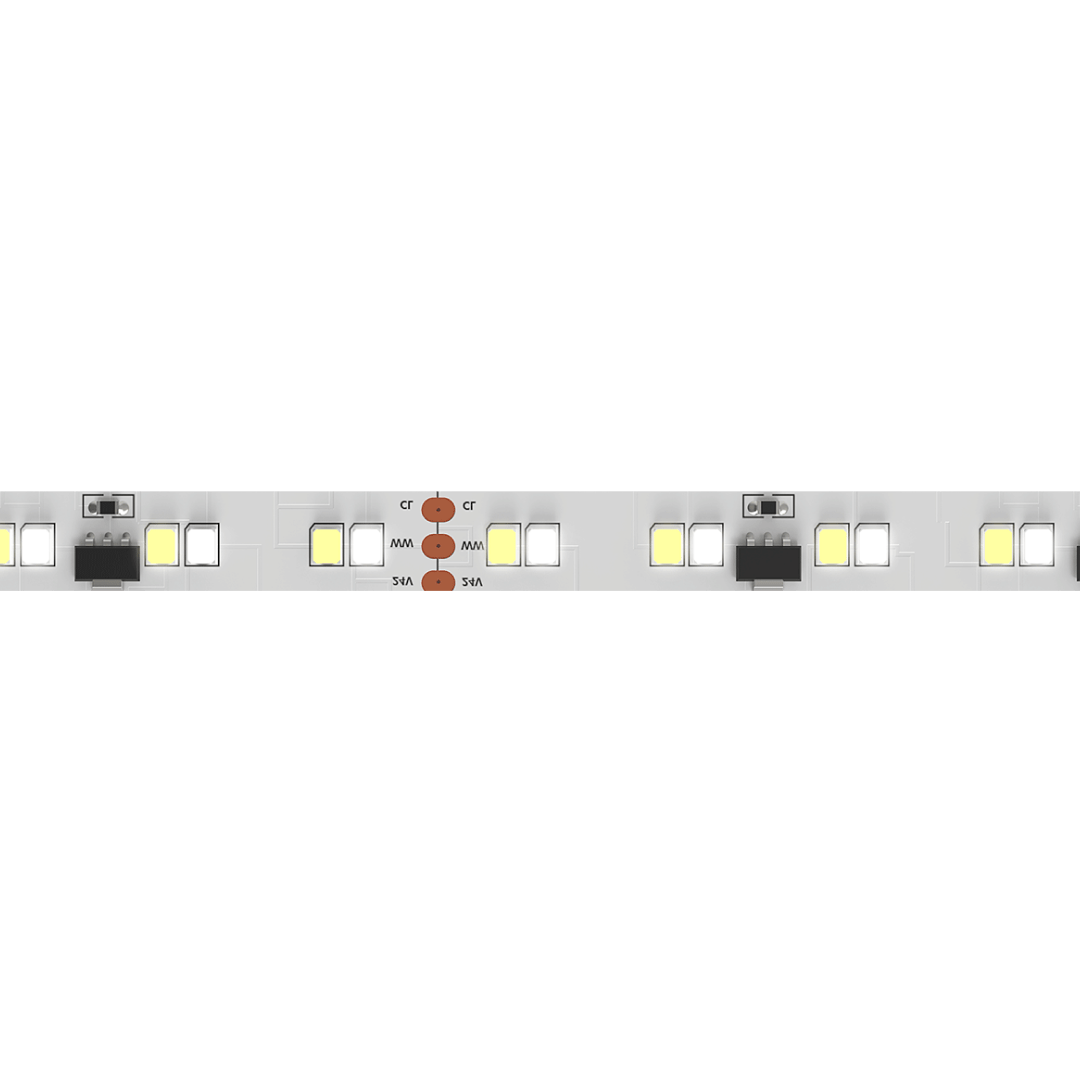

9CY CTA LED tape (10m)

SKU: 9CY-10

ENTTEC designs and manufactures a complete range of high-quality, high-output LED strips to suit any desired mood or effect. CTA tape is colour temperature adjustable, allowing you to achieve your required setting.


24V CTA range

9CY is a 24V CTA LED Tape, which allows variations between 3000K to 5500K color temperature range.

CTA lumen capacity

You can drive this CTA tape at multiple colour temperature ranges. The maximum at 3000K is 488 lumens per metre, and the maximum at 5500K is 570 lumens per metre.

Input current and wattage

Maximum input current rating is 0.49 A per metre, which equals 2.45 A for 5-metre length. 9CY consumes a maximum of 11.8W per metre, and has a maximum continuous length of 9.2 metres.

DC PowerW/mLED QuantityProduct FamilyProduct CodeColour#colspan#Lm/mInput Current 1MInput Current 5MIPReel LengthStrip WidthCuttableMaximum Continuous Length
24V9.6120/m9CY9CY2CTA3000K – 5500K420+4200.4A2A2010m11mm100mm13m



Compatible with

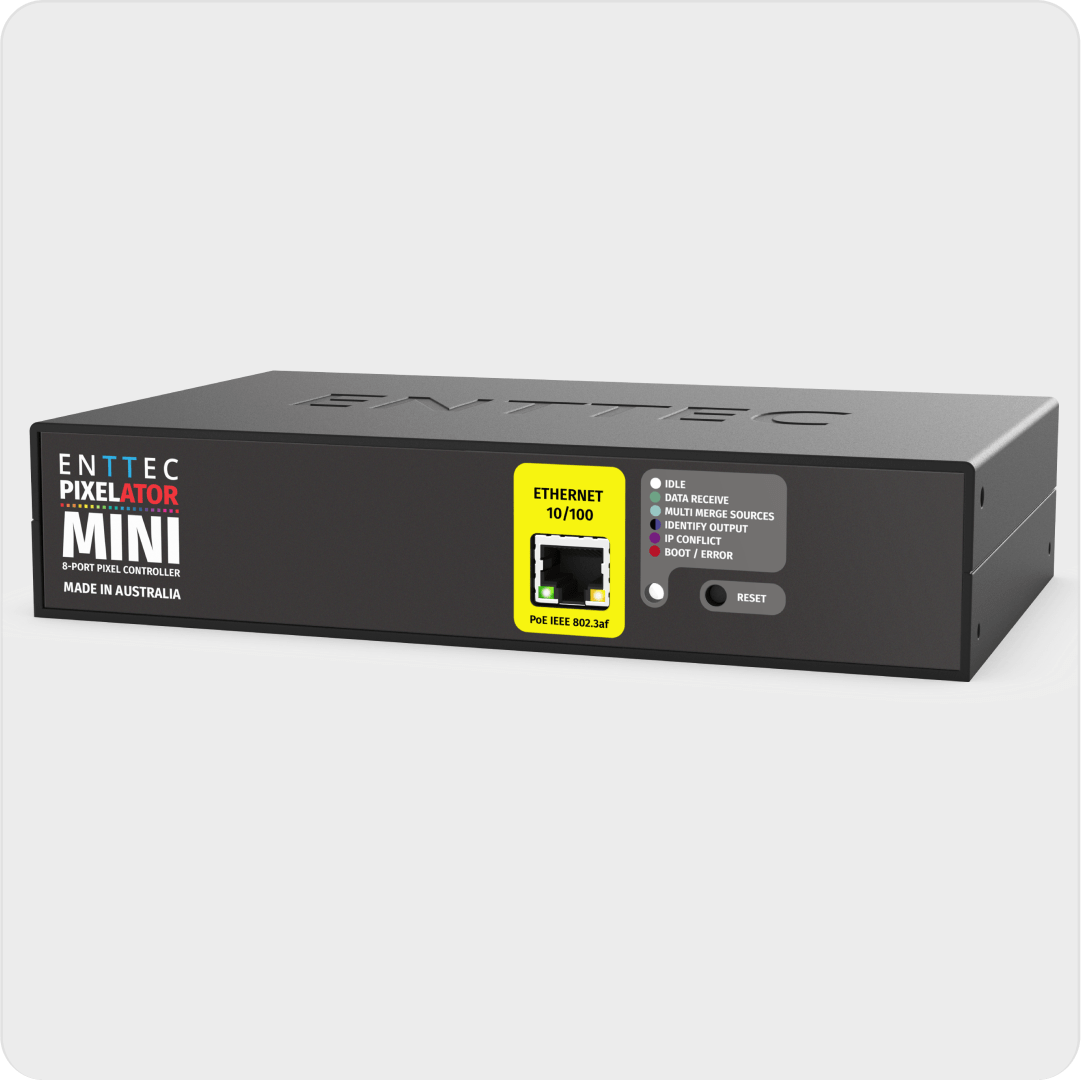

Compatible controllers
