ODE MK3
With 2 Universes of Ethernet to DMX conversion featuring Art-RDM support, Power over Ethernet (PoE) or a flexible 12-24v DC input, the ODE MK3 allows for fast deployment of DMX systems compatible with a wide range of devices.
The ultimate Power Over Ethernet DMX interface
The ODE MK3 is a robust, reliable, installation-grade, Ethernet to DMX converter engineered to connect DMX fixtures to your Ethernet network infrastructure. Now you can expand your lighting project to the next level.
With 2 Universes of bi-directional eDMX to DMX conversion and Art-RDM support, the ODE MK3 is compatible with a wide range of devices and allows for fast deployment of your DMX system. Simply connect, configure and take control!
Additionally, this Ethernet to DMX/RDM gateway is packed with installer-friendly features for a speedy installation and configuration, all managed through a web UI – and contained in a compact, portable form factor.

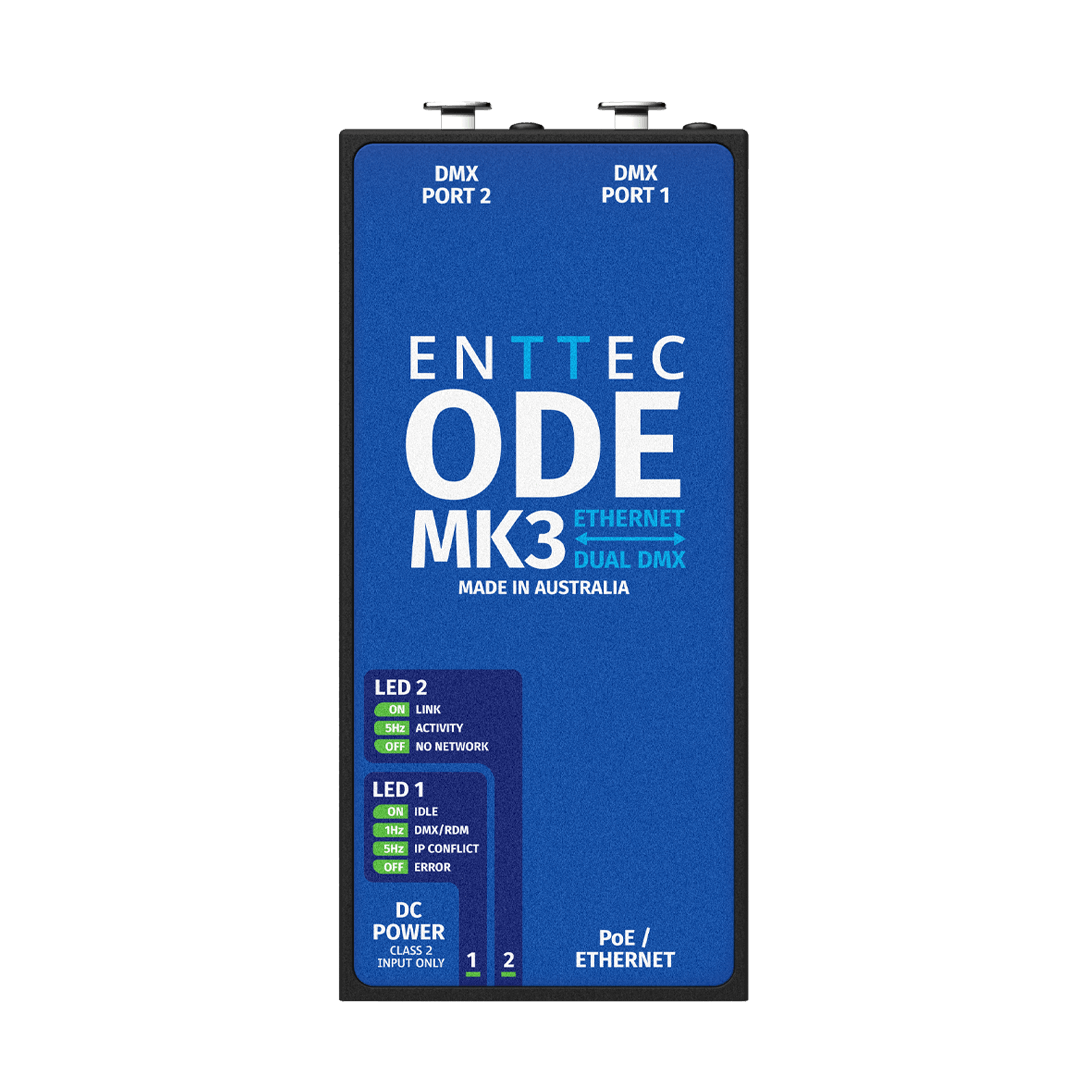

The ODE MK3’s LED status system lets you know exactly what your device is doing
The ENTTEC ODE MK3’s status system is designed to offer real-time feedback on its operational state through LED indicators. These indicators provide essential information about the device’s connectivity, activity, and DMX status, helping users troubleshoot and monitor the system.
Specifications

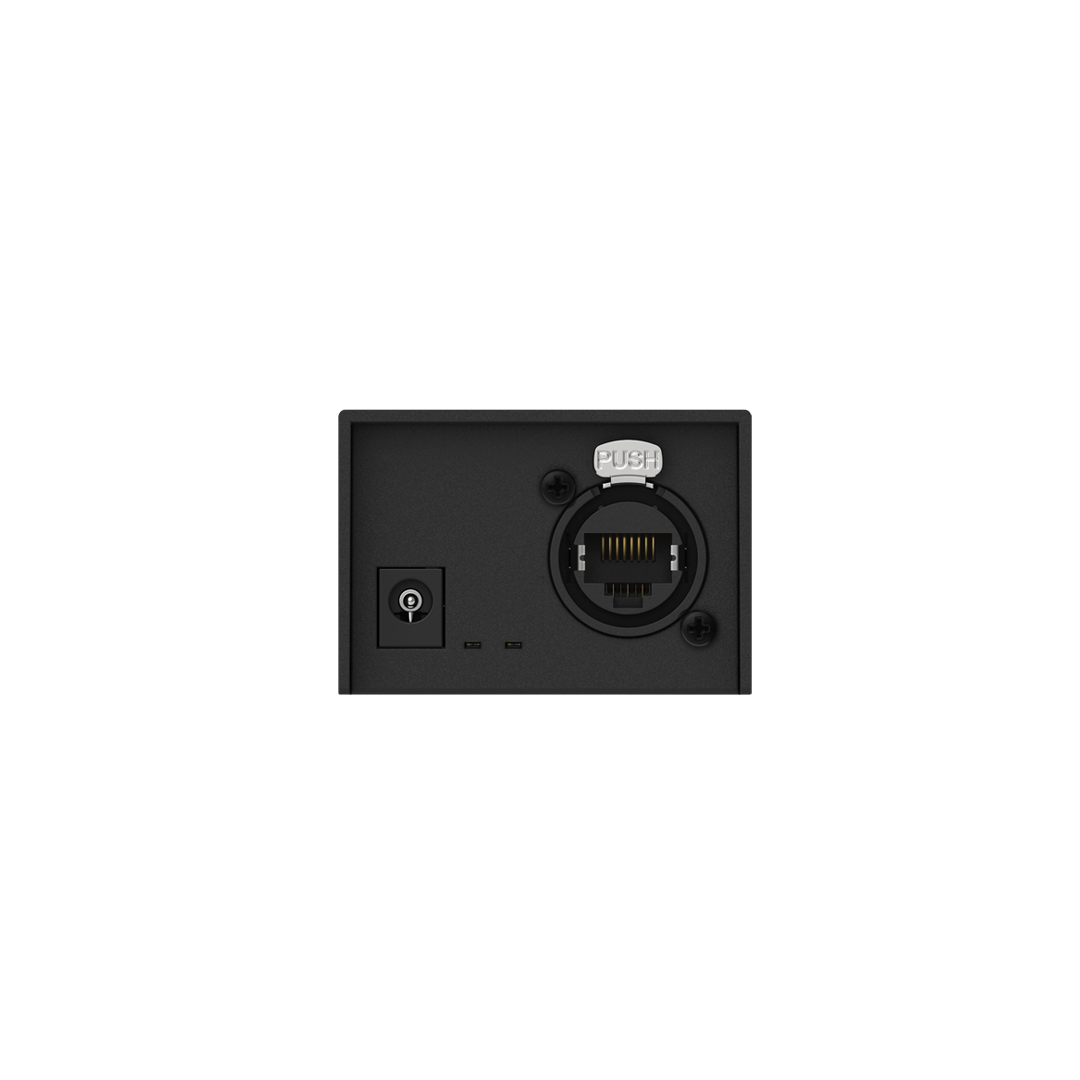

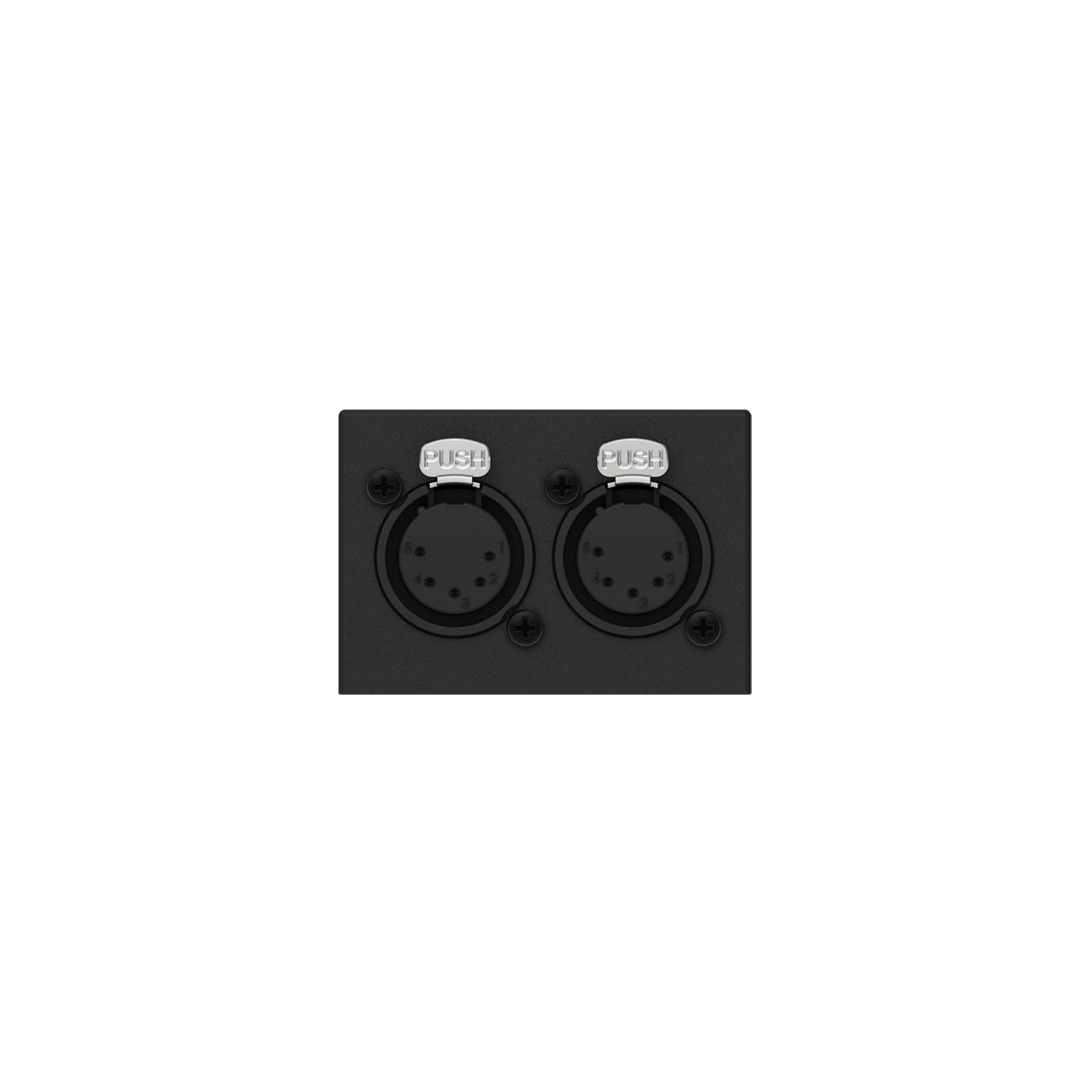

| Connectors | 1* EtherCon Port (RJ45) 2* Bi-directional DMX (Female XLR5) 1* Power Input (DC Jack) |
| IP rating | IP20 |
| LED indicators | Status indicator Network Link / Activity indicators |
| eDMX protocols | Art-Net, Art-RDM, sACN, ESP |
| DMX protocols | USITT DMX512-A ANSI E1.20 RDM |
| DMX & RDM timings | Break time: 300ms Mark after Break (MAB): 15ms |
| Max. channels | 2 Universes (1024ch) |
| Max. refresh rate | 44FPS |
| Art-Net merging | 2 Sources |
| Configuration software | Web Browser |
| Firmware updates | Web Browser |
| Input voltage | 12V to 24V DC |
| Max. current draw | 580mA |
| Max. power draw | 7W |
| Power over Ethernet (PoE) | IEEE 802.3af |
| Environmental operating temperature | 0°-50°C 32°-122°F |
| Environmental operating humidity | 5- 95% (non-condensing) |
| Body material | ABS Plastic |
| Unit dimensions | 129x58x40 mm |
| Unit weight | 0.10kg / 0.22lbs |
| Shipping dimensions | 235 * 159 * 69 mm |
| Shipping weight | 0.45kg / 0.99lbs |
| Warranty | 3-year return to base manufacturer warranty |
