PLink Injector

Our 2-Universe PLink Injector has been engineered to work alongside your Pixelator to extend your LED pixel layout over long distances.

    SKU: 73-545

    The smart way to connect your Pixel lights

    The PLink Injector has been engineered to work as part of an ENTTEC Pixelator Series set up to make it fast, easy and affordable for you to control LED pixel strips or pixel dots over long distances. The injector features an external DC power supply as well as high-power screw terminal connectors. In addition, they are ideal for custom shape pixel LED installations and their scalable design is perfect for large projects. You can choose from the 5V or 12-24V options depending upon your layout. Then simply re-inject power from an external source, and you’re away! Depending on your applications, our Plink Injector comes also in a rugged IP66-rated version, ideal for extreme weather conditions and outdoor installations.
    • Each PLink port can drive up to 340 RGB individual pixels (2 DMX universes)
    • The PLink is designed for use with the Pixelator system
    • External DC power supply
    • Data extensions up to 300 meters over Cat5/Cat5e/Cat6 cable
    • Small, light and easy to hide design
    • Scalable design for large projects
    • Ideal for custom shape pixel LED installations
    • High power screw terminal connectors
    • Easy wiring using Cat5/Cat5e/Cat6 standard connections

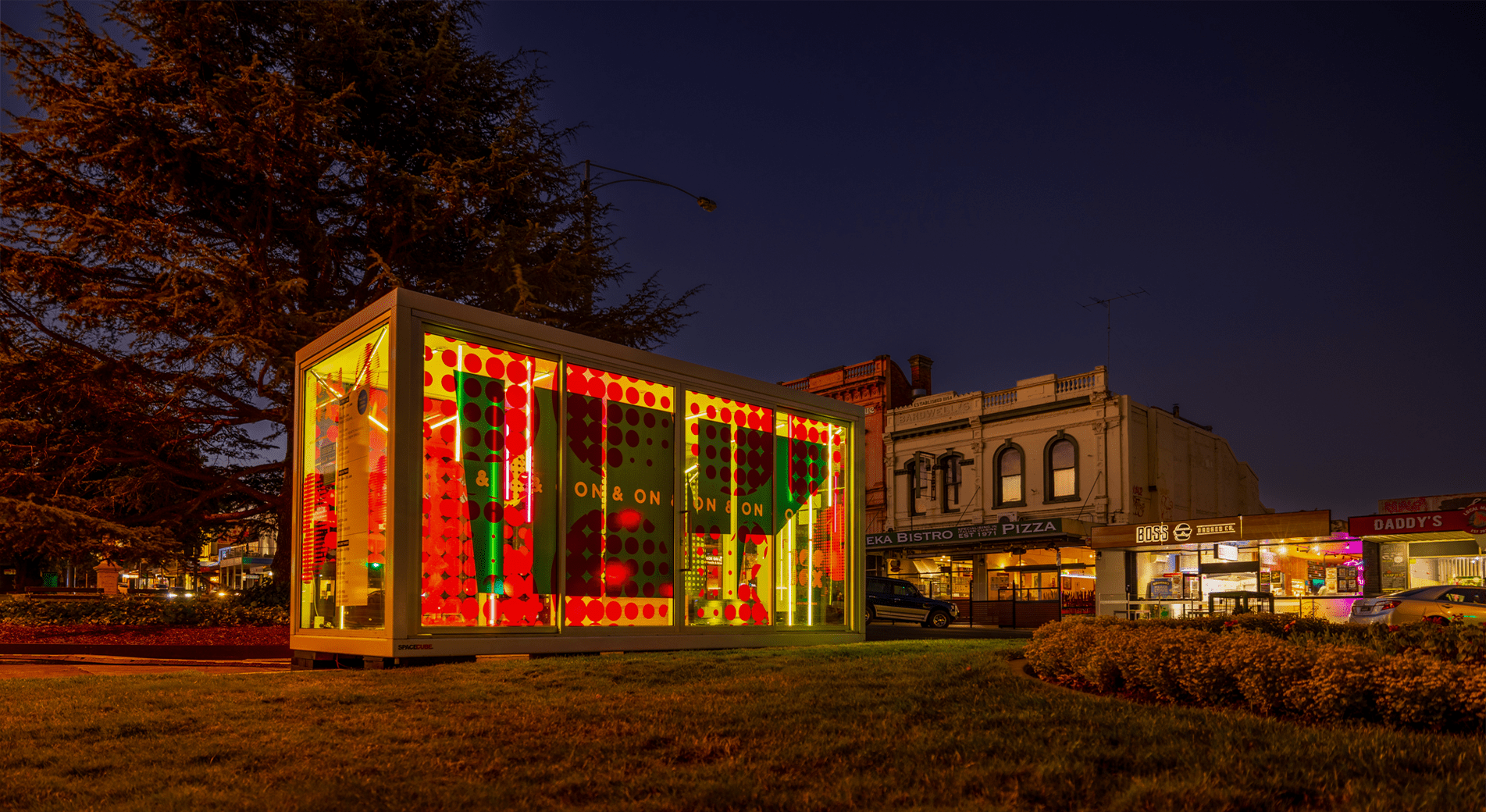

    Pixelator installation.

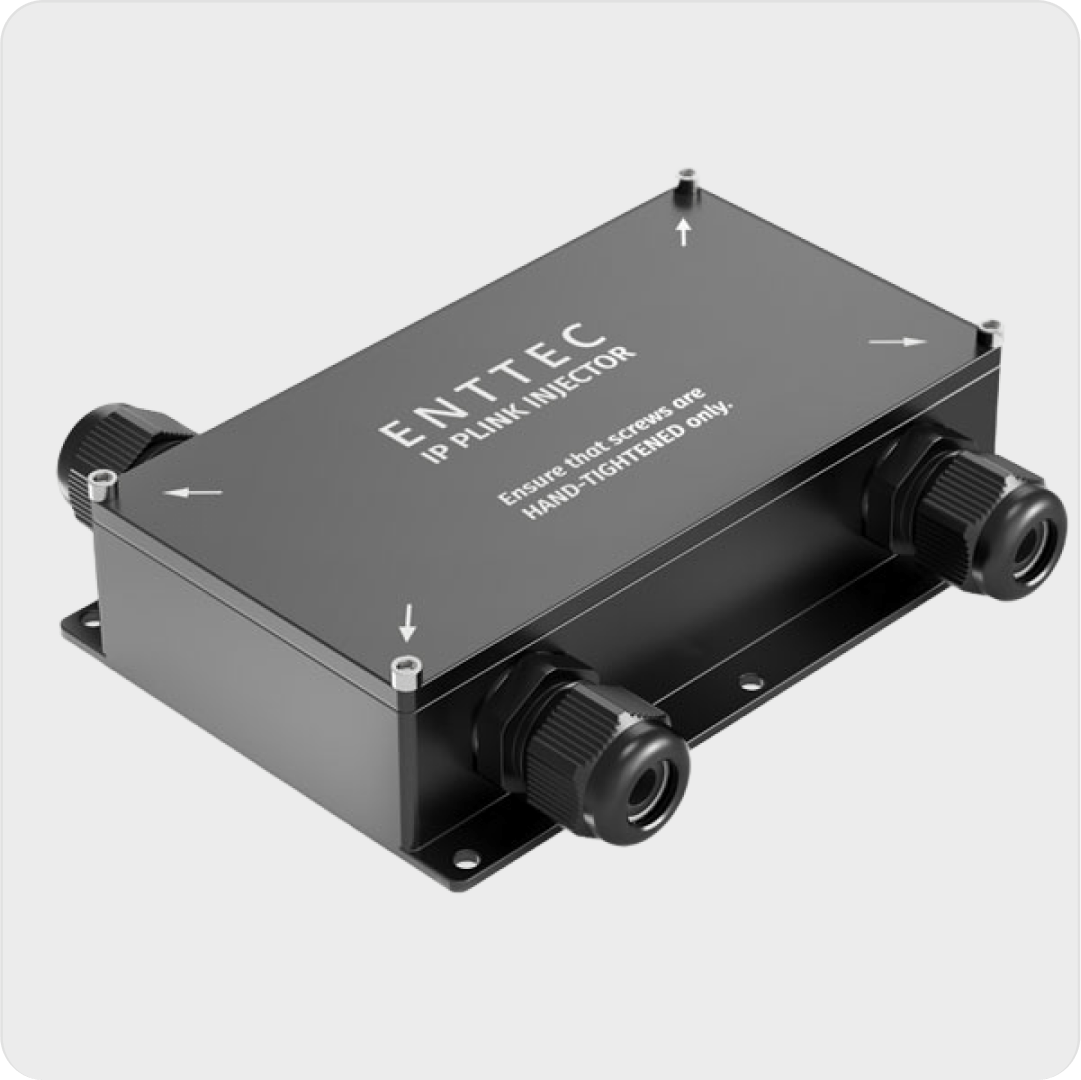

    Each IP PLink Injector can control up to 680 individual RGB 8-bit or 512 RGBW pixels (4 DMX Universes) when connected to a Pixelator family controller.



    		 The IP Plink can be powered from the same PSU as your LED pixels with an operational voltage range selectable with a jumper to be either 5V or 12-24V DC.


    Data extensions up to 300 metres over Cat5/Cat5e/Cat6 cable between the Pixelator and IP PLink (maximum 3m cable length from the IP PLink to data.



    		 Compact, robust, easy-to-hide design constructed from machined 6061 aluminium with a black anodized finish.


    -10°C to 65°C operating temperature (14°F to 149°F).



    		 IP66 Ingress protection.


    Scalable design for large projects.



    		 10A rated current throughput.


    Watertight glands x 3 (∅4mm-8mm).



    		 Easy wiring using internal rising clamp screw terminals and RJ45 connectors.


    3-year warranty



    • Each IP PLink Injector can control up to 680 individual RGB 8-bit or 512 RGBW pixels (4 DMX Universes) when connected to a Pixelator family controller.

    • The IP Plink can be powered from the same PSU as your LED pixels with an operational voltage range selectable with a jumper to be either 5V or 12-24V DC.

    • 1500V isolation between any individual DMX port protects your DMX source and lighting fixtures from power surges and stray voltages on the DMX line by blocking stray voltage from crossing to other DMX chains.

    • Data extensions up to 300 metres over Cat5/Cat5e/Cat6 cable between the Pixelator and IP PLink (maximum 3m cable length from the IP PLink to data.

    • Compact, robust, easy-to-hide design constructed from machined 6061 aluminium with a black anodized finish.

    • -10°C to 65°C operating temperature (14°F to 149°F).

    • IP66 Ingress protection.

    • Scalable design for large projects.

    • 10A rated current throughput.

    • Watertight glands x 3 (∅4mm-8mm).

    • Easy wiring using internal rising clamp screw terminals and RJ45 connectors.

    • 3-year warranty

    Datasheet

    Pixel Link Datasheet

    Documentation

    Pixel Link Installation Guide

    Visuals

    Pixel Link CAD File

    • Precision engineered + proudly made in Australia.
    • Choose us for your complete light solutions needs.
    • Customer support is our priority.

    Related products

    Get the most out of your PRODUCTS

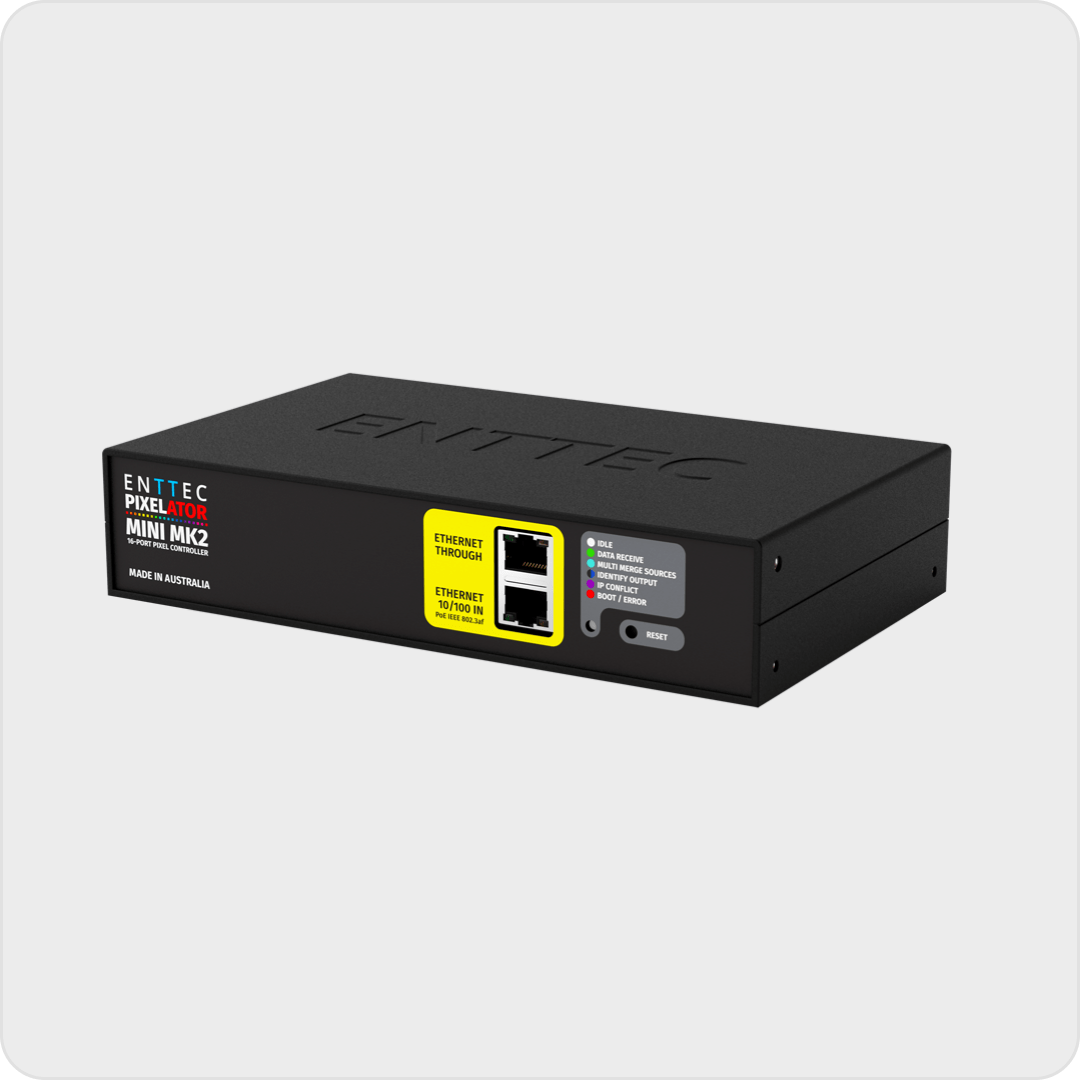

    IP PLink InjectorIP PLink InjectorSMART PXL 40 DOTSMART PXL 40 DOTPixelator Mini – 16-Universe Ethernet to pixel converterPixelator Mini – 16-Universe Ethernet to pixel converterSMART PXL 60 DOTSMART PXL 60 DOTELM (ENTTEC LED MAPPER)ELM (ENTTEC LED MAPPER)
