NA1 white LED strip (10m)

Great for uniform designs or injecting some creative flair to a project.

SKU: 73310-NA1-24V-120-10

Overview
Features
Specifications
Resources

High output white with superior performance

ENTTEC designs and manufactures a complete range of high-quality LED strips to suit any desired mood or effect. NA1 strips deliver high output with 120 LEDs per metre, built on a robust 4oz copper substrate for superior durability and performance. Available in 3000K, 4000K, and 6000K, you can choose the white that suits your project. Ideal for commercial spaces, retail, hospitality, and high-output applications.

Thanks to a high output configuration, NA1 delivers exceptional brightness across all colour temperatures:

3000K (Warm White): 1297 lm/m — soft, inviting ambience ideal for hospitality and residential
4000K (Neutral White): 1445 lm/m — perfect balance for commercial and workspace environments
6000K (Cool White): 1436 lm/m — bright, crisp light for commercial spaces and long runs

Unlike standard 1oz–2oz LED tapes, the NA1 uses a heavy-duty 4oz copper substrate that provides higher current-carrying capacity, reduced voltage drop over long distances, better thermal regulation and LED longevity, and greater mechanical strength and bending reliability. This is a significant upgrade that directly increases the durability and lifespan of your installation.

With CRI > 90, R9 > 50 (natural, vibrant reds), and SDCM < 3 (tight colour uniformity between batches), this strip delivers specification-grade colour quality and true-to-life colour reproduction — especially valuable for hospitality, retail, galleries, and high-end commercial projects requiring consistent, flattering illumination.

With improved electrical efficiency and 4oz copper, the NA1 offers up to 13 m with dual injection (10 m with single injection). These improvements simplify installation layouts and reduce the number of drivers and injection points required.

Fully compatible with ENTTEC’s CVC4 constant-voltage dimmer for smooth dimming, flicker-free fades, and precise brightness control.

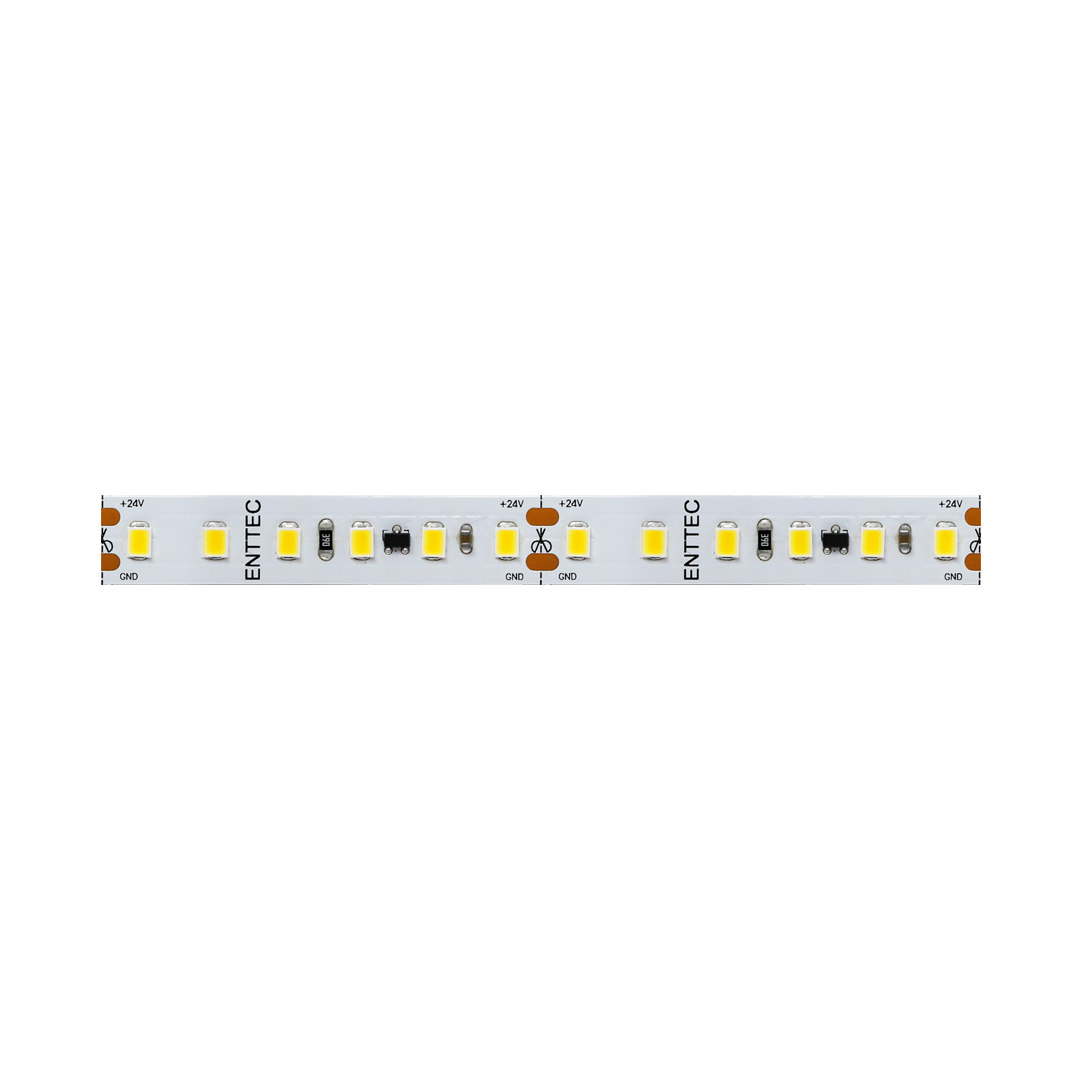

Can be cut every 50mm (6 LEDs) to create virtually any layout. Features easy solder-tab connections, premium white FPC finish, and 3M adhesive backing for quick installation.

Specifications

Connectors	2-pin solder tabs
LED Colour (CCT)	Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating	IP20
Input Voltage	24V
Power/Metre	14.64 Watt/m
Lumens/Metre	1297 Lm/m (3000K) / 1445 Lm/m (4000K) / 1436 Lm/m (6000K)
Efficacy	88.6 Lm/w (3000K) / 98.7 Lm/w (4000K) / 98.09 Lm/w (6000K)
LED type	SMD2835
CRI	> 90
SDCM	< 3
R9	> 50
Beam Angle	120°
LED/Metre	120 LEDs/m
Spacing Between Cuttable Sections	50mm / 1.97″
LEDs per Cutting Unit	6 LEDs
PCB Width	10mm / 0.39″
Bend Radius (Min)	30mm / 1.18″
LED lifetime L70 (6K)	>36,000 hours
Dimming Method	LED dimmable by ENTTEC CVC4 (73926)
Working/Storage Temperature	-30~55°C / 0°C~60°C
Environmental Operating Humidity	5-95% (non-condensing)
Shipping Weight (10m Roll)	0.25Kg / 0.55lbs
Shipping Dimensions (Single Roll)	250mm x 255mm x 30mm / 9.84″ x 10.04″ x 1.18″
Warranty	1 year manufacturer’s return-to-base warranty
