9VLW – RGBW LED tape (10m)

The RGBW LED strip provides ultimate RGBW output and is designed and produced to the highest ENTTEC quality standards.

SKU: 9VLW-10

This high-grade RGBW LED strip provides the ultimate RGBW output thanks to a brilliant design. With high density, power and performance the RGBW LED strip outshines the competition. This is the best RGBW strip you will ever use.

Features

High grade RGBW

Thanks to a brilliant output configuration, 9VLW is the best RGBW tape to ever come out of the ENTTEC LED factory. You’ll experience quality unlike any other tape on the market.

High density

With 60 high quality RGB and White LEDs crafted per metre, this tape outshines the competition.

Power and performance

Highly efficient at less than 17.28W total power consumption per metre. Copper track for effective heat dissipation and long life.

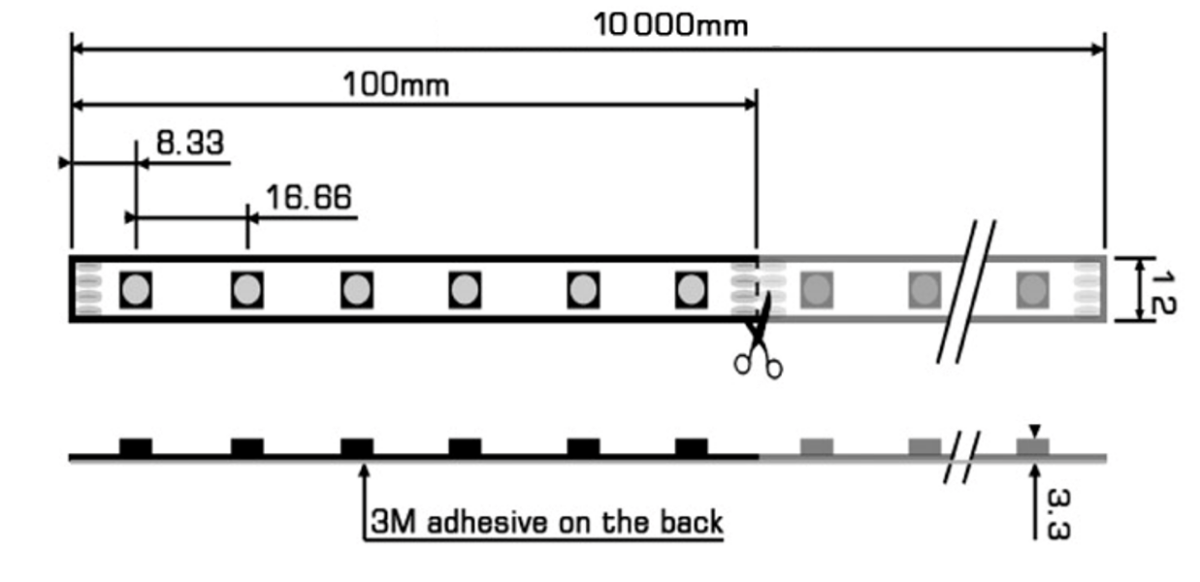

Specifications

DC PowerW/mLED QuantityProduct FamilyProduct CodeColourLm/mInput Current 1MInput Current 5MIPReel LengthStrip WidthCuttableMaximum Continuous Length
24VR : 4.4560/m9VLW9VLWRGBWR : 66R : 0.19AR : 0.93A2010m12mm100mm10m
#rowspan#G : 3.31#rowspan##rowspan##rowspan##rowspan#G : 179G : 0.14AG : 0.69A#rowspan##rowspan##rowspan##rowspan##rowspan#
#rowspan#B : 3.12#rowspan##rowspan##rowspan##rowspan#B : 42.6B : 0.13AB : 0.65A#rowspan##rowspan##rowspan##rowspan##rowspan#
#rowspan#W : 6.4#rowspan##rowspan##rowspan##rowspan#W : 562W : 0.27AW : 1.34A#rowspan##rowspan##rowspan##rowspan##rowspan#
*

To run longer continuous lengths, power must be re-injected at every 10m of the tape. This will mitigate the expected voltage drop.
