NA3 RGBW LED tape (10m)

Great for uniform designs or injecting some creative flair to a project.

1 in stock

SKU: 73310-NA3-24V-RGBW40-60-10

Overview
Features
Specifications
Resources

High-density RGBW performance with complete creative flexibility

ENTTEC designs and manufactures a complete range of high-quality LED strips to suit any desired mood or effect. NA3 RGBW strips deliver rich, vibrant colours and crisp, high-quality white light (4000K) with 60 LEDs per metre, built on a robust 4oz copper substrate for superior durability and performance. Perfect for dynamic lighting designs that shift effortlessly between functional and decorative illumination — ideal for venues, bars, retail accents, architectural colour effects, and entertainment installations.

Each strip delivers rich, vibrant colours and crisp, high-quality white light (4000K) for complete creative flexibility. The balanced neutral white tone offers natural colour rendering and clarity, while the RGB channels allow smooth mixing to produce millions of vivid hues — perfect for dynamic lighting designs that shift effortlessly between functional and decorative illumination. Maximum output of 1111 lm/m total.

The NA3 uses white-body SMD5050 4-in-1 LEDs to deliver more consistent blended output and reduced colour fringing. This results in cleaner colour transitions and more refined visual output — especially beneficial for diffused architectural coves, retail alcoves, hospitality lighting, stage elements, and feature accents.

Unlike standard 1oz–2oz LED tapes, the NA3 uses a heavy-duty 4oz copper substrate that provides higher current-carrying capacity, reduced voltage drop over long distances, better thermal regulation and LED longevity, and greater mechanical strength and bending reliability. This is a significant upgrade that directly increases the durability and lifespan of your installation.

With CRI > 90, R9 > 50 (natural, vibrant reds), and SDCM < 3 (tight colour uniformity between batches), the white channel delivers specification-grade colour quality and true-to-life colour reproduction — especially valuable for hospitality, retail, galleries, and high-end commercial projects requiring consistent, flattering illumination.

With improved electrical efficiency and 4oz copper, the NA3 offers up to 10 m with dual injection (8 m with single injection). These improvements simplify installation layouts and reduce the number of drivers and injection points required.

Fully compatible with ENTTEC’s CVC4 constant-voltage dimmer for smooth dimming, flicker-free fades, and precise brightness control.

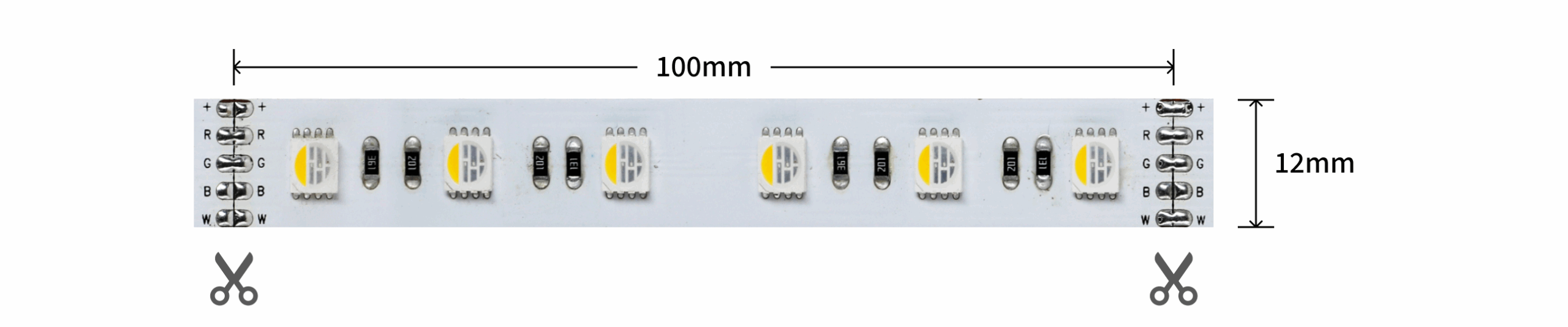

Can be cut every 100mm (6 LEDs) to create virtually any layout. Features easy solder-tab connections, premium white FPC finish, and 3M adhesive backing for quick installation.

Specifications

Connectors	5Pin solder tabs
LED Colour (CCT)	RGBW (4000K)
IP Rating	IP20
Input Voltage	24V
Power/Metre	18 Watt/m
Lumens/Metre	1111 Lm/m
Efficacy	61.72 Lm/w
PCB Colour	White
LED type	SMD5050
CRI	> 90
SDCM	< 3
R9	> 50
Beam Angle	120 °
LED/Metre	60 LEDs/m
Spacing Between Cuttable Sections	100mm / 3.94″
LEDs per Cutting Unit	6 LEDs
PCB Width	12mm / 0.47″
Bend Radius (Min)	30mm / 1.2″
LED lifetime L70 (6K)	>36,000 hours
Dimming Method	LED dimmable by ENTTEC CVC4 (73926)
Working/Storage Temperature	-30~55°C / 0°C~60°C
Environmental Operating Humidity	5-95% (non-condensing)
Shipping Weight (10m Roll)	0.25Kg / 0.55lbs
Shipping Dimensions (Single Roll)	250mm x 255mm x 30mm / 9.84″ x 10.04″ x 1.18″
Warranty	1 year return to base manufacturer warranty
