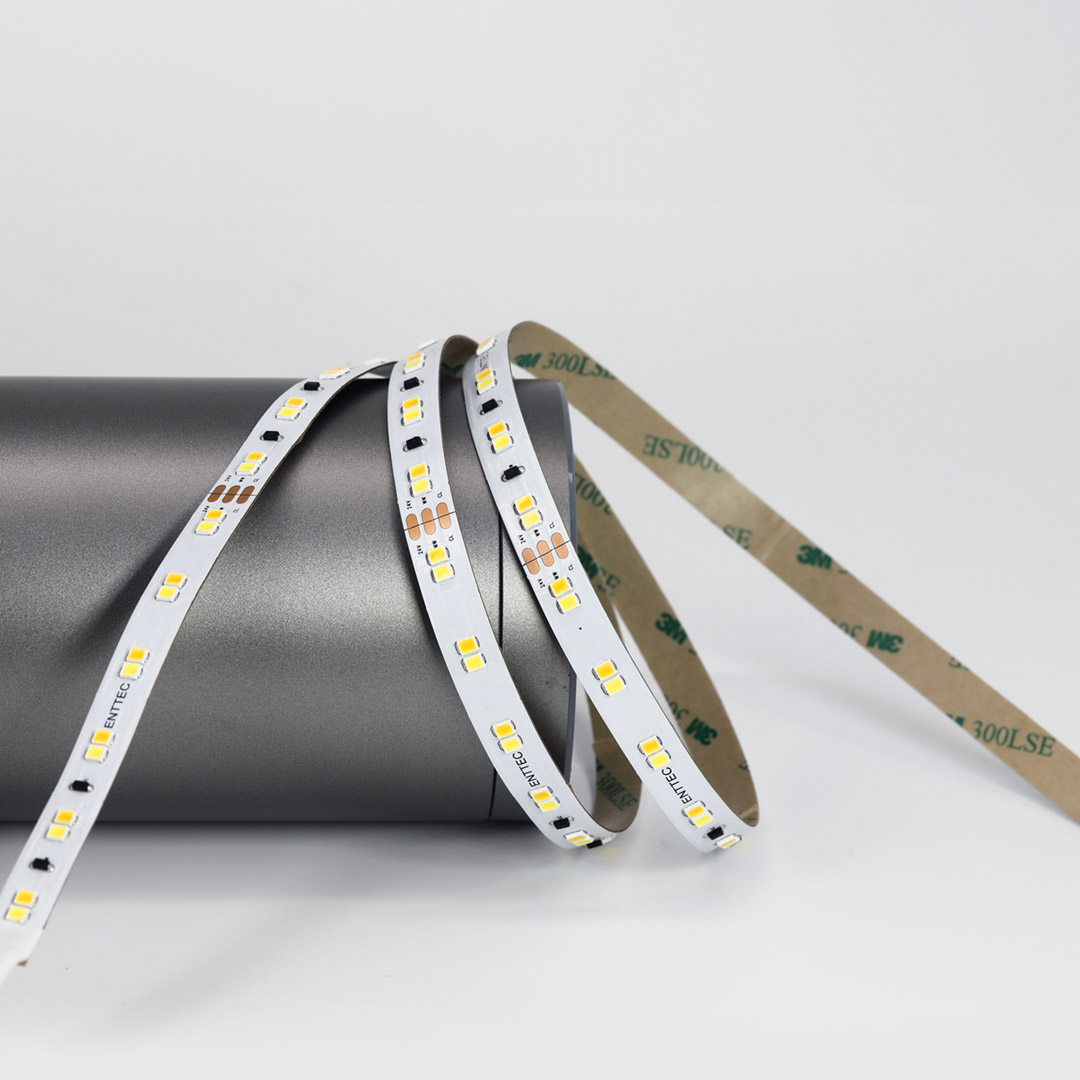

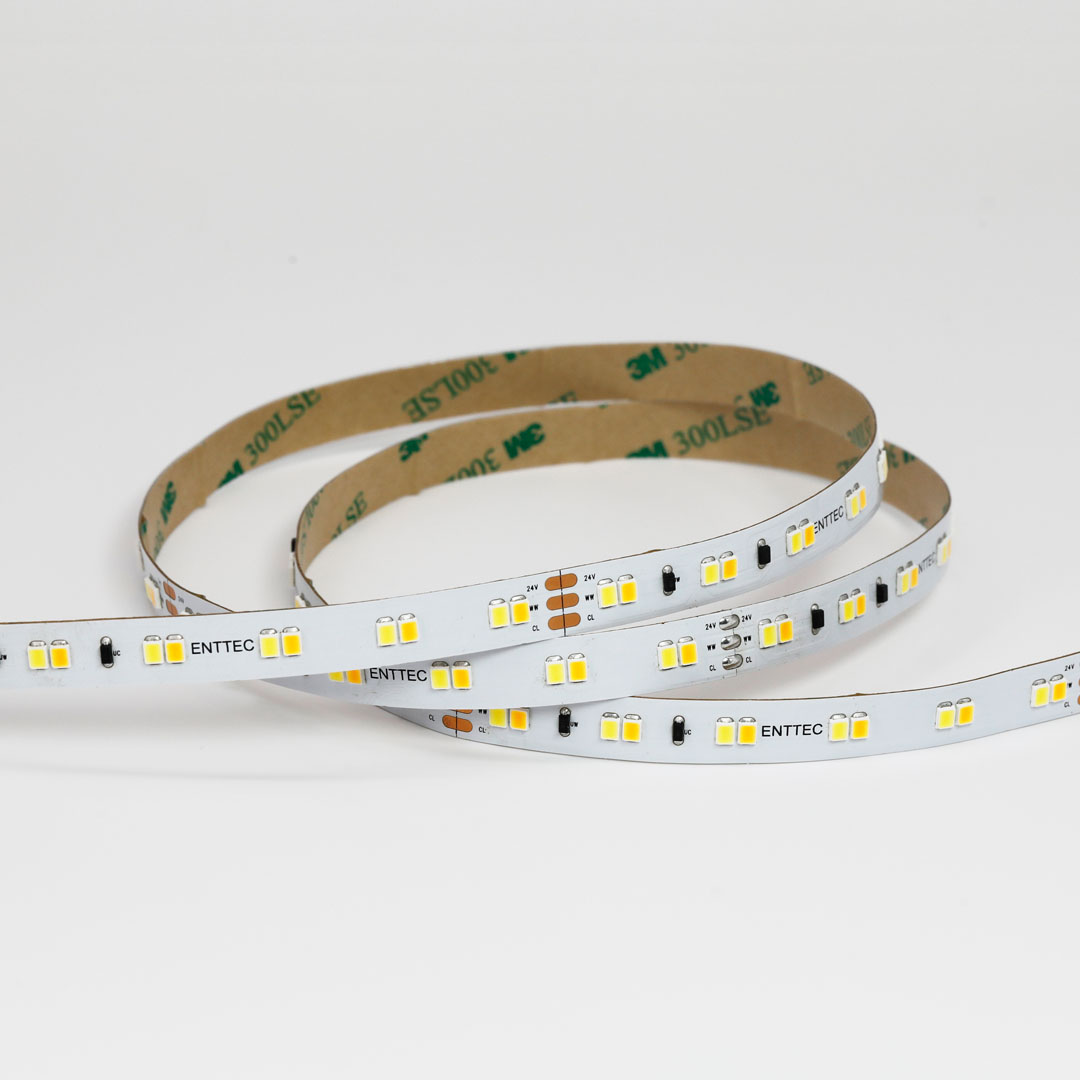

NA2 tunable white LED tape (10m)

Great for uniform designs or injecting some creative flair to a project.

1 in stock

SKU: 73310-NA2-24V-WW30-120-10

Overview
Features
Specifications
Resources

Colour temperature adjustable LED strip with superior performance

ENTTEC designs and manufactures a complete range of high-quality LED strips to suit any desired mood or effect. NA2 tunable white strips deliver the highest output in the range with 120 LEDs per metre, built on a robust 4oz copper substrate for superior durability and performance. Adjustable from 3000K to 5500K, you can precisely control the colour temperature to suit any environment. Ideal for hospitality, residences, offices, museums, and adaptable multi-purpose spaces.

The tunable white (3000K–5500K) range gives the freedom to precisely adjust colour temperature: from warm, ambient tones to bright, daylight-white light. This flexibility allows you to shape the perfect atmosphere for any environment, whether enhancing comfort in a lounge or boosting focus in a workspace. Maximum output of 1803 lm/m – the highest in the NA series.

Unlike standard 1oz–2oz LED tapes, the NA2 uses a heavy-duty 4oz copper substrate that provides higher current-carrying capacity, reduced voltage drop over long distances, better thermal regulation and LED longevity, and greater mechanical strength and bending reliability. This is a significant upgrade that directly increases the durability and lifespan of your installation.

With CRI > 90, R9 > 50 (natural, vibrant reds), and SDCM < 3 (tight colour uniformity between batches), this strip delivers specification-grade colour quality and true-to-life colour reproduction, especially valuable for hospitality, retail, galleries, and high-end commercial projects requiring consistent, flattering illumination.

With improved electrical efficiency and 4oz copper, the NA2 offers up to 15m with dual injection (12m with single injection): the longest in the NA series. These improvements simplify installation layouts and reduce the number of drivers and injection points required.

Fully compatible with ENTTEC’s CVC4 constant-voltage dimmer for smooth dimming, flicker-free fades, and precise brightness control.

Can be cut every 100mm (12 LEDs) to create virtually any layout. Features easy solder-tab connections, premium white FPC finish, and 3M adhesive backing for quick installation.

Specifications

Connectors	3-pin solder tabs
LED Colour (CCT)	Tunable White (3000K/5500K)
IP Rating	IP20
Input Voltage	24V
Power/Metre	11.8 Watt/m
Lumens/Metre	1803 Lm/m
Max Efficacy	152.8 Lm/w
PCB Colour	White
LED type	SMD2835
CRI	> 90
SDCM	< 3
R9	> 50
Beam Angle	120°
LED/Metre	120 LEDs/m
Spacing Between Cuttable Sections	100mm / 3.94″
LEDs per Cutting Unit	12 LEDs
PCB Width	10mm / 0.39″
Bend Radius (Min)	30mm / 1.18”
LED lifetime L70 (6K)	>36,000 hours
Dimming Method	LED dimmable by ENTTEC CVC4 (73926)
Working/Storage Temperature	-30~55°C / 0°C~60°C
Environmental Operating Humidity	5-95% (non-condensing)
Shipping Weight (10m Roll)	0.3Kg / 0.66lbs
Shipping Dimensions (Single Roll)	250mm x 255mm x 30mm / 9.84″ x 10.04″ x 1.18″
Warranty	1 year manufacturer’s return-to-base warranty
