LED Pixel Control
Give unique commands to every single LED chip in your installation to remain in complete control of your artistic vision.
About
What is LED pixel control?
LED pixels (also known as addressable or digital LEDs) use SPI (serial peripheral interface) protocols. These protocols enable the synchronous transfer of more than the usual 512 values available in the DMX standard.
For your lights to understand your DMX data, the signal must first convert into the correct SPI protocol. This is the main task of an addressable LED controller.
Furthermore, with support for industry-standard network protocols like Art-Net and sACN, you can manage your controller easily via its intuitive web interface.
Designed and made in Australia, ENTTEC’s precision-engineered LED pixel controllers work with pixel mapping software such as our ELM (ENTTEC LED Mapper) to provide a whole new level of pixel-perfect control and detail at your fingertips.
In particular, one of the most popular ways to control LED pixels is with ENTTEC’s PLink system (short for ‘Pixel Link’).
Compact SPI LED pixel controllers.
Another great way to control LED pixels is with a feature-packed, yet compact, DIN-rail mountable controller. Professional installers love these because they are easy to set up and ideal for tight spaces.
What’s more, they’re really powerful.
Punching well above their weight, these little SPI LED pixel controllers are excellent for dense LED arrays. Compatible with virtually every SPI LED strip available, ENTTEC’s dynamic addressable LED pixel controllers will take any architectural, commercial, artistic or entertainment project to the next level.
Explore our SPI LED pixel controllers
ENTTEC PLink system.
Industry-standard DMX/RDM Ethernet data such as sACN, Art-Net, ESP, or Kling-Net converts into our unique PLink protocol using a Pixelator controller. This data is then sent to a series of PLink Injectors which act as satellites (to overcome data degradation), controlling up to 340 RGB or 256 RGBW pixels each.
Efficient and easy to deploy, the ENTTEC PLink system is specially designed to extend your layout over distances of up to 300m using standard Cat 5e/Cat 6 cable – with every LED pixel perfectly in sync, every time.
Comparison
Pixel Controller comparison

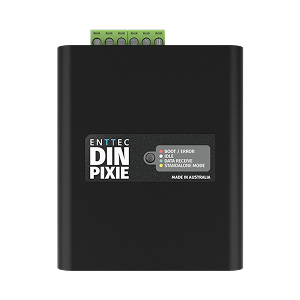

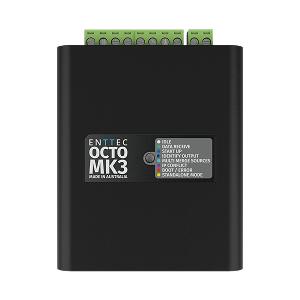

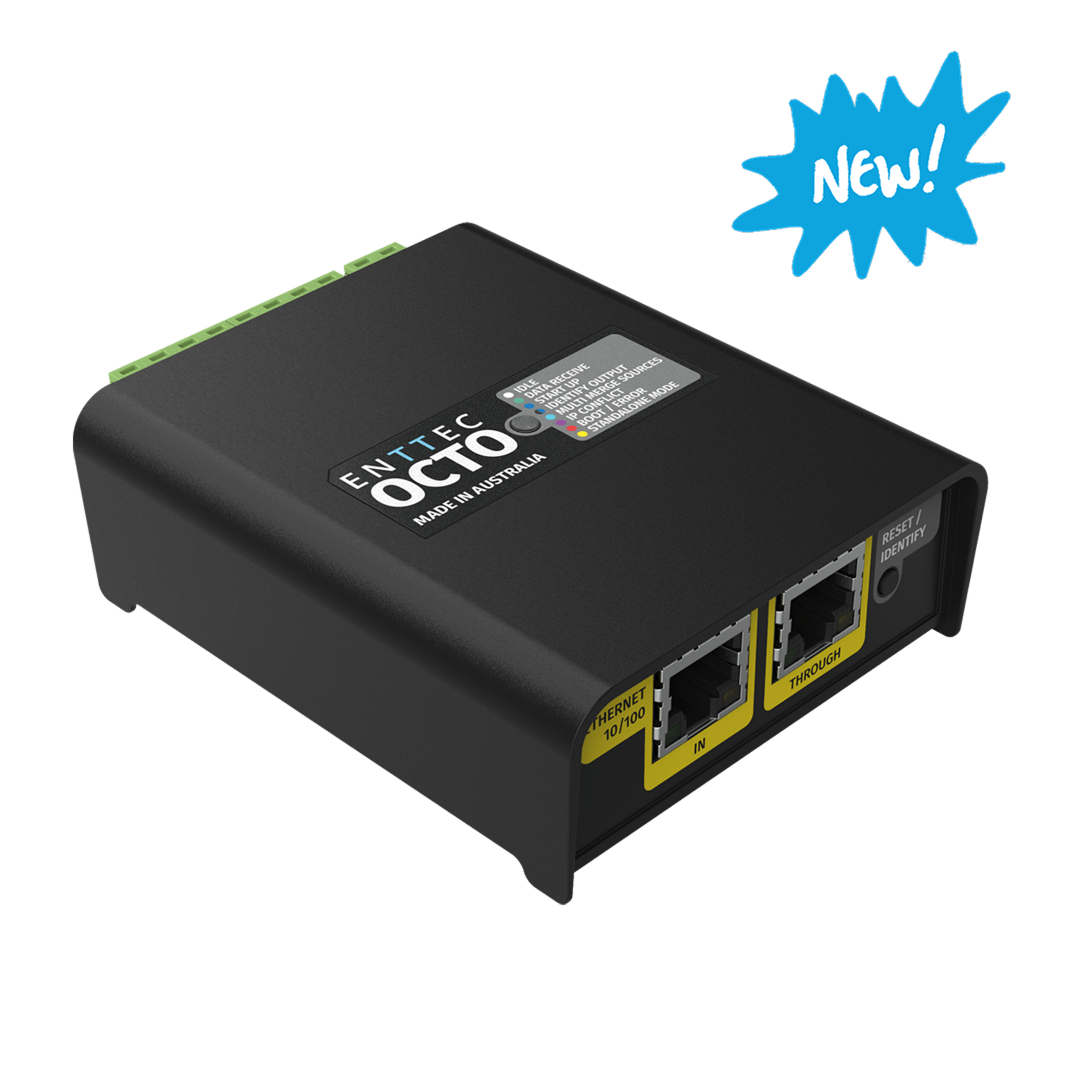

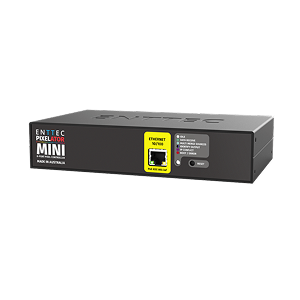

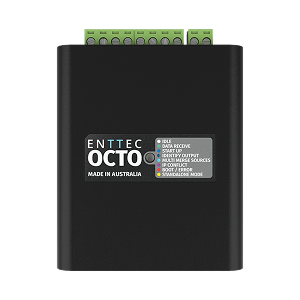

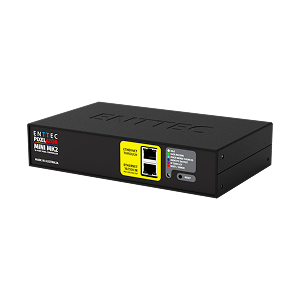

 DIN PIXIE |  OCTO MK2 |  OCTO MK3 |  Pixelator Mini |  Pixelator Mini Mk2 | |
|---|---|---|---|---|---|
| Max Universes | 4U | 16U | 32U | 32U | 128U |
| Max Ports | 2 | 2 | 4 (with split port) | 8 | 16 |
| Universe per Port | 2U | 4U + 4U Overdrive | 6U + 2U Overdrive | 2U + 2U Overdrive | 6U + 2U Overdrive |
| Port Sync | ✗ | ✗ | ✓ | ✗ | ✓ |
| Mounting Option/s | DIN-rail/Surface | DIN-rail/Surface | DIN-rail/Surface | 1U Rack/DIN/Surface | 1U Rack/DIN/Surface |
| Max Cable Distance | 3m to first pixel | 3m to first pixel | 3m to first pixel | 300m with PLink | 300m with PLink |
| Standalone Mode | ✓ | ✓ | ✓ | ✗ | ✗ |
| Custom Protocol Creation | ✓ | ✓ | ✓ | ✓ | ✓ |
| Power Input | 5-48V DC | 4-60V DC | 5-60V DC | 12-24V DC / PoE | 12-24V DC / PoE |
| Best For | Small standalone installs | Small-medium installs | Medium-large installs | Large-scale installs | Large commercial installs |
| Warranty | 3 years | 3 years | 3 years | 3 years | 3 years |
