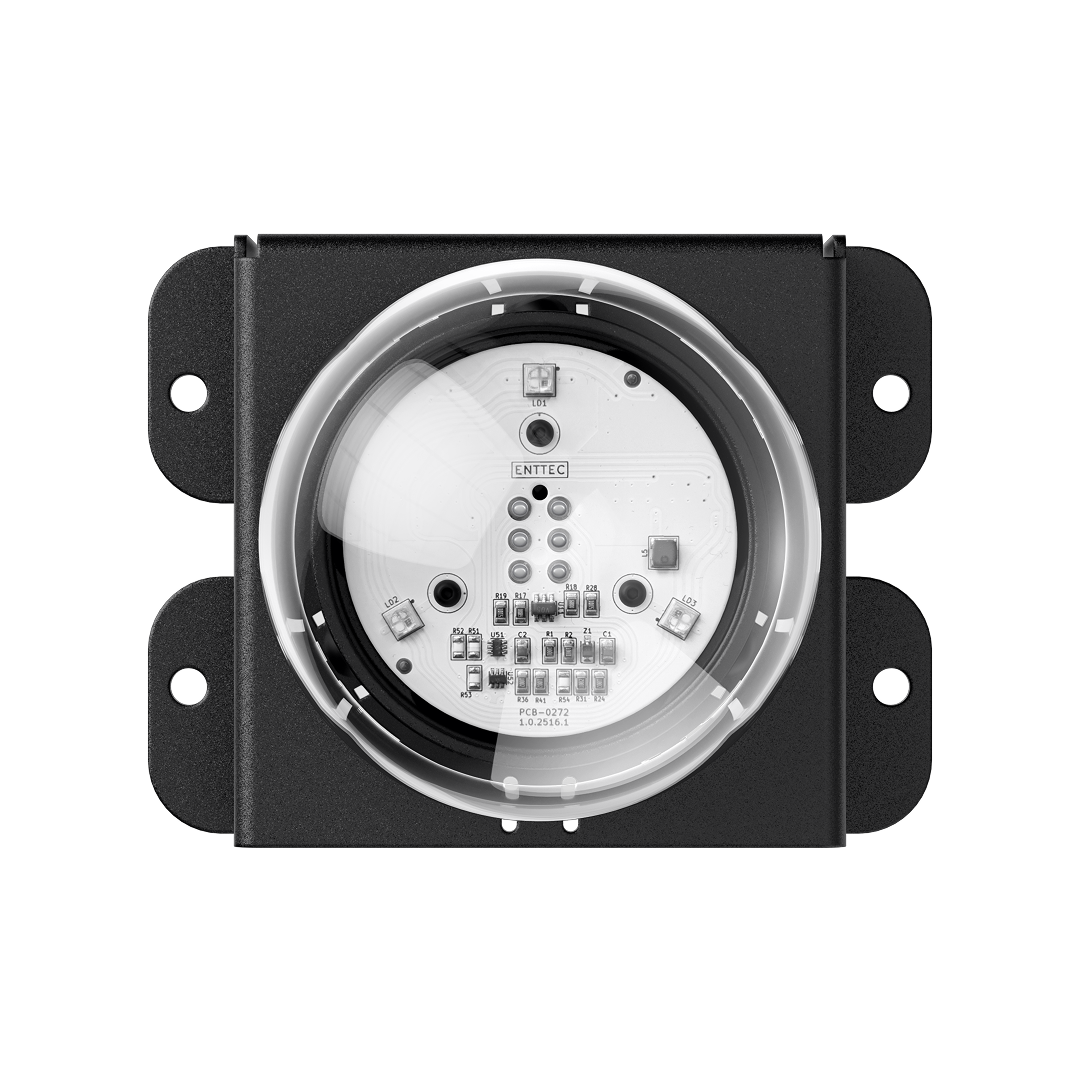

Metal Smart PXL-M58 DMX Dot
Compact, weatherproof DMX pixel delivering the highest lumen output in the ENTTEC dot range. Marine-grade aluminium construction with individually addressable control for architectural facades, commercial installations, and entertainment environments where brightness and durability matter.
High-performance lighting for complex geometries
ENTTEC’s Smart PXL-M58 delivers high lumen output with individually addressable control in a robust marine-grade aluminium housing—engineered for installations where failure isn’t an option. The fully enclosed resin-potted construction protects against moisture, dust, and mechanical stress, meaning your installation keeps performing year after year without maintenance costs eating into your budget.
Each dot can be individually positioned and addressed, enabling virtually any layout—from linear architectural runs to complex three-dimensional forms. The free-form wiring system eliminates the constraints of fixed spacing, so your design isn’t compromised by product limitations. Whether you’re wrapping a curved facade or building intricate media walls, the M58 adapts to your creative vision.
Developed by lighting professionals for professional applications. Contact ENTTEC to discuss customization options tailored to your project.
Brightest in the ENTTEC dot range with 949.5 lumens maximum white output (RGBW combined). Each dot houses high-output RGBW LEDs with 8-bit control via DMX512, delivering millions of color combinations with smooth, flicker-free dimming at 4KHz. LED lifetime exceeds 50,000 hours for long-term reliability.
Engineered for harsh outdoor conditions with IP67-rated protection, IK10 impact resistance, and UV-resistant construction. The robust 58mm anodised aluminium housing with fully potted electronics (sealed in protective resin) protects against moisture, dust, and mechanical damage. Handles 3G vibration and operates reliably from -20°C to 40°C.
Individually housed dots can be positioned with minimal spacing, free from rigid strip constraints. Install them in straight lines, curves, grids, or custom 3D patterns. Optional aluminium mounting bracket provides secure surface mounting. Wide range of matching accessories available including extension cables, power injectors, and custom cable harnesses to complete your system.

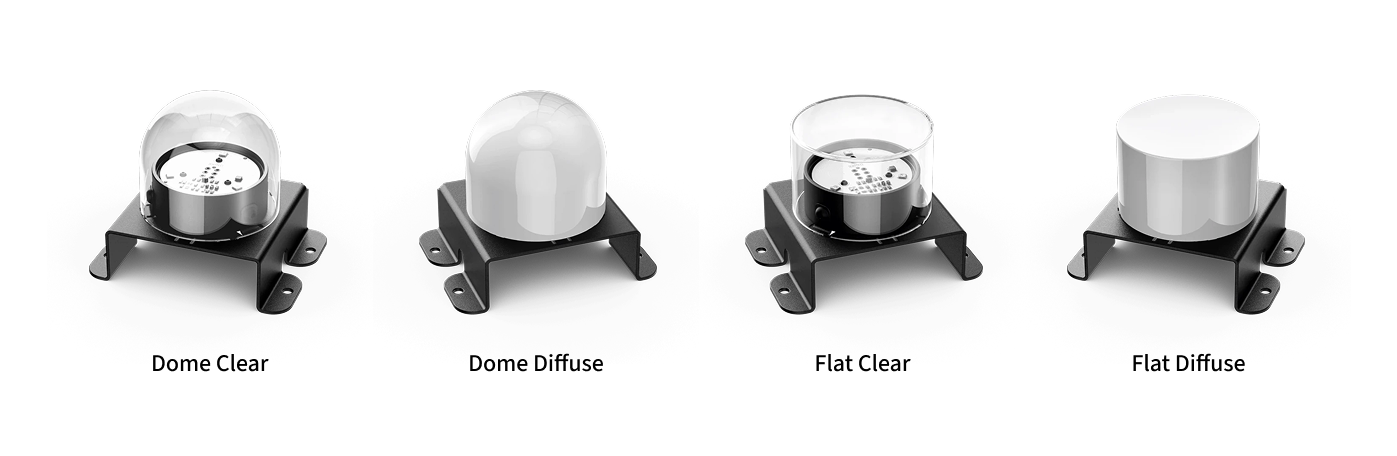

Four diffuser options let you control light spread and appearance. Dome Clear for maximum brightness and visibility, Dome Diffuse for softer glow, Flat Clear for direct illumination, or Flat Diffuse for even light distribution. Swap diffusers to change the effect without replacing dots. Sold separately.

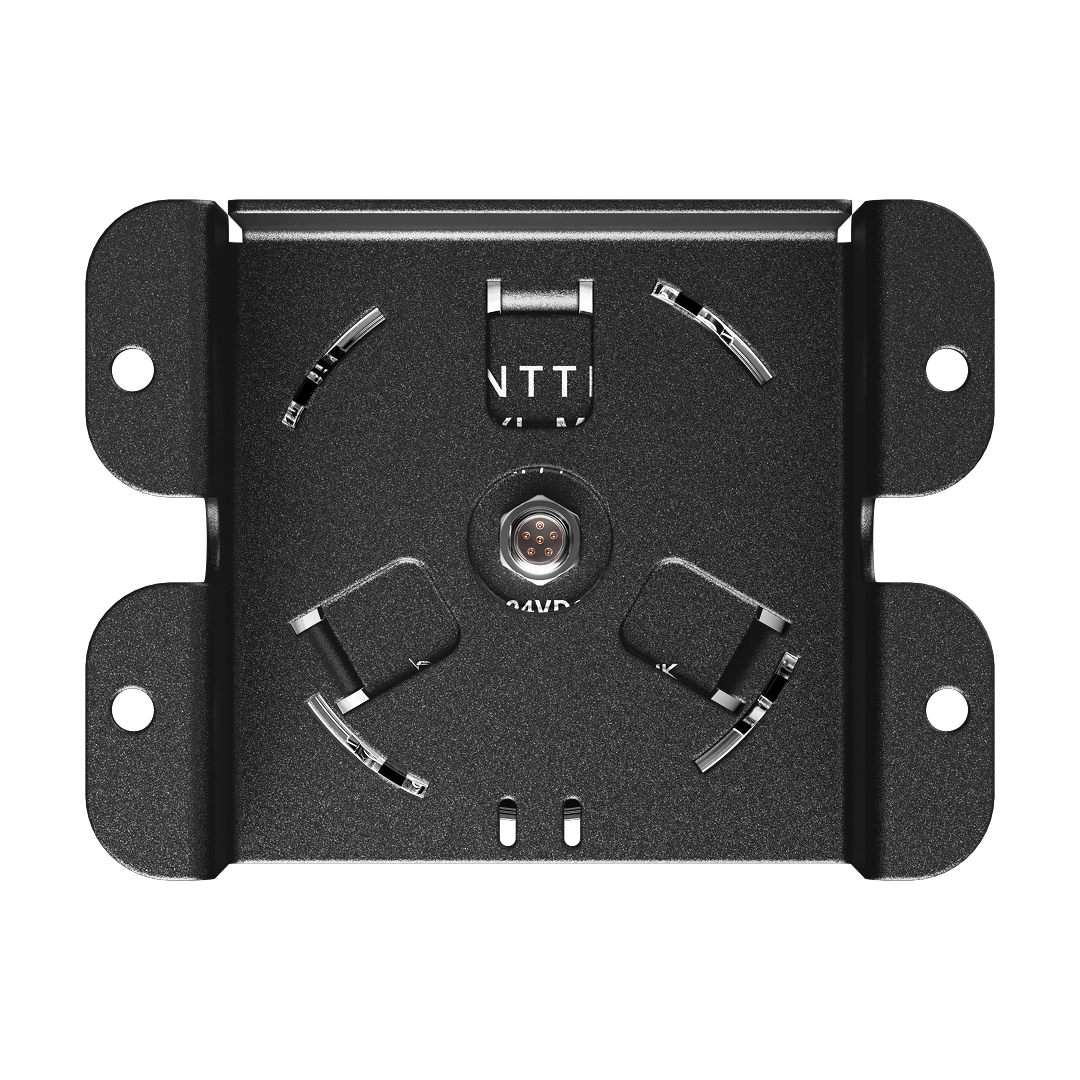

Features industrial-grade IP67 screw-lock connector that stays secure in demanding outdoor and high-moisture environments. The locking mechanism prevents accidental disconnection, while built-in reverse polarity and voltage surge protection guard against wiring errors and power spikes.
Cable harnesses are built to your specifications with weatherproof screw-lock connectors. Each harness uses M8 connectors for the dots and M12 connectors for controller connection. Customize the number of branches, spacing between dots (pitch), lead-in cable length, and choose straight or 95° angled connectors. You can purchase ENTTEC harnesses or source compatible connectors independently.
This ENTTEC product conforms to the following international compliance and safety standards:
Accessories
Mounting and diffuser options

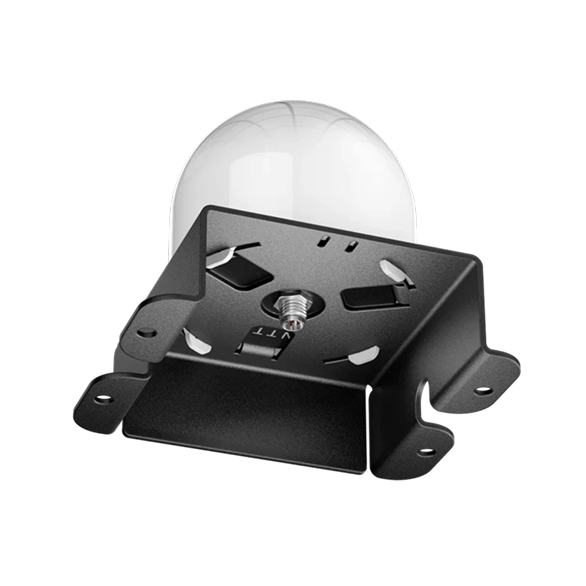

For ease of installation, we offer an aluminium mounting bracket designed for secure surface mounting of the Metal Smart PXL-M58.

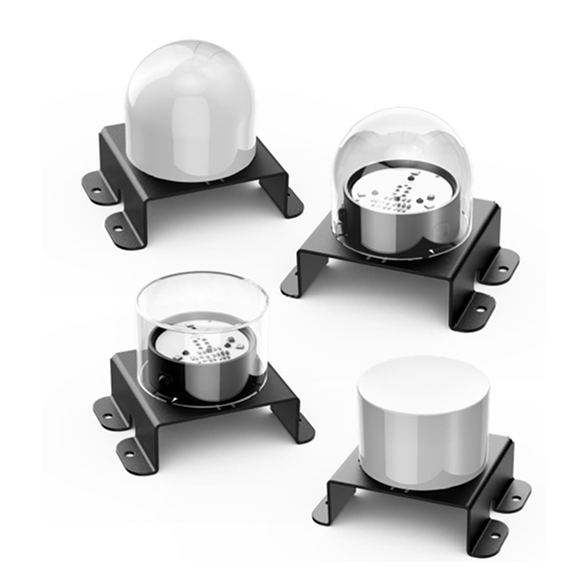

Four interchangeable diffuser options—Dome Clear, Dome Diffuse, Flat Clear, and Flat Diffuse—allow you to tailor light output and visual effects to suit your specific application.
Cable system accessories
We also have a complete range of cable system accessories including custom cable harnesses, extension cables, power injectors, and connectors. Refer to the data sheets below for more information on cable configurations, mounting options, and system specifications.
Let’s get started!
Join us as we unbox the Metal Smart PXL-M58 and take a closer look at what makes it our brightest weatherproof DMX dot yet!

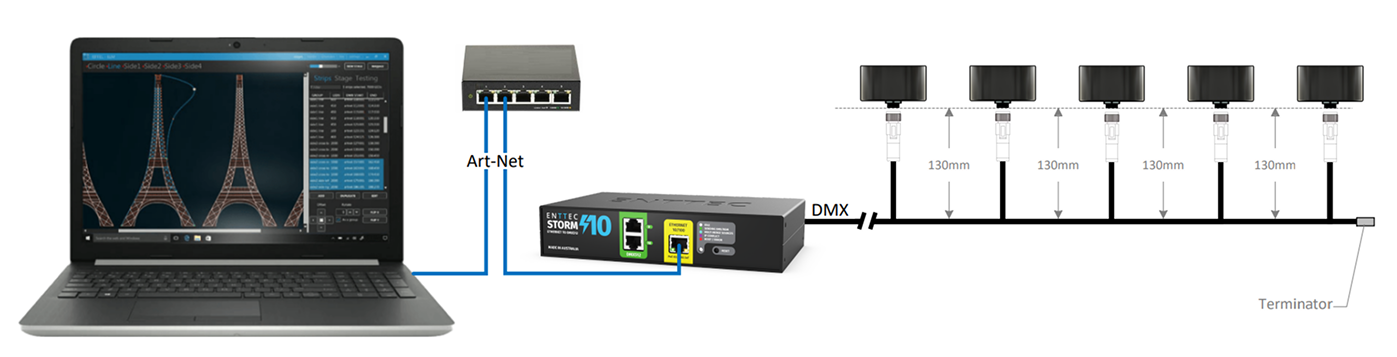

Free-Form Wiring for Flexible Layouts
Smart PXL-M58 dots are supplied as independent units, giving you complete freedom to shape installations without constraint.
Specifications
| Input voltage | 24V |
| Dot connector | M8 (6-Pin, Code A) screwlock male connector |
| Body material | Aluminium anodised |
| Weight | 111.4g/dot only |
| IK rating | IK10 |
| IP rating | IP67 |
| UV resistance | Yes |
| Max operating/Ambient temperature | 40°C |
| Maximum power per dot | 12W |
| Maximum current draw per dot | 500mA |
| Warranty | 3-year return to the base manufacturer warranty |
LED Control
| LED source | 3 pcs RGBW High-power SMD3535 |
| Control protocol | USITT DMX512-A (ANSI E1.11) |
| LED lifetime | 50,000 hrs (L70) |
8-bit RGBW | |
| Channel footprint | 4 DMX slots/dot (Red | Green | Blue | White) |
| Colour resolution | 256⁴ = 4.29 million |
| Dots controllable per DMX universe | 128 dots (DMX512) |
| PWM Frequency | 4KHz |
Lumen Output
| Dot | PXL-M58 |
| Voltage | 24V |
| Lumen (lm) | Red – 232.5 | Green – 274.5 | Blue – 99 | White – 343.5 | White (RGB) – 606 | Max White (RGBW) – 949.5 |
| Efficacy (lm/watt) | Max White (RGBW) – 79.1 |
