ELM (ENTTEC LED MAPPER) 2026 Preview

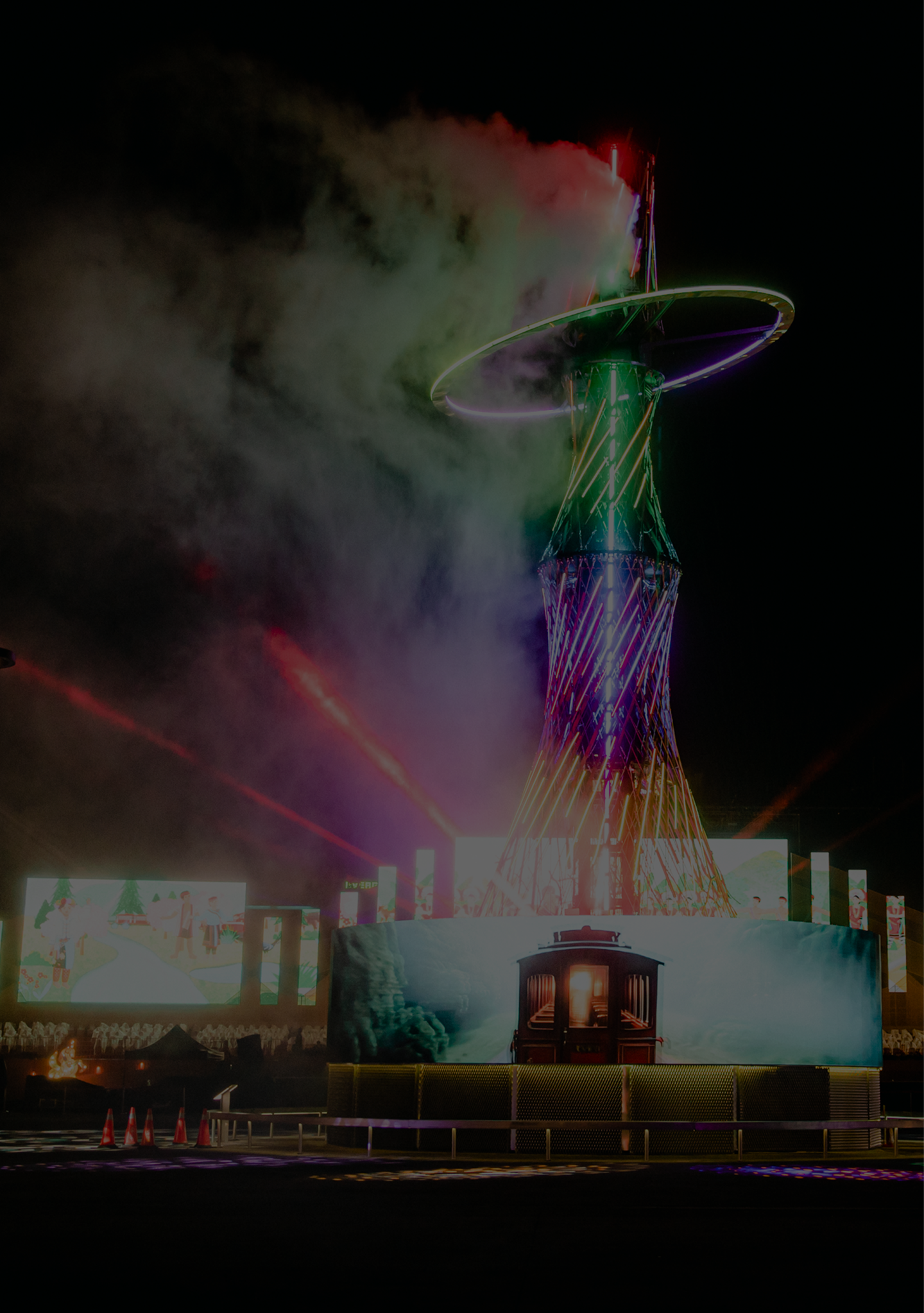

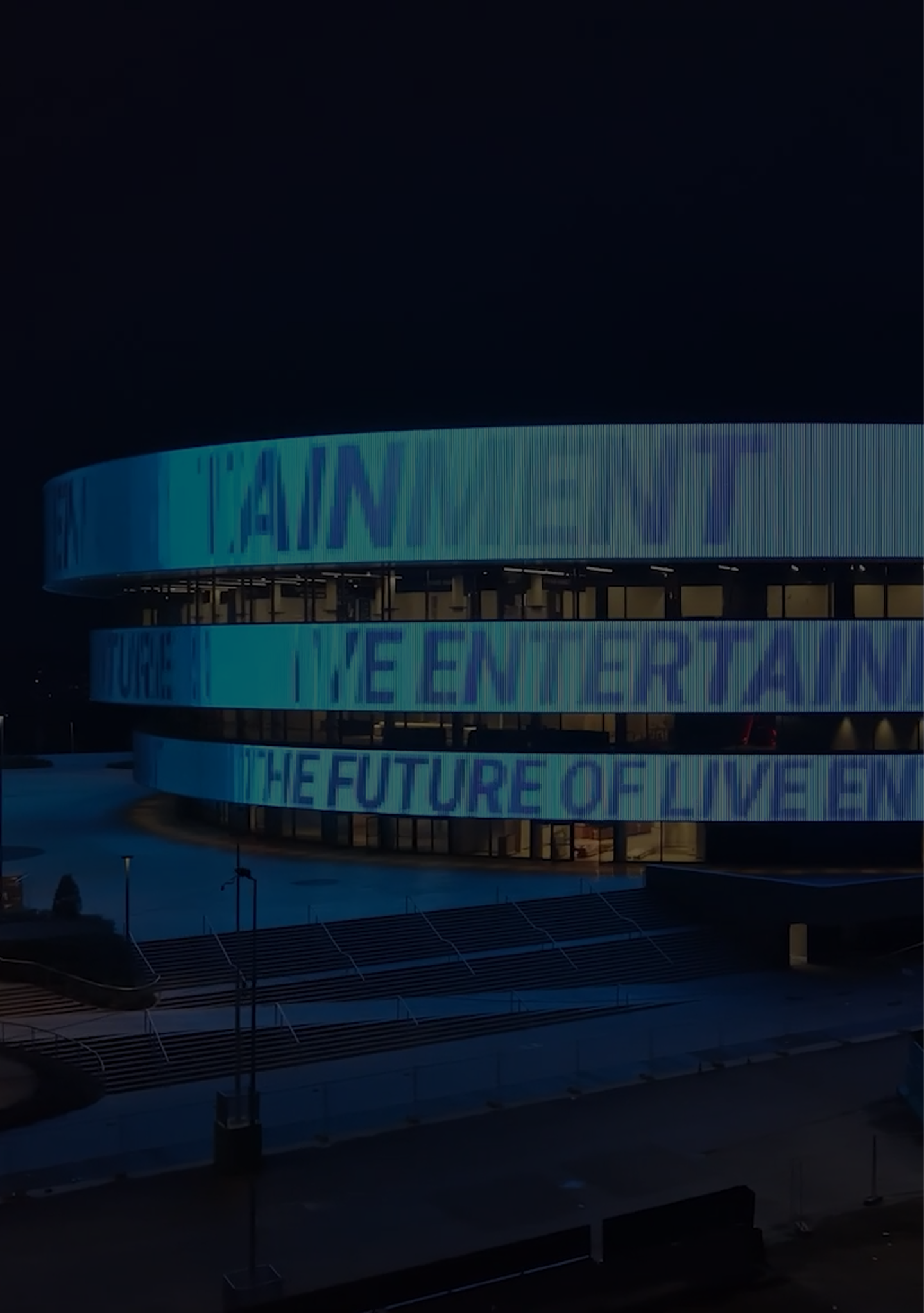

Pixel Map a strip. a façade. a bridge. a city.
2D/3D pixel-mapping software for LED strips, dots and fixtures. Map any shape or size, from 2,048 to 4.2 million eDMX channels.
Map any rig. Run any show.
ELM turns thousands of LEDs, any strip, dot or fixture, into one surface you can map in 2D or 3D and drive with live video, generative effects and audio-reactive shows, from a nightclub wall to a city-scale media façade.

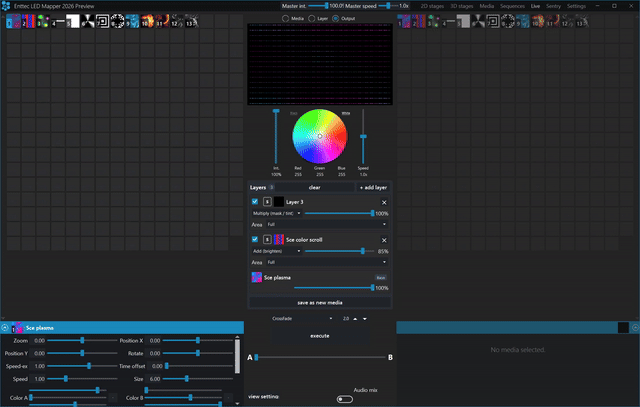

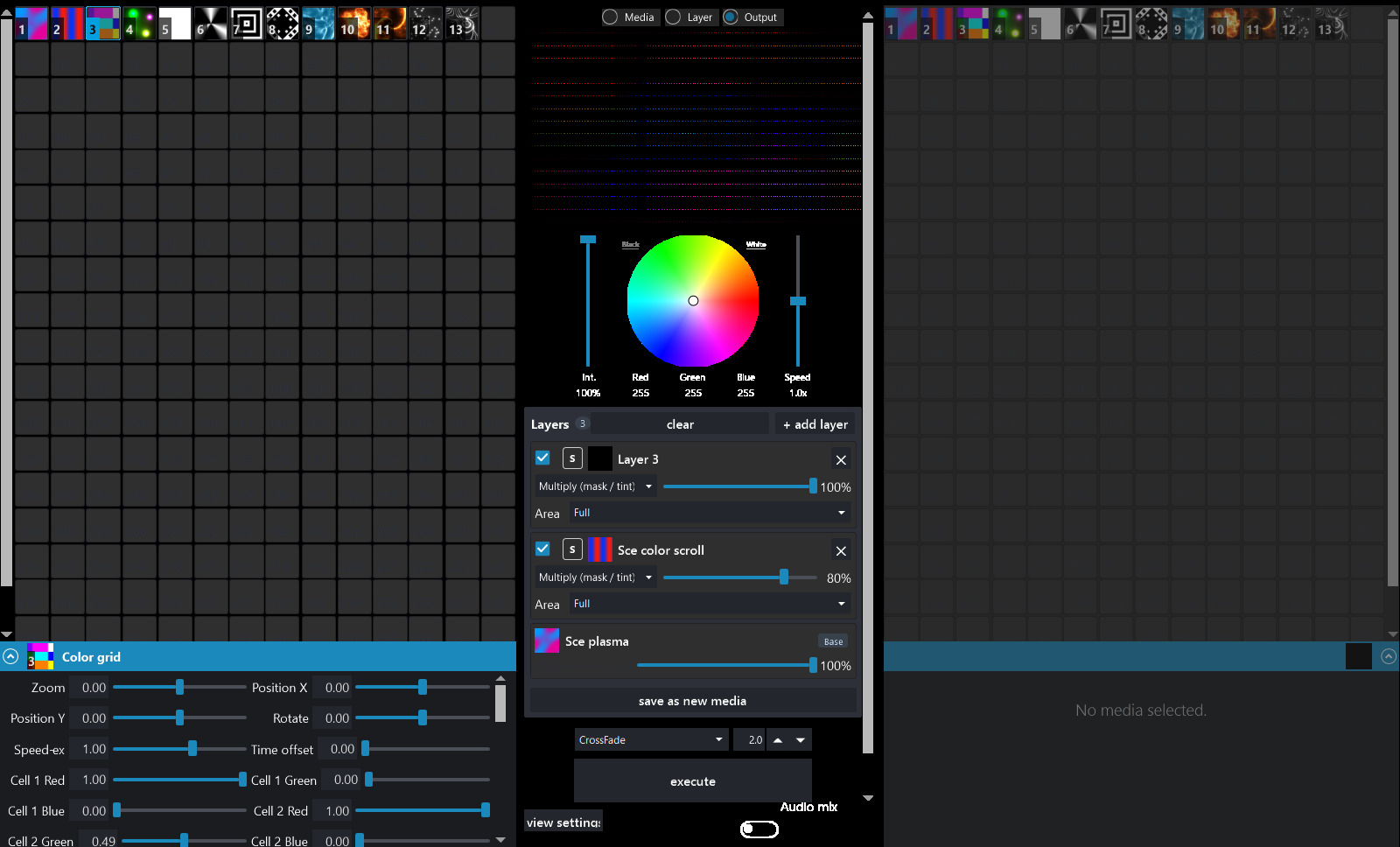

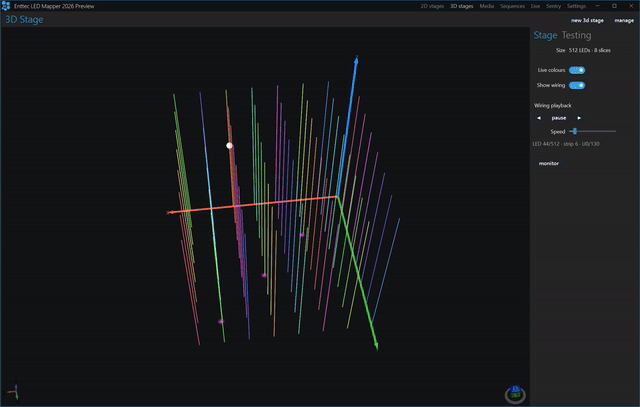

Recreate your rig in 2D or 3D, paint video and effects across the whole map like one big screen, then drive your hardware in sync, from a single fixture to an entire building.
Speaks Art-Net, sACN and KiNet to drive ENTTEC and third-party pixel gear alike, on its own or alongside your console, and automates over OSC and a built-in HTTP API.
Licensing is simple, priced by universe count and stackable as you grow. See pricing & licences →
From bare LEDs to a mapped rig, fast.
Mapping is where you spend most of your time, so ELM’s vector tools make it quick, whether you’re placing a single strip or thousands of fixtures. No 3D or CAD experience needed to get a clean, accurate map.
Draw your rig
Lay out strips, dots and fixtures with vector tools. Use the expanded shape library or draw your own, split a long strip into sections without re-patching, or close a custom strip into a perfect loop.
Position every pixel
Copy, paste, invert, rotate and lasso pixels into any configuration. ELM calculates the position of every LED from your drawing, and locate, test and identify options confirm the map matches the real rig.
Preview before you power on
Check your work in the built-in 2D monitor, and drop a photo of the real installation behind the map for true-to-life fidelity. Export an LED snapshot as a content guide for your motion designers.
The biggest leap ELM has ever made.
Shows that move with the music.
ELM’s audio-reactive Eye Candy effects lock your rig to a live audio feed, so clubs, gigs and events stay in time with the room, with no timeline to babysit.
Pay only for the scale you output
You pay for output, not features. Pricing scales by universe count, so you only buy the size you’re running, and licences stack as your setup grows.

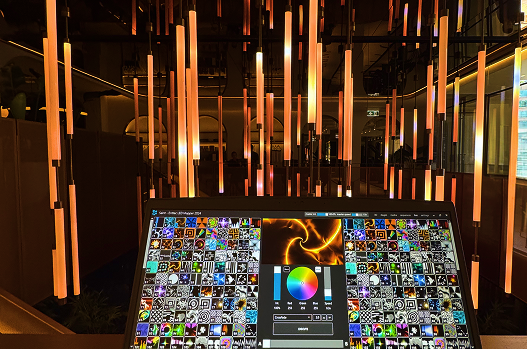

Download ELM 2026
The full app, free. Every feature is included from the first launch, choose a licence when you’re ready to output at scale.
Windows 10 or 11
Quad-core 3.5 GHz CPU
8 GB RAM
NVIDIA GeForce 900 / 10-series or better
Built to run ENTTEC hardware
Download ELM 2026
