NA2 tunable white LED tape (10m)

Great for uniform designs or injecting some creative flair to a project.

1 in stock

SKU: 73310-NA2-24V-WW30-120-10

Overview
Features
Specifications
Resources

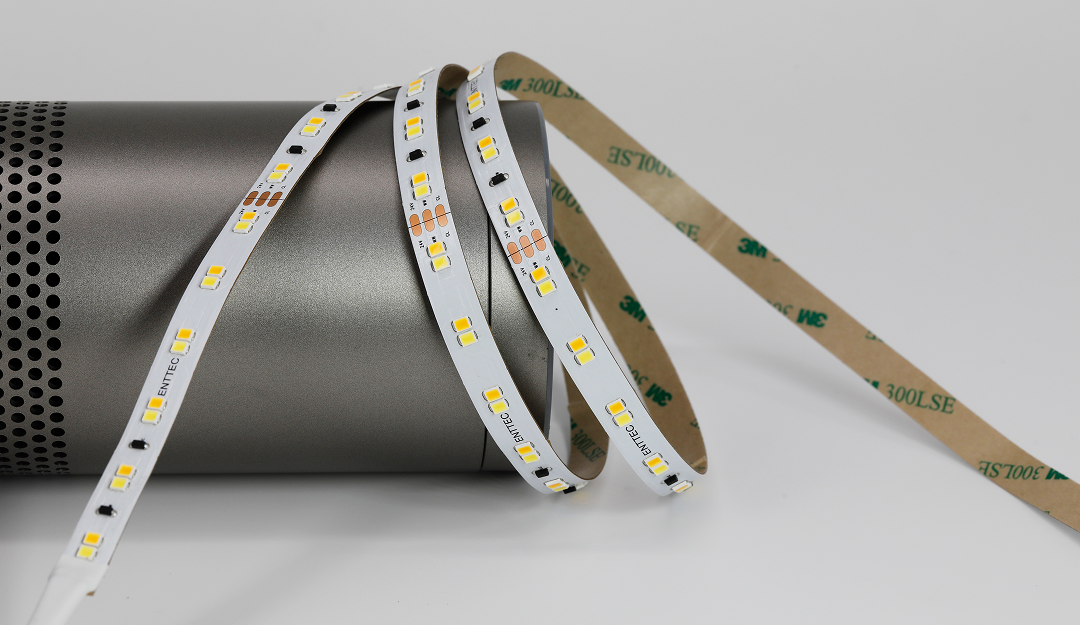

Colour temperature adjustable LED strip with superior performance

ENTTEC designs and manufactures a complete range of high-quality LED strips to suit any desired mood or effect. NA2 tunable white strips deliver the highest output in the range with 120 LEDs per metre, built on a robust 4oz copper substrate for superior durability and performance. Adjustable from 3000K to 5500K, you can precisely control the colour temperature to suit any environment — ideal for hospitality, residences, offices, museums, and adaptable multi-purpose spaces.

The tunable white (3000K–5500K) range gives the freedom to precisely adjust colour temperature — from warm, ambient tones to bright, daylight-white light. This flexibility allows you to shape the perfect atmosphere for any environment, whether enhancing comfort in a lounge or boosting focus in a workspace. Maximum output of 1803 lm/m — the highest in the NA series.

Unlike standard 1oz–2oz LED tapes, the NA2 uses a heavy-duty 4oz copper substrate that provides higher current-carrying capacity, reduced voltage drop over long distances, better thermal regulation and LED longevity, and greater mechanical strength and bending reliability. This is a significant upgrade that directly increases the durability and lifespan of your installation.

With CRI > 90, R9 > 50 (natural, vibrant reds), and SDCM < 3 (tight colour uniformity between batches), this strip delivers specification-grade colour quality and true-to-life colour reproduction — especially valuable for hospitality, retail, galleries, and high-end commercial projects requiring consistent, flattering illumination.

With improved electrical efficiency and 4oz copper, the NA2 offers up to 15 m with dual injection (12 m with single injection) — the longest in the NA series. These improvements simplify installation layouts and reduce the number of drivers and injection points required.

Fully compatible with ENTTEC’s CVC4 constant-voltage dimmer for smooth dimming, flicker-free fades, and precise brightness control.

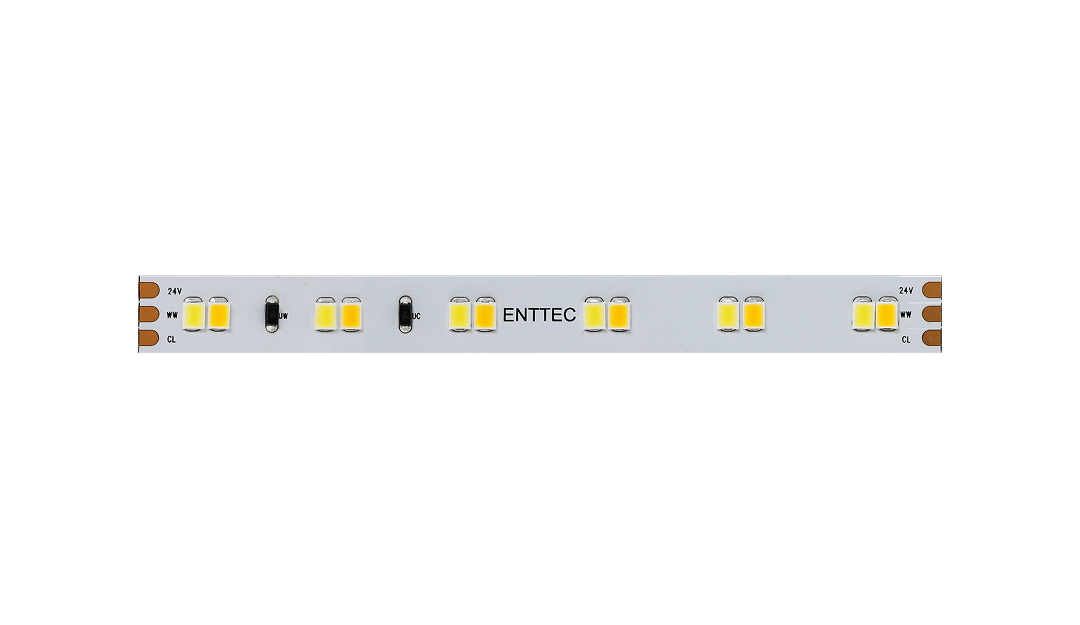

Can be cut every 100mm (12 LEDs) to create virtually any layout. Features easy solder-tab connections, premium white FPC finish, and 3M adhesive backing for quick installation.

Specifications

Connectors	3Pin solder tabs
LED Colour (CCT)	Tunable White (3000K/5500K)
IP Rating	IP20
Input Voltage	24V
Power/Metre	11.8 Watt/m
Lumens/Metre	1803 Lm/m
Max Efficacy	152.8 Lm/w
PCB Colour	White
LED type	SMD2835
CRI	> 90
SDCM	< 3
R9	> 50
Beam Angle	120 °
LED/Metre	120 LEDs/m
Spacing Between Cuttable Sections	100mm / 3.94″
LEDs per Cutting Unit	12 LEDs
PCB Width	10mm / 0.39″
Bend Radius (Min)	30mm / 1.2″
LED lifetime L70 (6K)	>36,000 hours
Dimming Method	LED dimmable by ENTTEC CVC4 (73926)
Working/Storage Temperature	-30~55°C / 0°C~60°C
Environmental Operating Humidity	5-95% (non-condensing)
Shipping Weight (10m Roll)	0.3Kg / 0.66lbs
Shipping Dimensions (Single Roll)	250mm x 255mm x 30mm / 9.84″ x 10.04″ x 1.18″
Warranty	1 year return to base manufacturer warranty
