NA1 white LED strip (10m)

Great for uniform designs or injecting some creative flair to a project.

SKU: N/A

Overview
Features
Specifications
Resources

High output white with superior performance

ENTTEC designs and manufactures a complete range of high-quality LED strips to suit any desired mood or effect. NA1 strips deliver high output with 120 LEDs per metre, built on a robust 4oz copper substrate for superior durability and performance. Available in 3000K, 4000K, and 6000K, you can choose the white that suits your project — ideal for commercial spaces, retail, hospitality, and high-output applications.

Thanks to a high output configuration, NA1 delivers exceptional brightness across all colour temperatures:

3000K (Warm White): 1297 lm/m — soft, inviting ambience ideal for hospitality and residential
4000K (Neutral White): 1445 lm/m — perfect balance for commercial and workspace environments
6000K (Cool White): 1436 lm/m — bright, crisp light for commercial spaces and long runs

Unlike standard 1oz–2oz LED tapes, the NA1 uses a heavy-duty 4oz copper substrate that provides higher current-carrying capacity, reduced voltage drop over long distances, better thermal regulation and LED longevity, and greater mechanical strength and bending reliability. This is a significant upgrade that directly increases the durability and lifespan of your installation.

With CRI > 90, R9 > 50 (natural, vibrant reds), and SDCM < 3 (tight colour uniformity between batches), this strip delivers specification-grade colour quality and true-to-life colour reproduction — especially valuable for hospitality, retail, galleries, and high-end commercial projects requiring consistent, flattering illumination.

With improved electrical efficiency and 4oz copper, the NA1 offers up to 13 m with dual injection (10 m with single injection). These improvements simplify installation layouts and reduce the number of drivers and injection points required.

Fully compatible with ENTTEC’s CVC4 constant-voltage dimmer for smooth dimming, flicker-free fades, and precise brightness control.

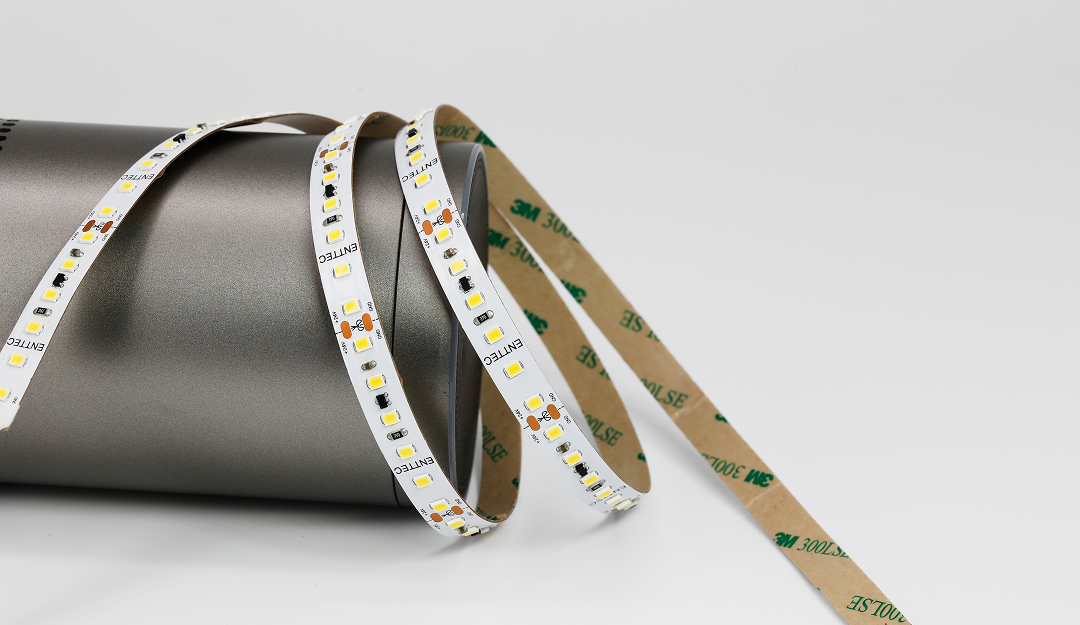

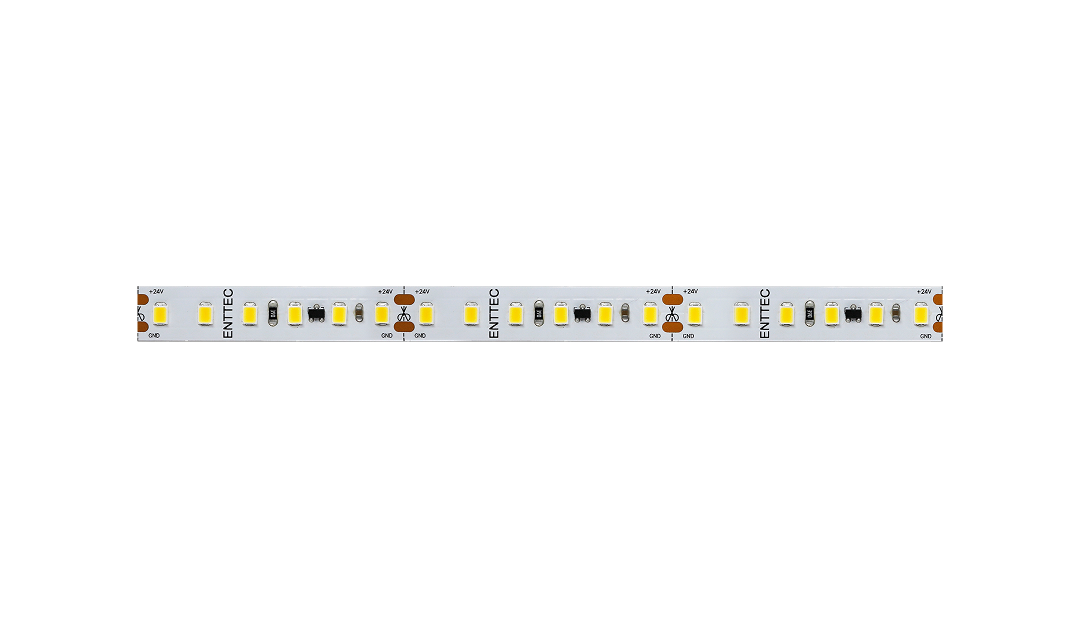

Can be cut every 50mm (6 LEDs) to create virtually any layout. Features easy solder-tab connections, premium white FPC finish, and 3M adhesive backing for quick installation.

Specifications

Connectors	2Pin solder tabs
LED Colour (CCT)	Warm White (3000K) / Neutral White (4000K) / Cool White (6000K)
IP Rating	IP20
Input Voltage	24V
Power/Metre	14.64 Watt/m
Lumens/Metre	1297 Lm/m (3000K) / 1445 Lm/m (4000K) / 1436 Lm/m (6000K)
Efficacy	88.6 Lm/w (3000K) / 98.7 Lm/w (4000K) / 98.09 Lm/w (6000K)
LED type	SMD2835
CRI	> 90
SDCM	< 3
R9	> 50
Beam Angle	120 °
LED/Metre	120 LEDs/m
Spacing Between Cuttable Sections	50mm / 1.97″
LEDs per Cutting Unit	6 LEDs
PCB Width	10mm / 0.39″
Bend Radius (Min)	30mm / 1.18″
LED lifetime L70 (6K)	>36,000 hours (3000K/4000K) / >50,000 hours (6000K)
Dimming Method	LED dimmable by ENTTEC CVC4 (73926)
Working/Storage Temperature	-30~55°C / 0°C~60°C
Environmental Operating Humidity	5-95% (non-condensing)
Shipping Weight (10m Roll)	0.25Kg / 0.55lbs
Shipping Dimensions (Single Roll)	250mm x 255mm x 30mm / 9.84″ x 10.04″ x 1.18″
Warranty	1 year return to base manufacturer warranty
