SMART PXL 100×25 DOT

Flexible strings of ultra-bright, high-resolution 100mm x 25mm RGB or RGBW LED dots — available in black or white finishes — with robust, injection-moulded cases for all-weather use.

Overview
Features
Connectivity
Specifications
Resources

Individually-addressable, LED pixel dot lights

ENTTEC’s SMART PXL 100×25 LED pixel dots are high-resolution, individually addressable, and built to withstand harsh environments. Available in both black and white finishes to suit a variety of design needs, they are easy to install in any shape and deliver crisp lighting effects while adding a stylish design element. Custom spacing and voltage options ensure flexibility for various projects. Designed by lighting professionals for lighting professionals, each string is made to order at our factory and shipped globally.

Constructed from premium durable materials in our Australian factory, SMART PXL dots offer outstanding protection against moisture (IP67), corrosion and impact (IK10), and come with a 3-year warranty.

For outdoor or high-exposure applications, we recommend using the original UV resistant black dots. The white version is best suited for indoor or shaded installations.

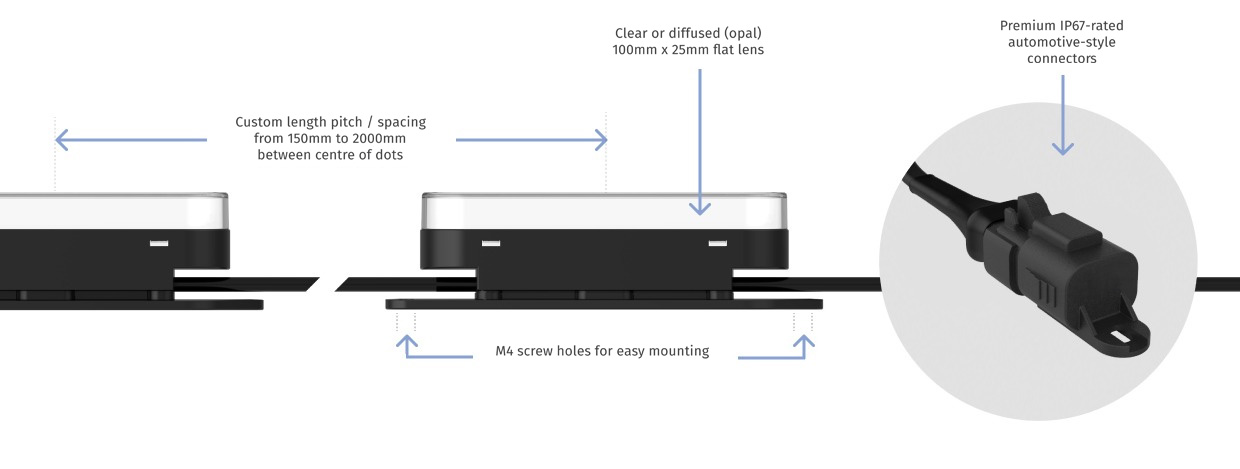

Because your projects are built to custom specifications, so are our SMART PXL dots. Select from RGB or RGBW LEDs for a 24V or 48V system, as well as 2 different lens options and custom spacing from anywhere between 150mm and 2000mm between each dot.

The SMART PXL dots are available in black or white dot string, giving designers the flexibility to match darker or lighter architectural elements.

Each direct-view SMART PXL dot contains 12 premium RGB or RGBW LED chips, giving an impressive lumen output. They look amazing from a distance and have been used to great effect around the world on everything from bridges to ferris wheels.

16-bit native for an ultra-smooth dimming curve and mixing detail that will truly wow your audience.

We use custom made quality cable to combat voltage drop, ensuring you a richness and consistency of colour. With the best combination of customisation, you’ll be able to achieve long runs of up to 204 dots without power injection. Talk to our friendly sales team now to understand the full potential of your design!

The versatile nature of SMART PXL dot strings means they’re easy-to-install around tricky angles, corners or bends, making them ideal to show off or highlight architectural features. Talk with an ENTTEC expert and we can help you bring almost any design you can imagine to life.

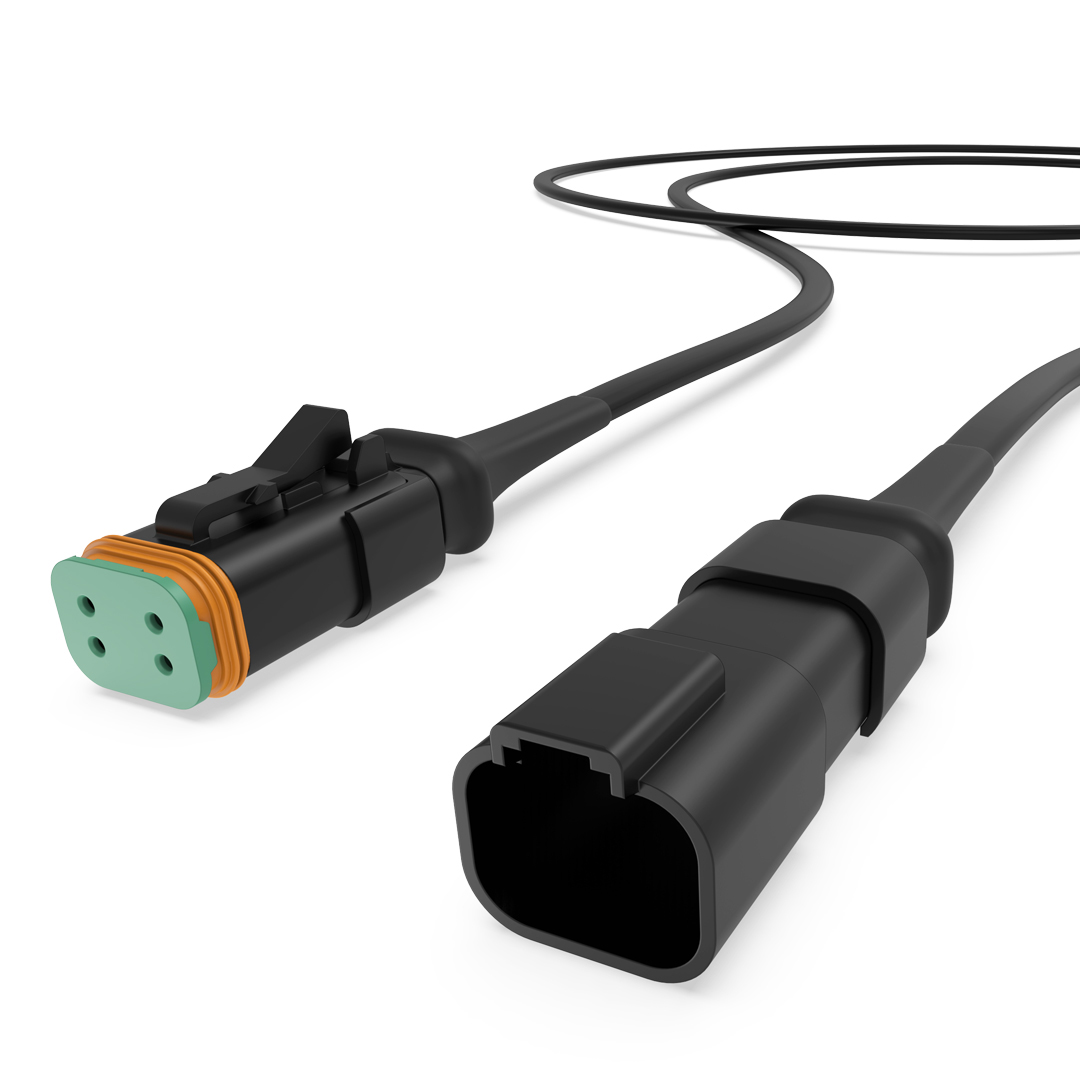

Accessories

100×25 LED pixel dot accessories

At ENTTEC, we know that well-considered design is key to a successful installation. Our team have created a leading range of innovative accessories with premium cabling and connectors to support your project and make specifying and installing the SMART PXL series simple.

For peace of mind, our 24V and 48V accessories also feature different pinouts to prevent damage being caused when using different voltages.

Specifications

LED channels	RGB (Red/Green/Blue) or RGBW (Red/Green/Blue/White)
Colour resolution	16-bit
Control protocol	ENTTEC SPXL-16
Data configuration	auto-addressing
LED lifetime	50,000 hrs (L70)
Body material	Injection moulded PVC in black or white
UV resistance	Black: UV resistant / White: reduced UV resistance
Lens options	100mm x 25mm – flat diffuse / flat clear
Lens material	optical grade polycarbonate
IK rating	IK10
IP rating	IP67
Vibration rating	3G
Operating temperature	-20°C to +50°C
Overall dimension	118.2mm L x 25mm W x 32mm H
Weight	approx. 68g/dot (excl. lead in & out)
Dot pitch/spacing	customisation options available: from 150mm to 2000mm
Installation	2 x ⌀4.3mm mounting holes for M4 screws
Cabling	includes premium automotive style connectors
Compliance	RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
Warranty	3-year return-to-base manufacturer warranty as standard. Talk to us to arrange longer periods

RGB version

LED source	12 x RGB SMD3535 per dot – customisation options available
Input voltage	24V DC or 48V DC options
Max lumens (lm)	24V: flat diffuse lens: 31.1 / flat clear lens: 39.2 48V: flat diffuse lens: 29.7 / flat clear lens: 38.3
Efficacy (max lm/watt)	24V: flat diffuse lens: 13.9 / flat clear lens: 17.6 48V: flat diffuse lens: 11.8 / flat clear lens: 15.2
Control channels	equivalent of 6 DMX channels of data per dot
Dots controllable per DMX universe	85

RGBW version

LED source	12 x RGBW (3000K) SMD5050 per dot – customisation options available
Input voltage	24V DC or 48V DC options
Max lumens (lm)	24V: flat diffuse lens: 69.1 / flat clear lens: 87.1 48V: flat diffuse lens: 62.4 / flat clear lens: 82.5
Efficacy (max lm/watt)	24V: flat diffuse lens: 31.0 / flat clear lens: 39.1 48V: flat diffuse lens: 31.7 / flat clear lens: 41.9
Control channels	equivalent of 8 DMX channels of data per dot
Dots controllable per DMX universe	64
