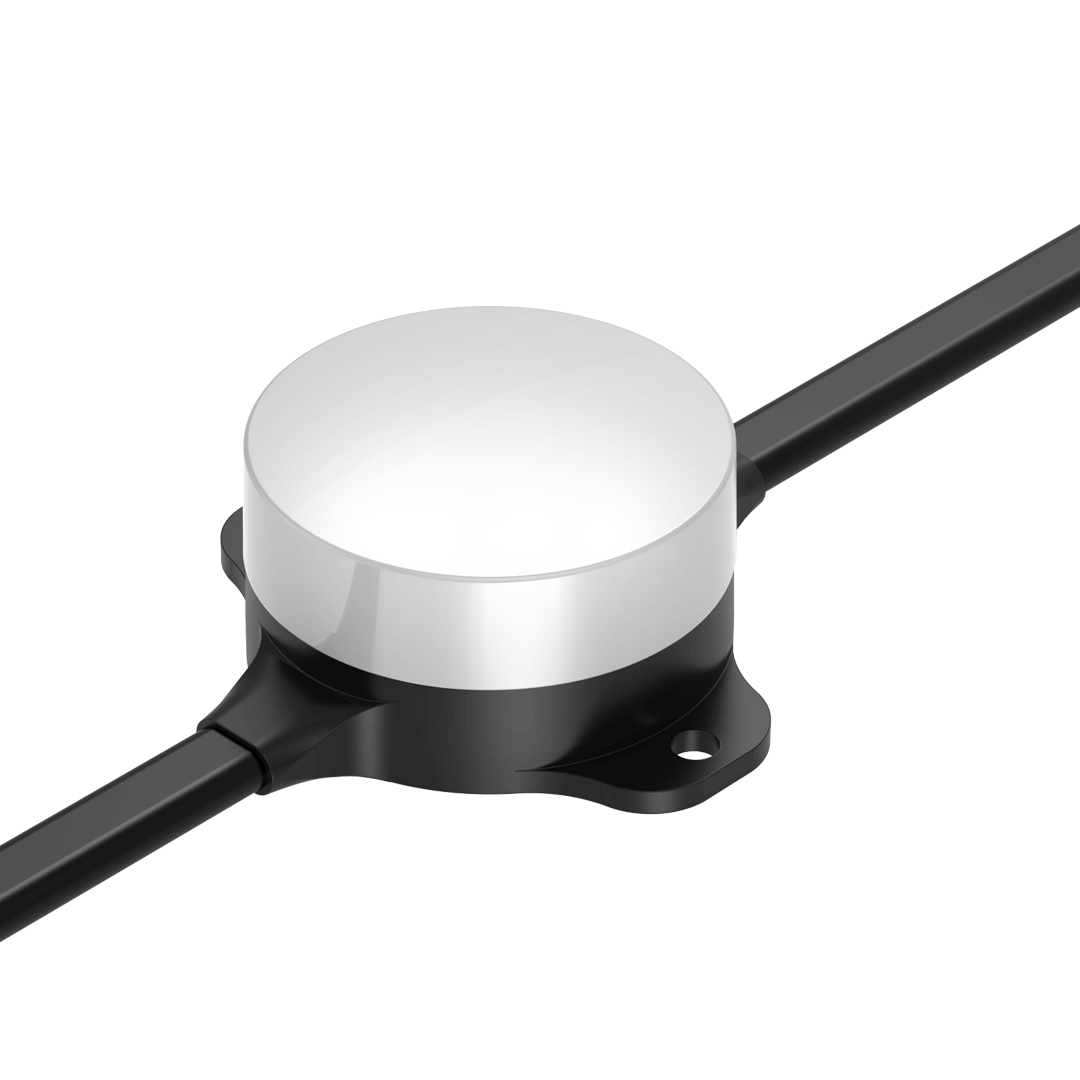

Smart PXL 40 Dot
Flexible strings of ultra-bright, high-resolution 42mm RGB or RGBW LED dots — available in black or white finishes — with robust, injection-moulded cases for all-weather use.
Individually-addressable, LED pixel dot lights
ENTTEC’s Smart PXL 40 dots feature robust, weatherproof IP67 PVC cases and connectors, offered in both black and white finishes to suit a variety of design needs. These versatile, easy-to-install RGB dots create striking lighting effects and can be customized for any project. Designed by professionals, they take any project to the next level to suit architectural, commercial and entertainment spaces. For projects requiring metal fixtures, we offer an aluminium variant (METAL Smart PXL 40 Dot) made from marine-grade aluminium, machined, and anodised at our factory.
Constructed from premium durable materials in our factory, Smart PXL dots offer outstanding protection against moisture (IP67), corrosion and impact (IK10), and come with a 3-year warranty. All internal metallic components are fully sealed by encapsulation, providing additional protection against corrosion in demanding environments.
For outdoor or high-exposure applications, we recommend using the original UV stabilised black dots. The white version is best suited for indoor or shaded installations.

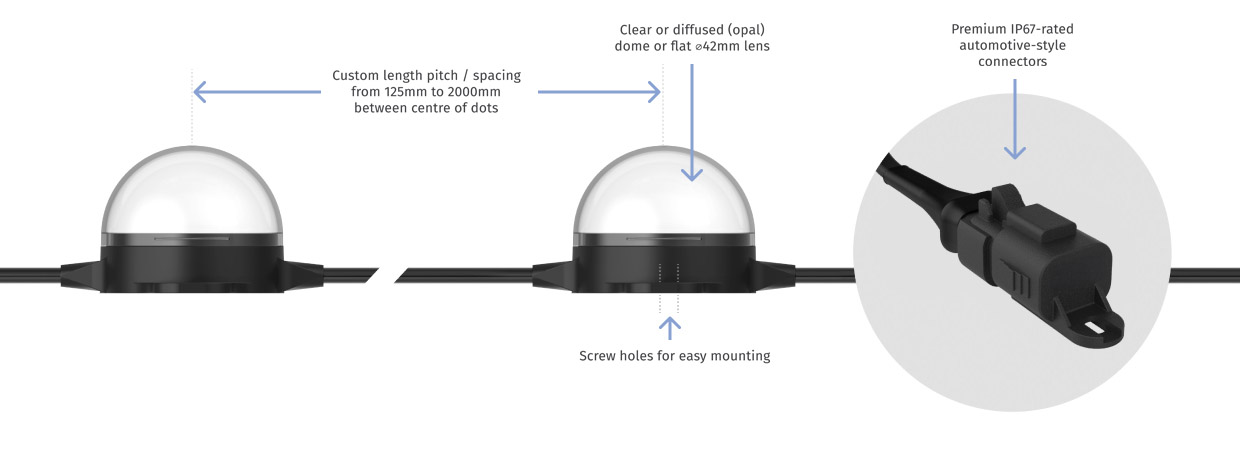

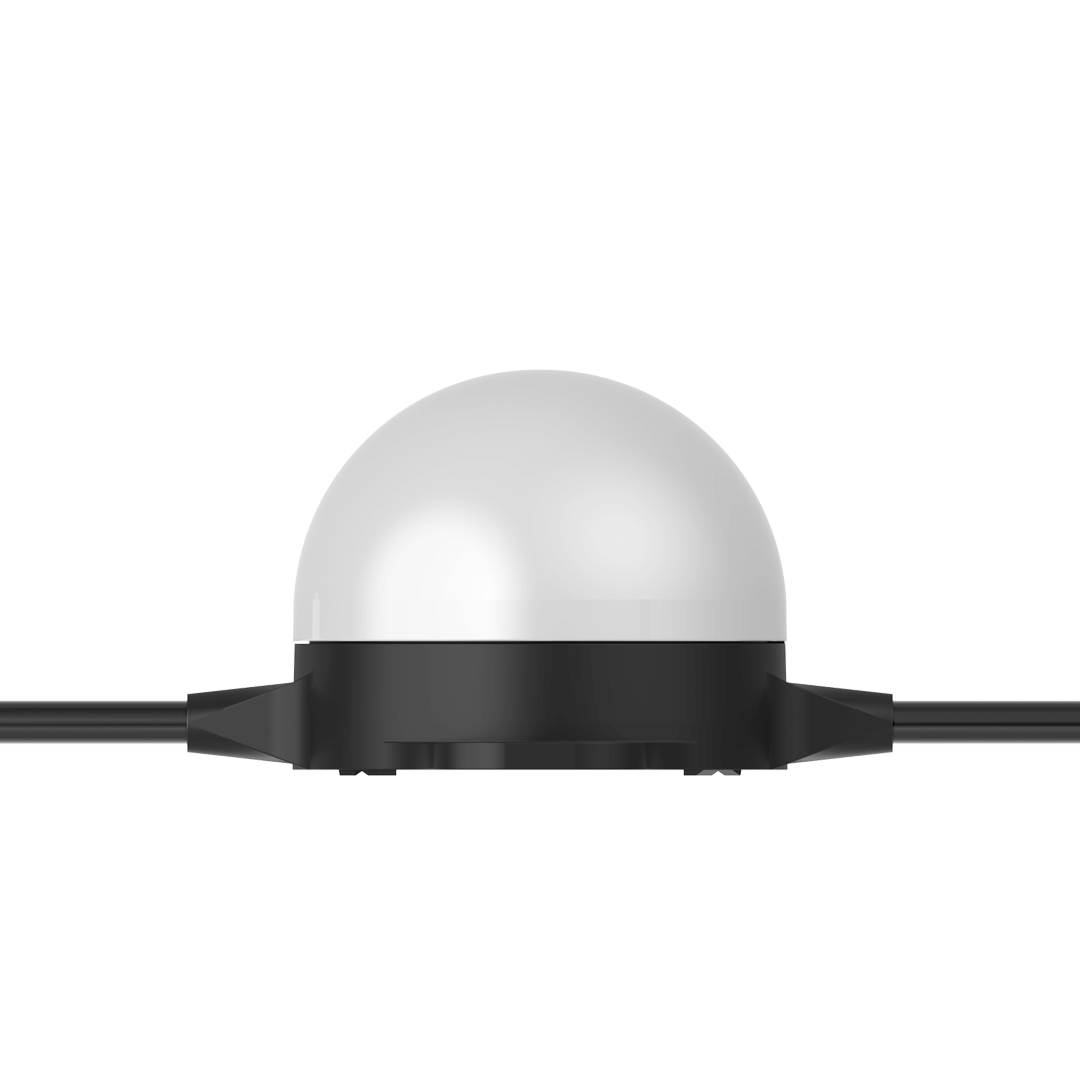

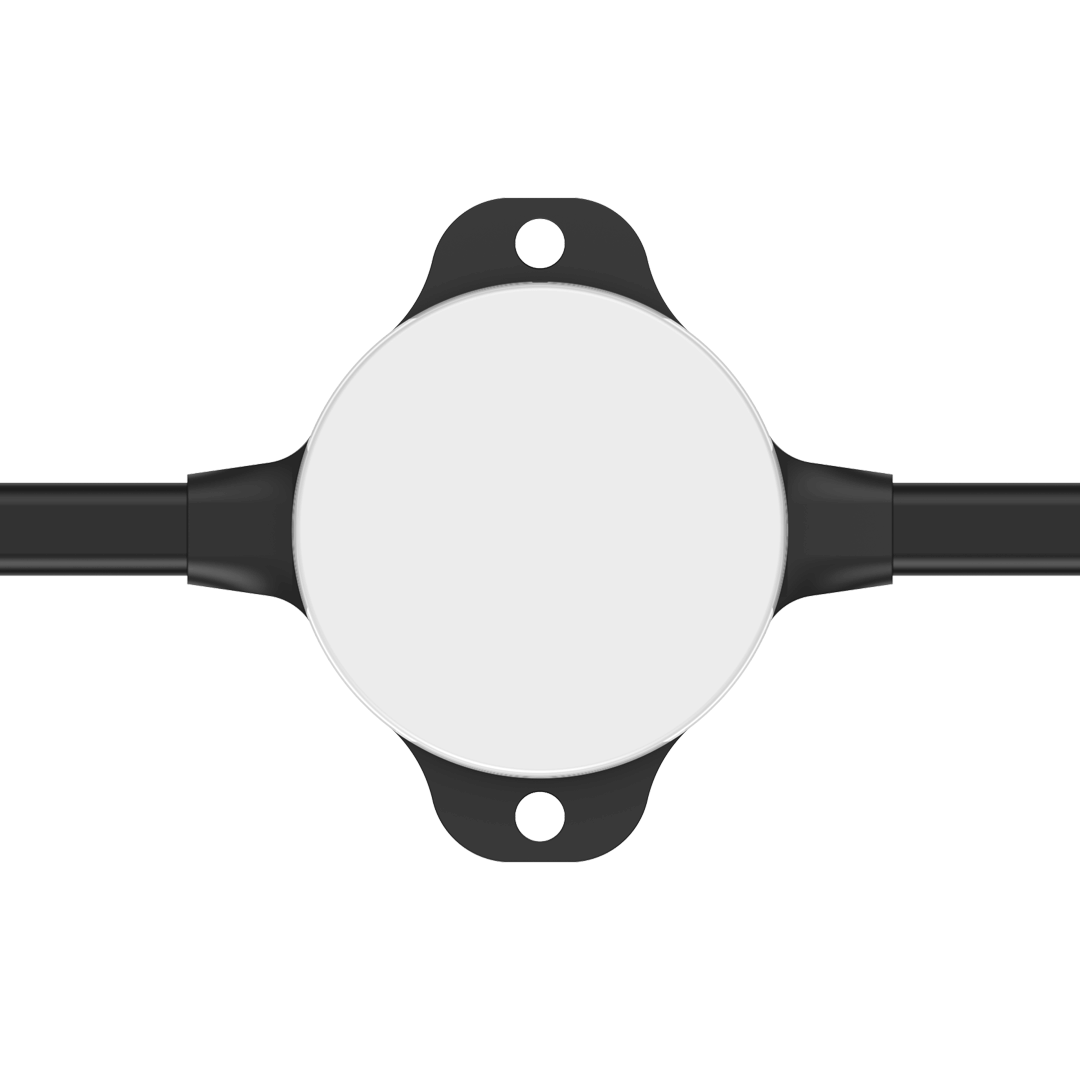

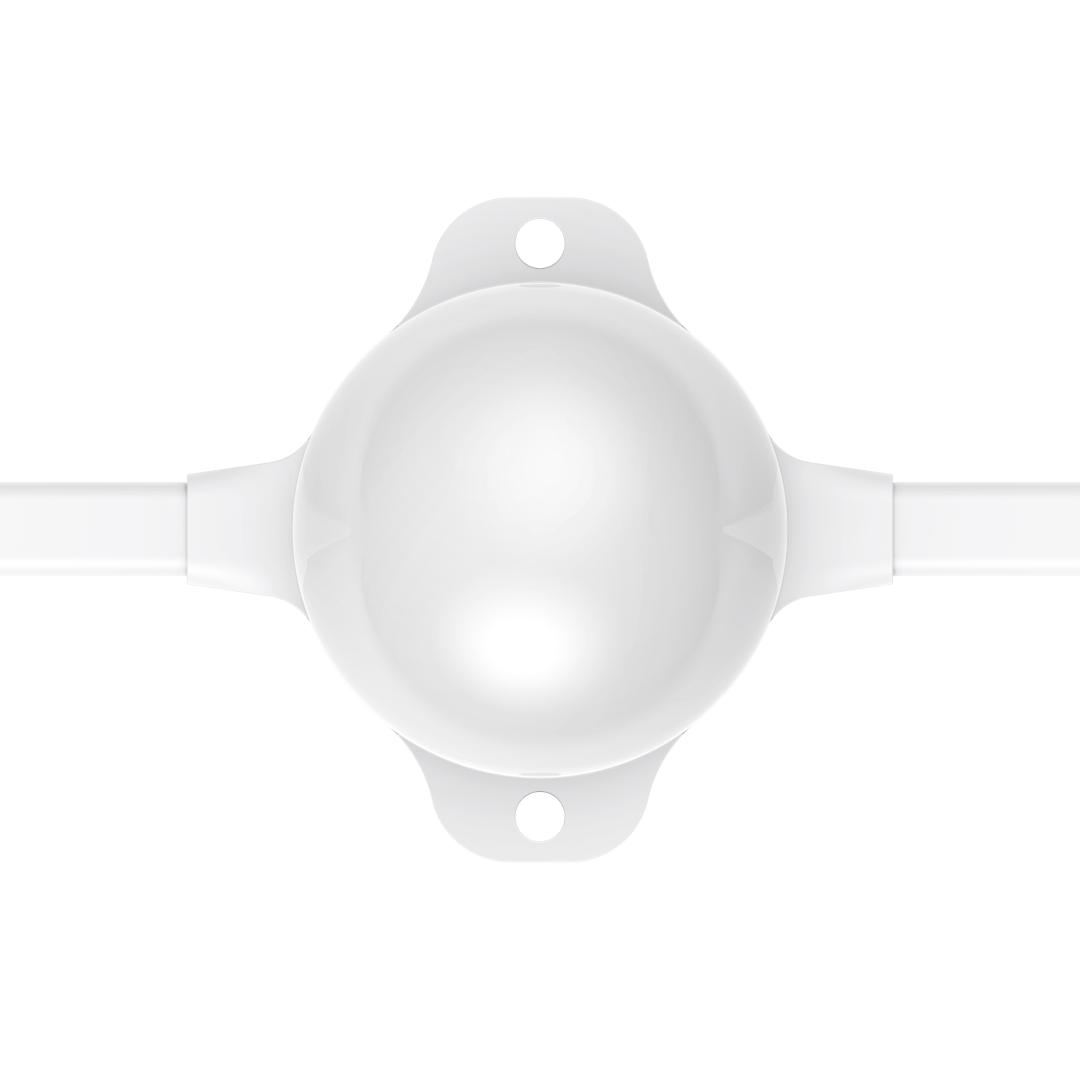

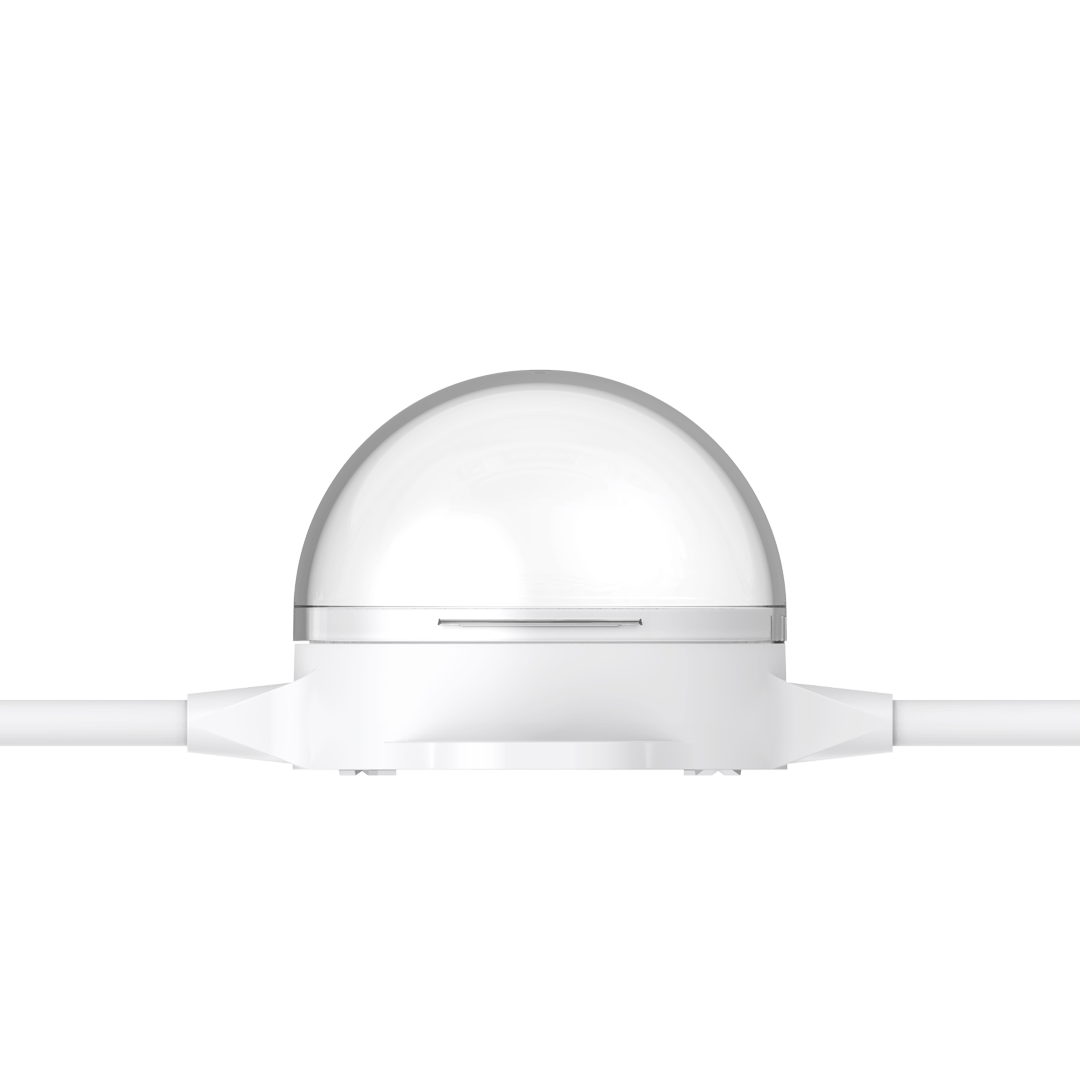

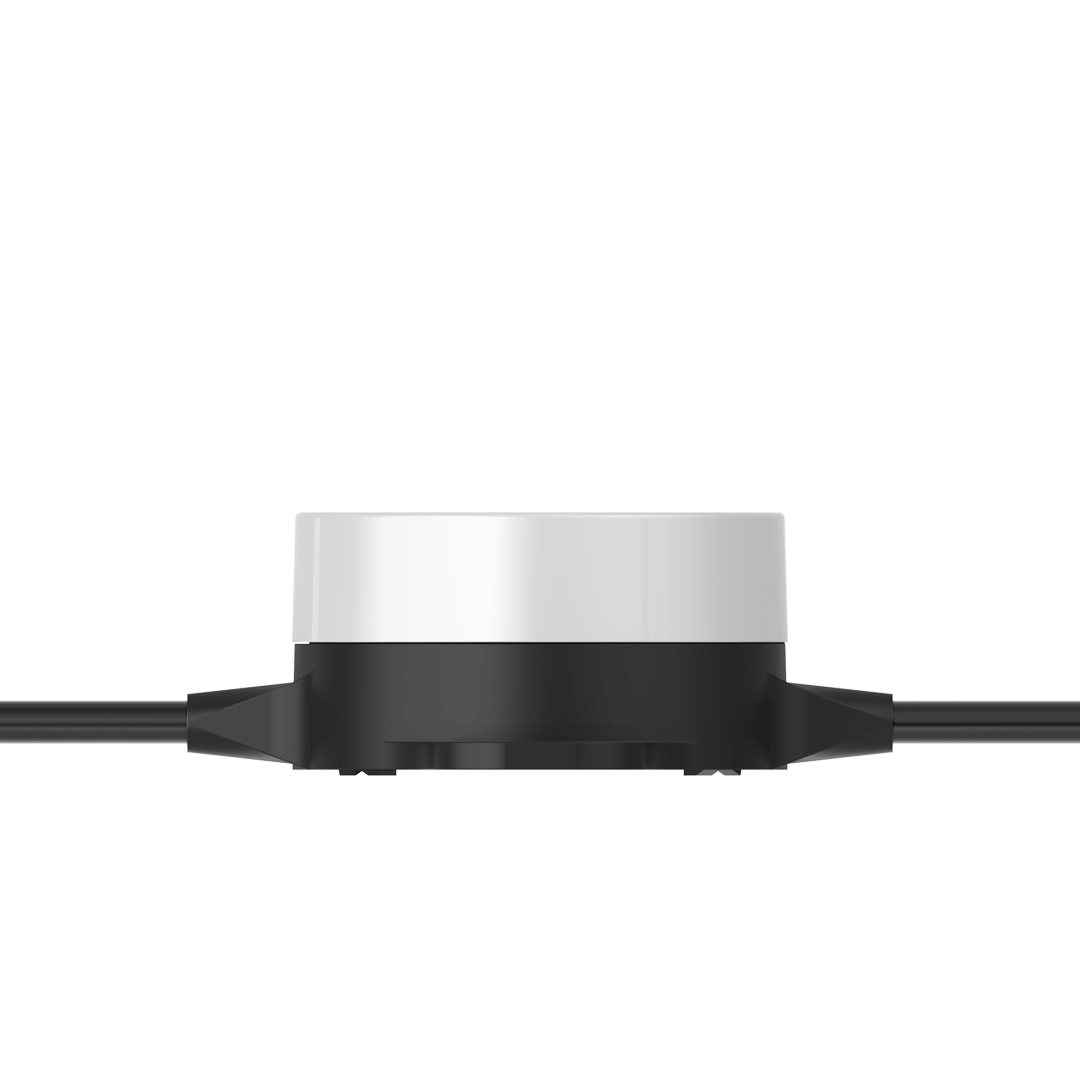

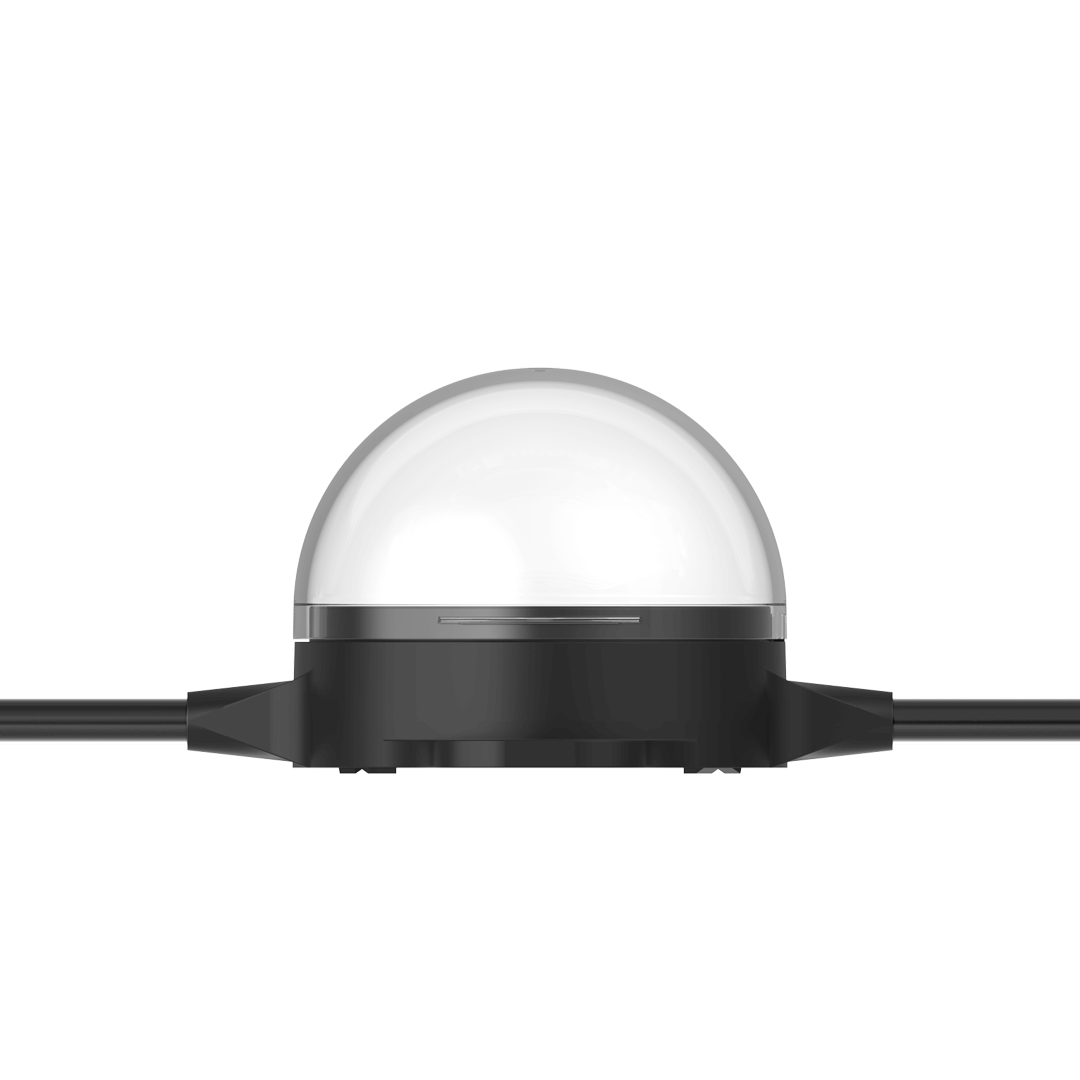

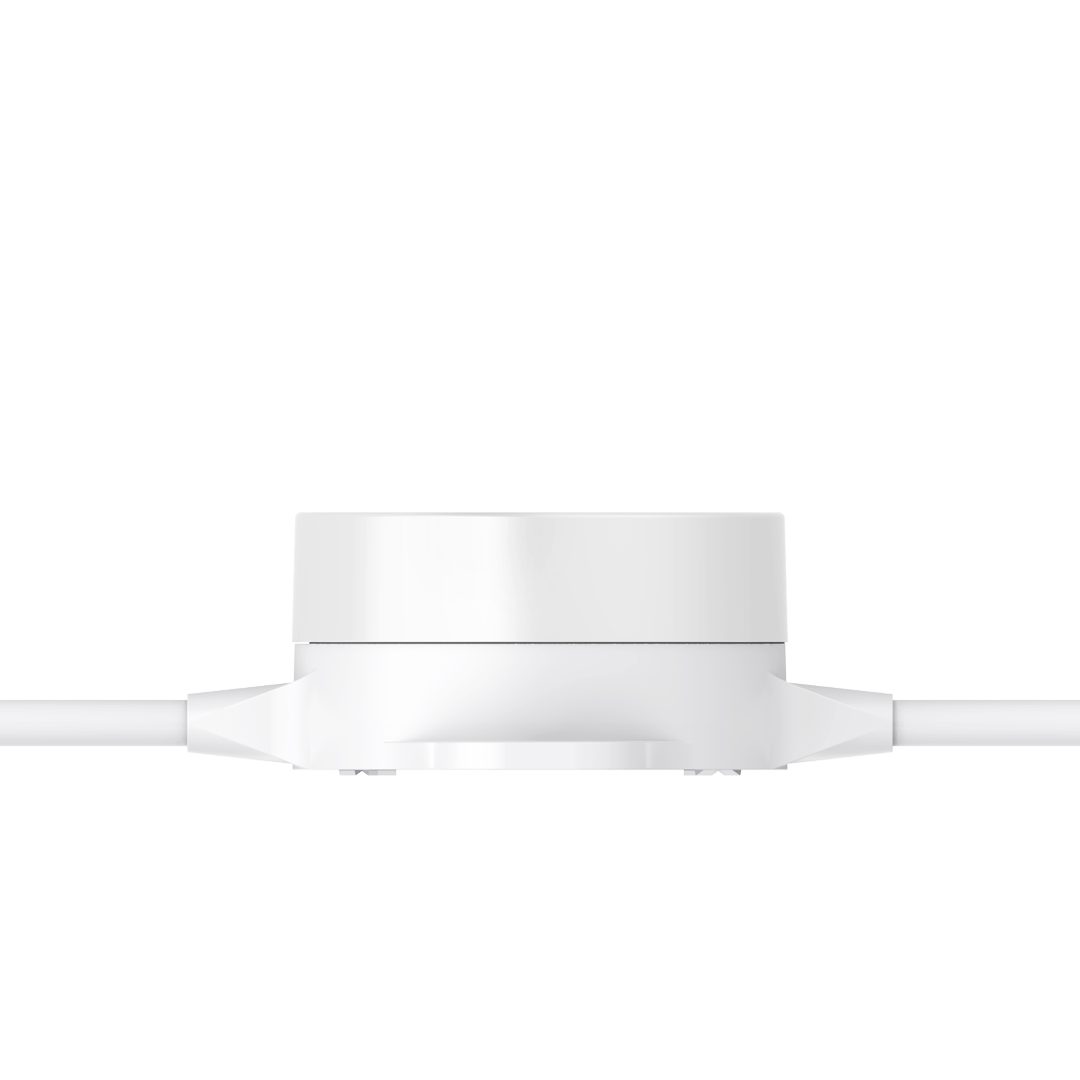

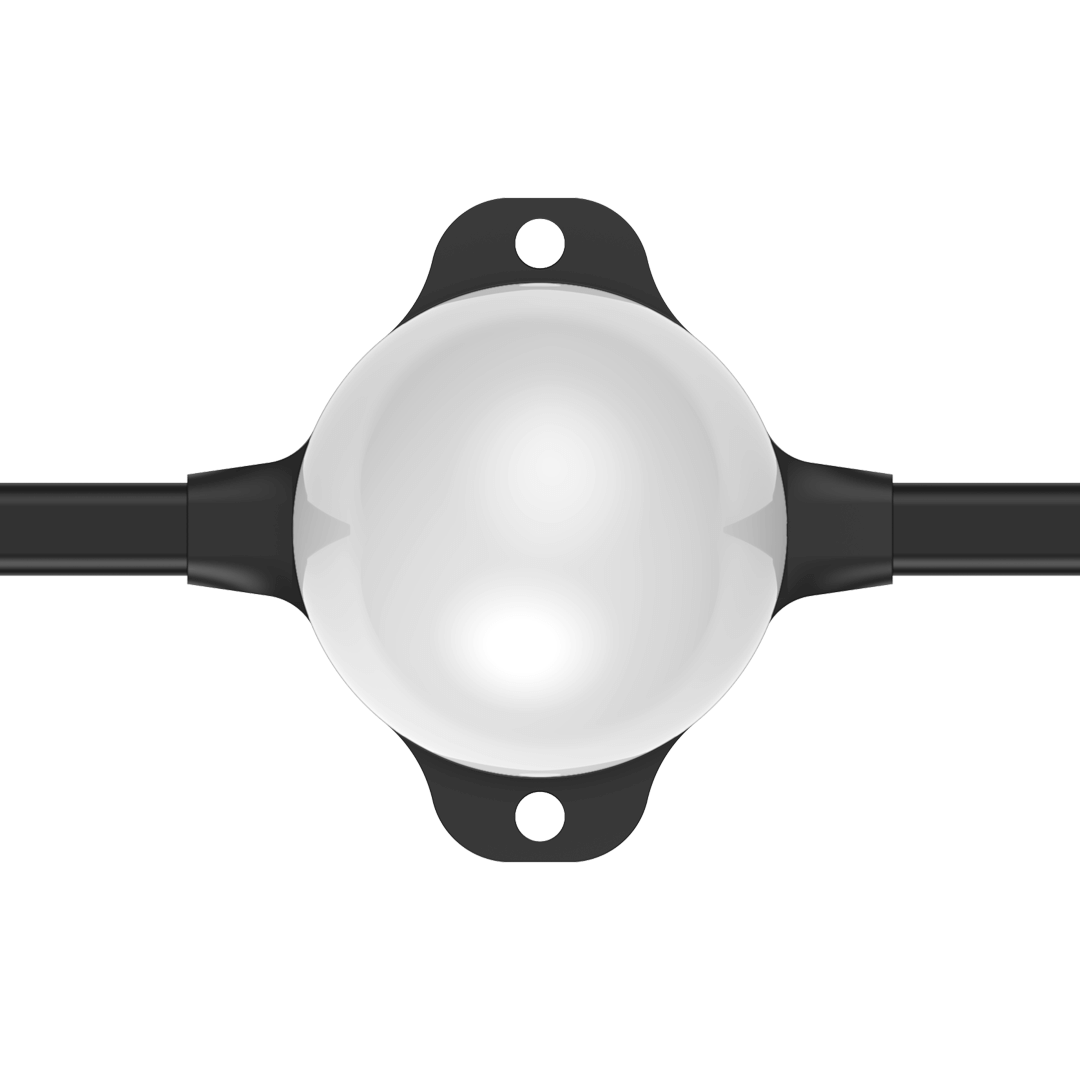

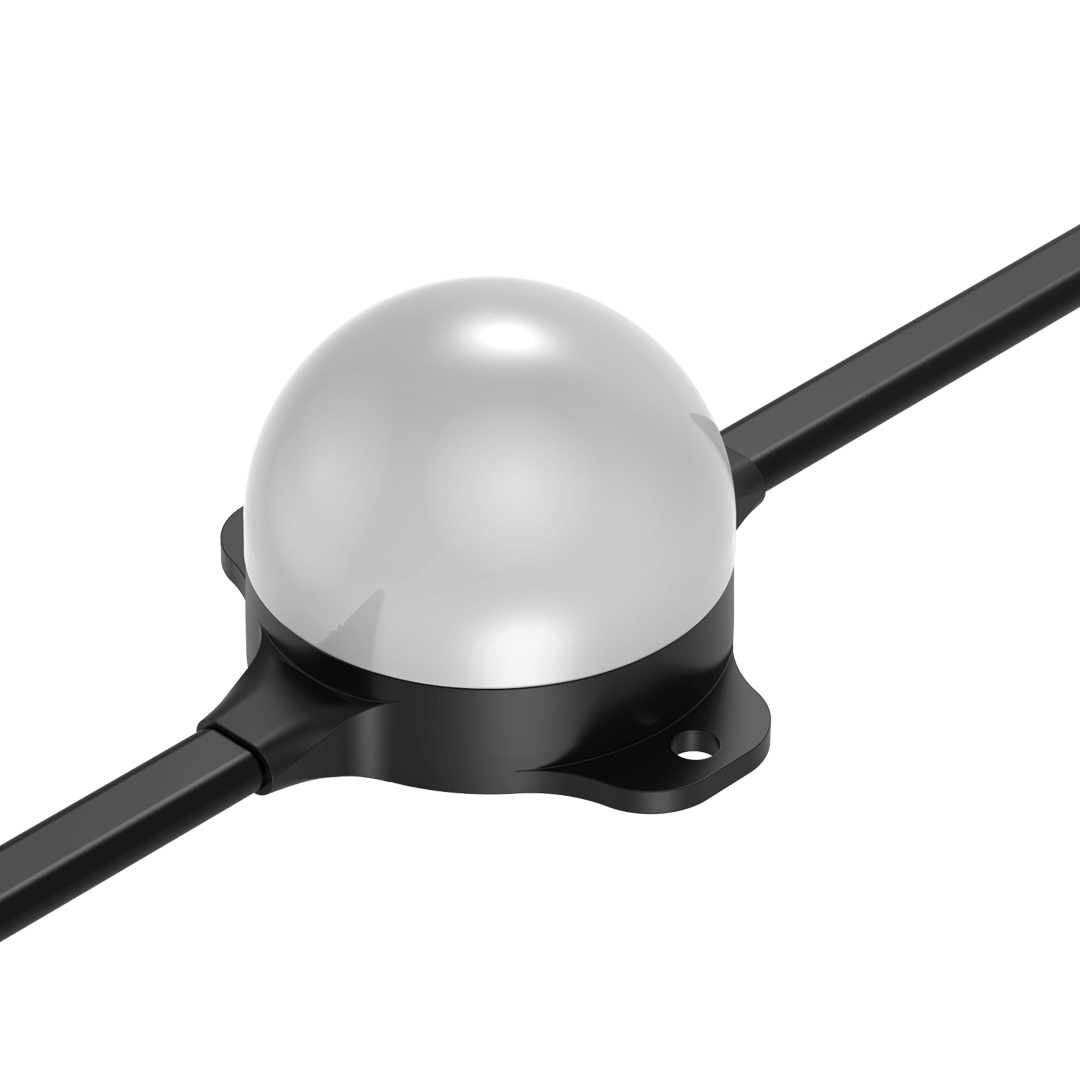

Because your projects are built to custom specifications, so are our Smart PXL 40 dots. Select from RGB or RGBW LEDs for a 24V system, as well as from 4 different lens options and custom spacing from anywhere between 125mm and 2000mm between each dot.

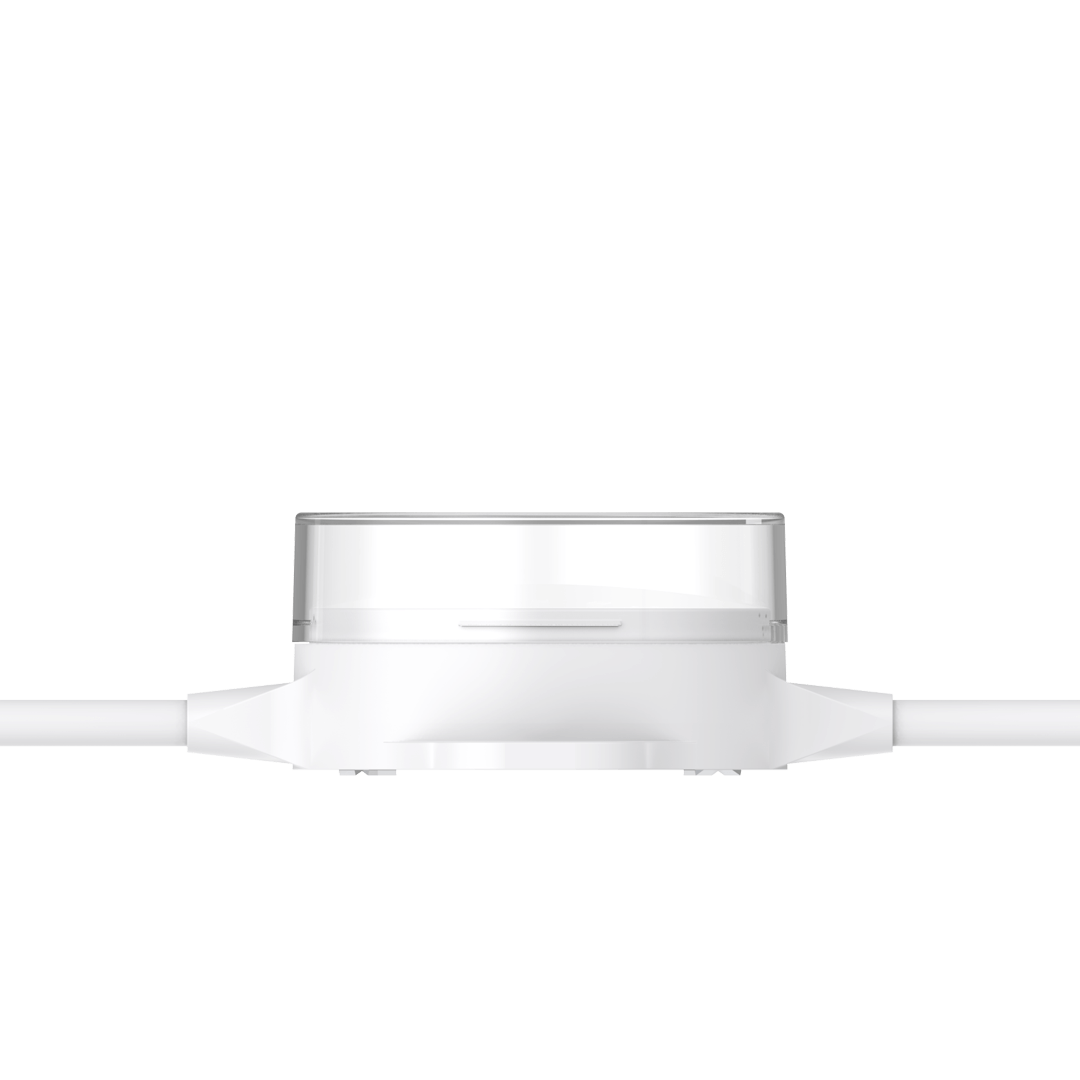

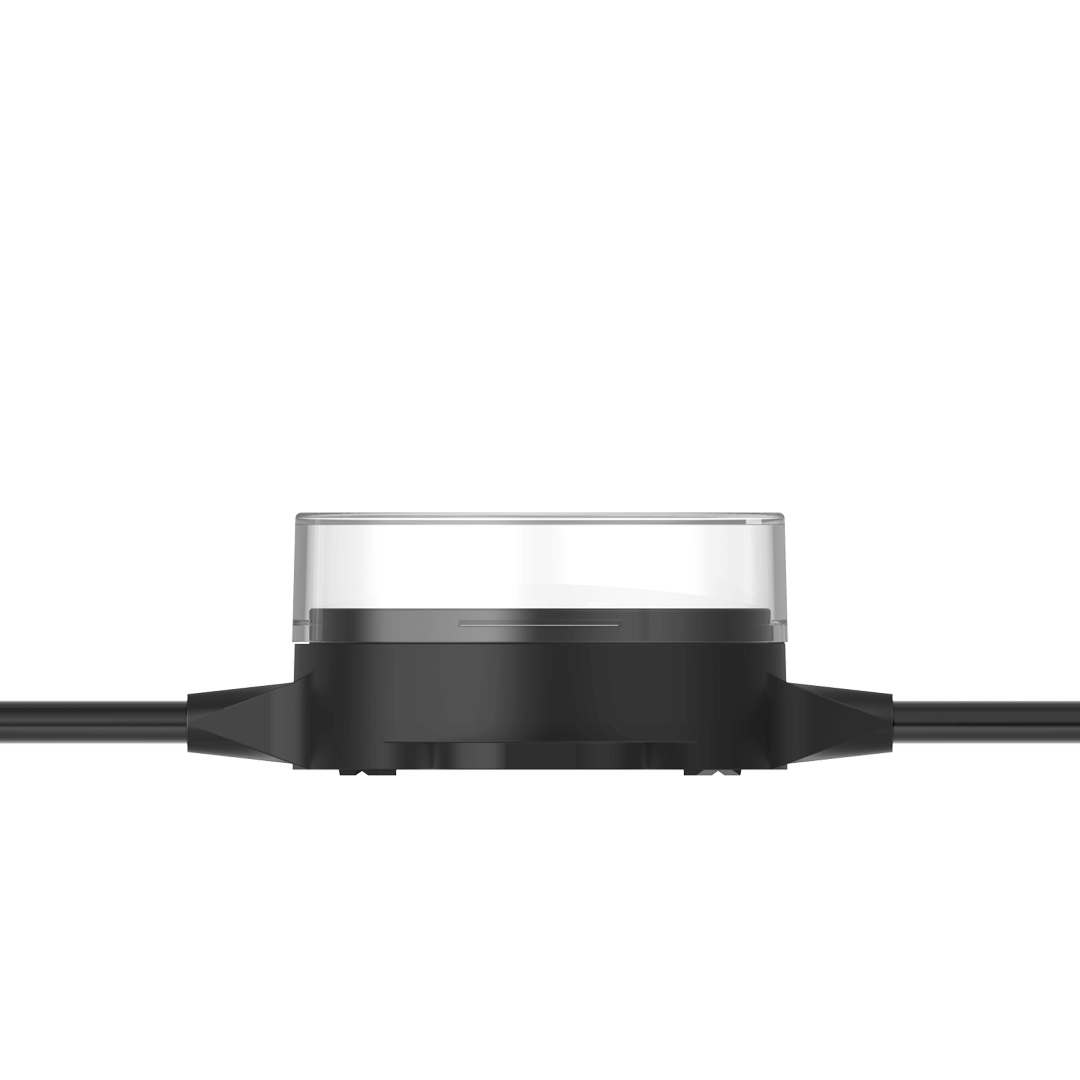

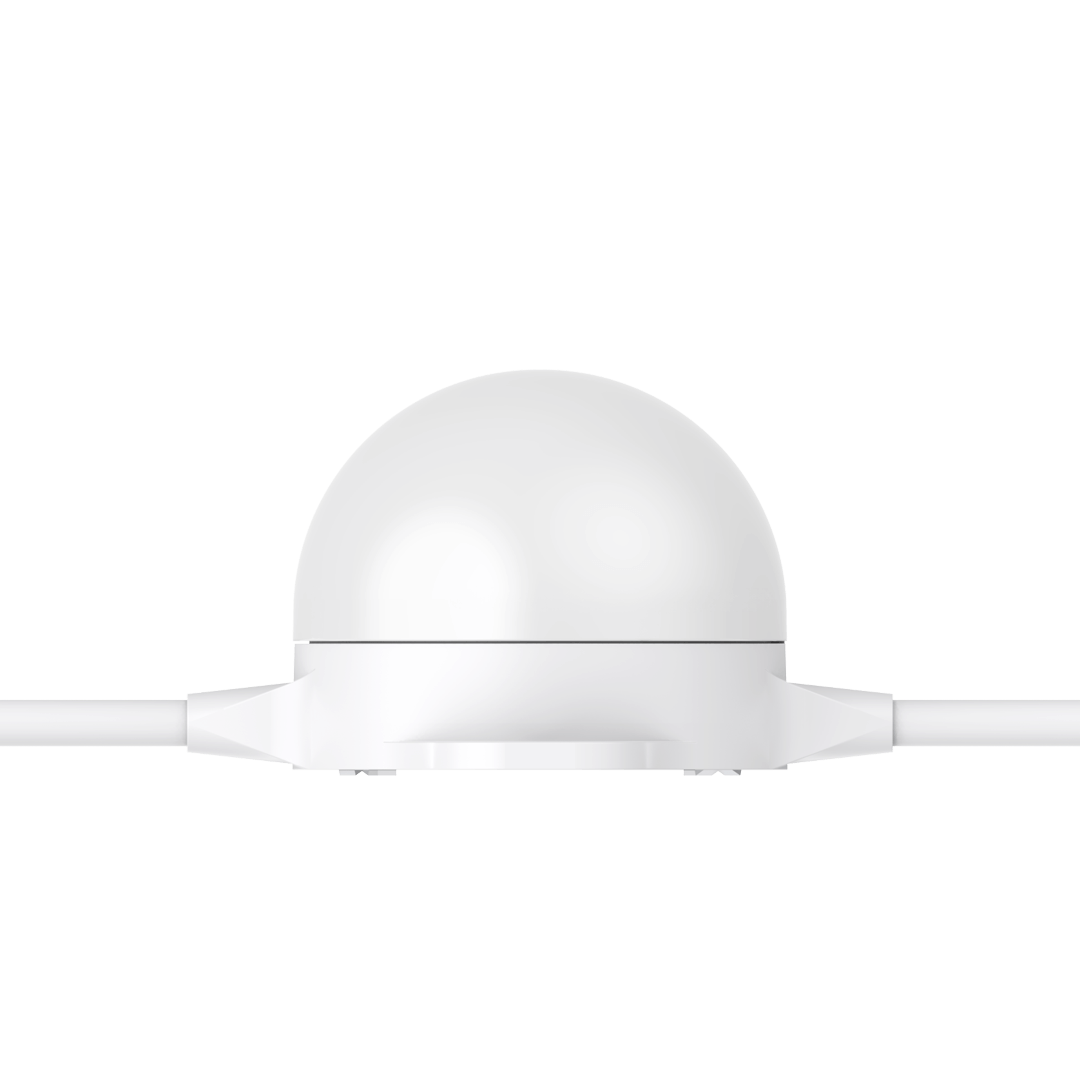

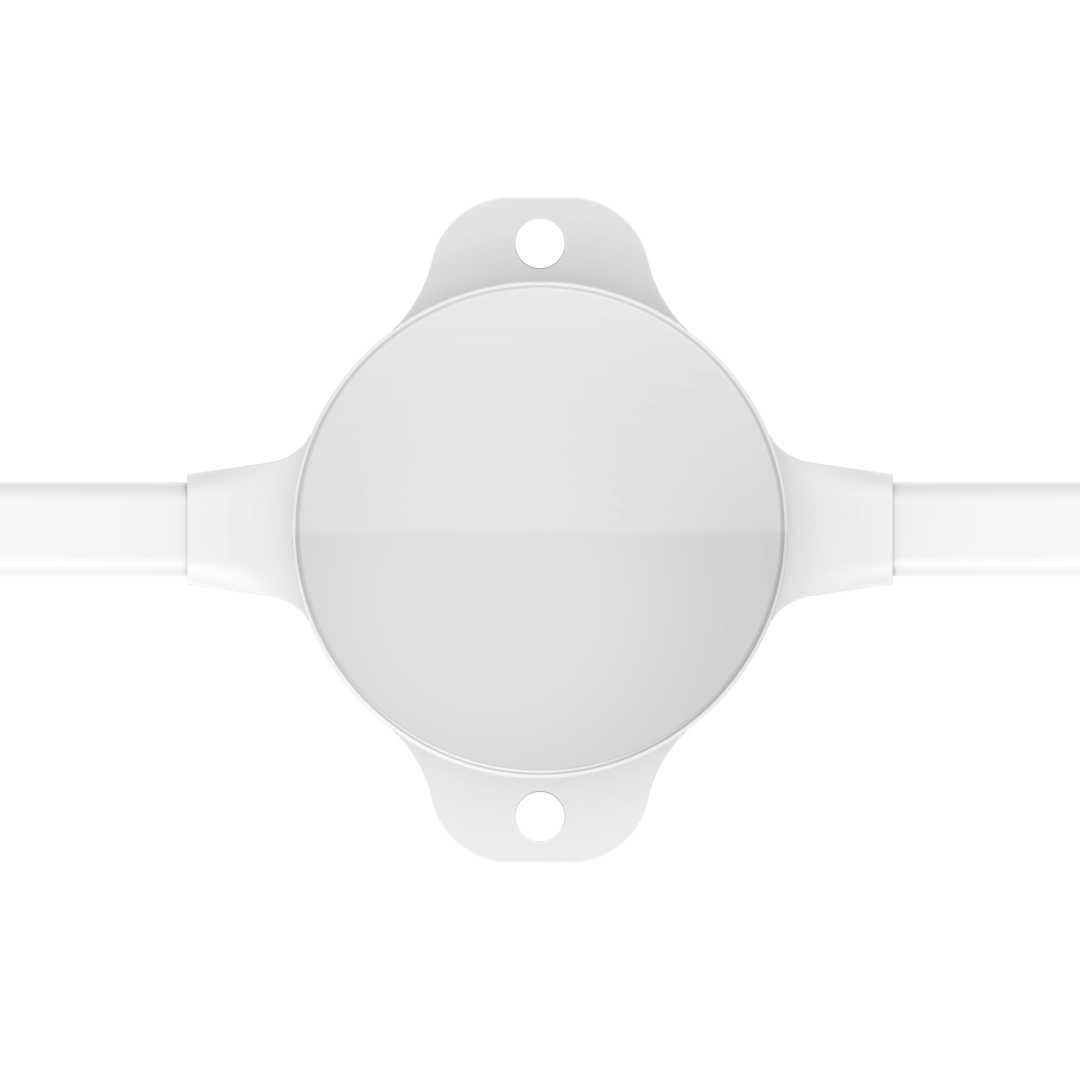

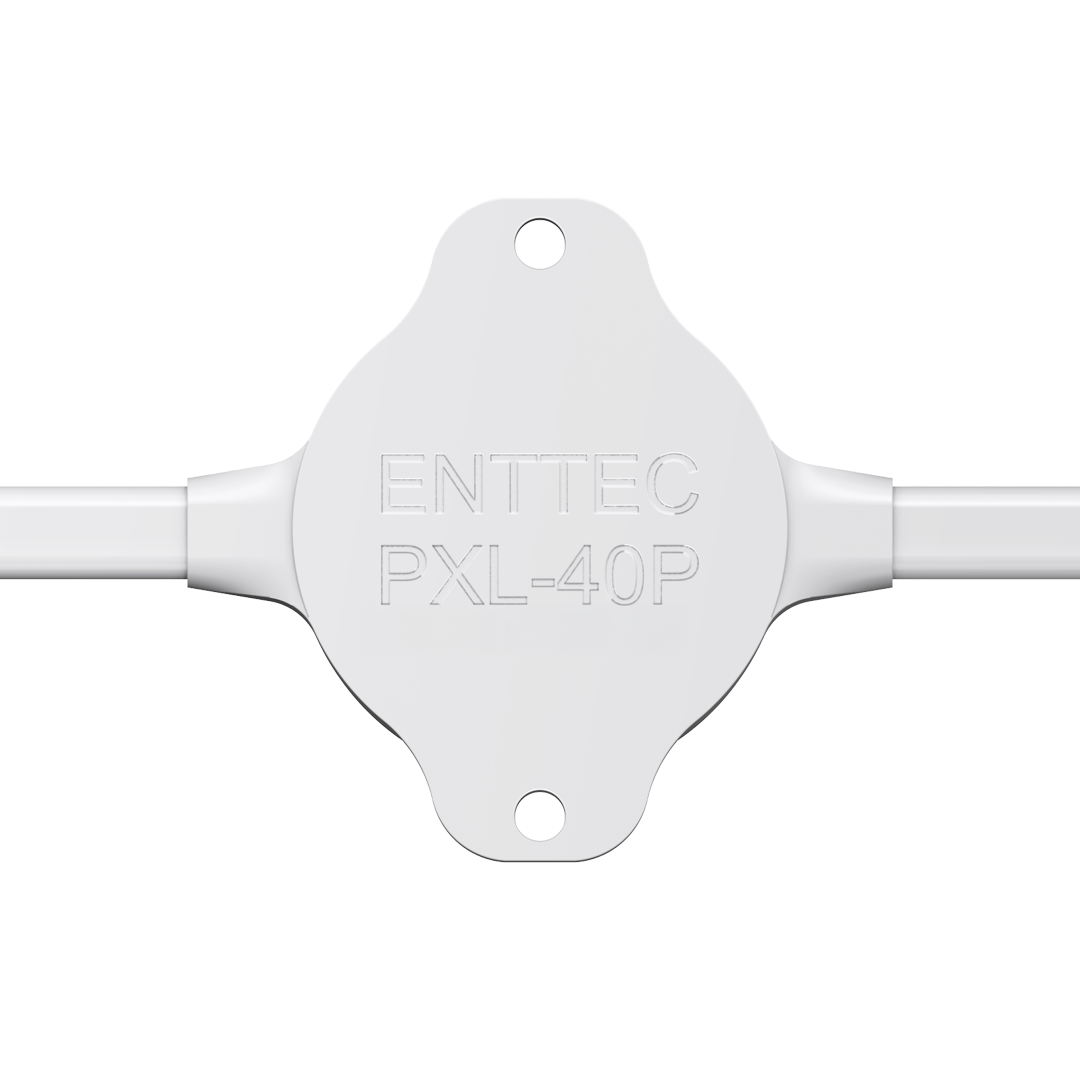

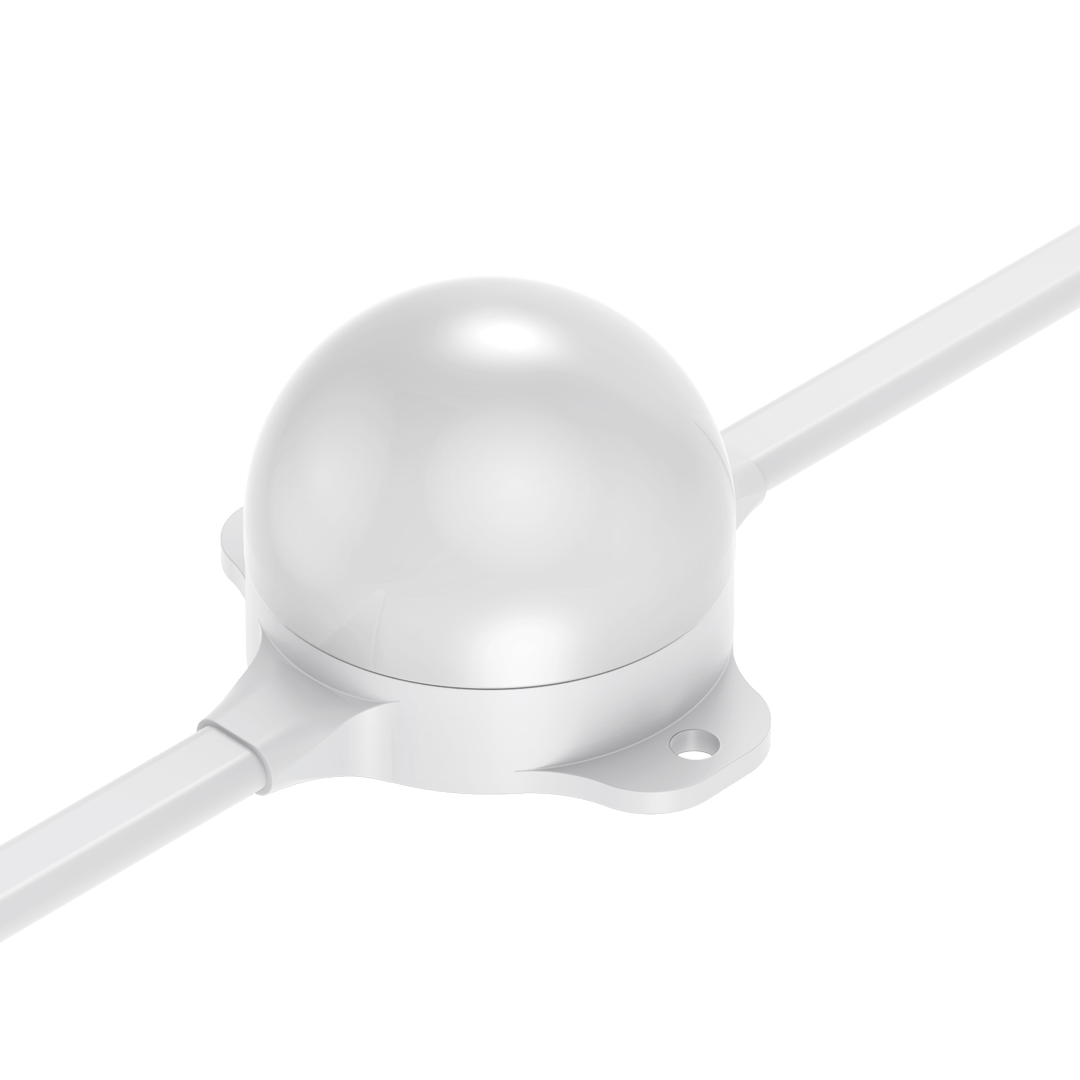

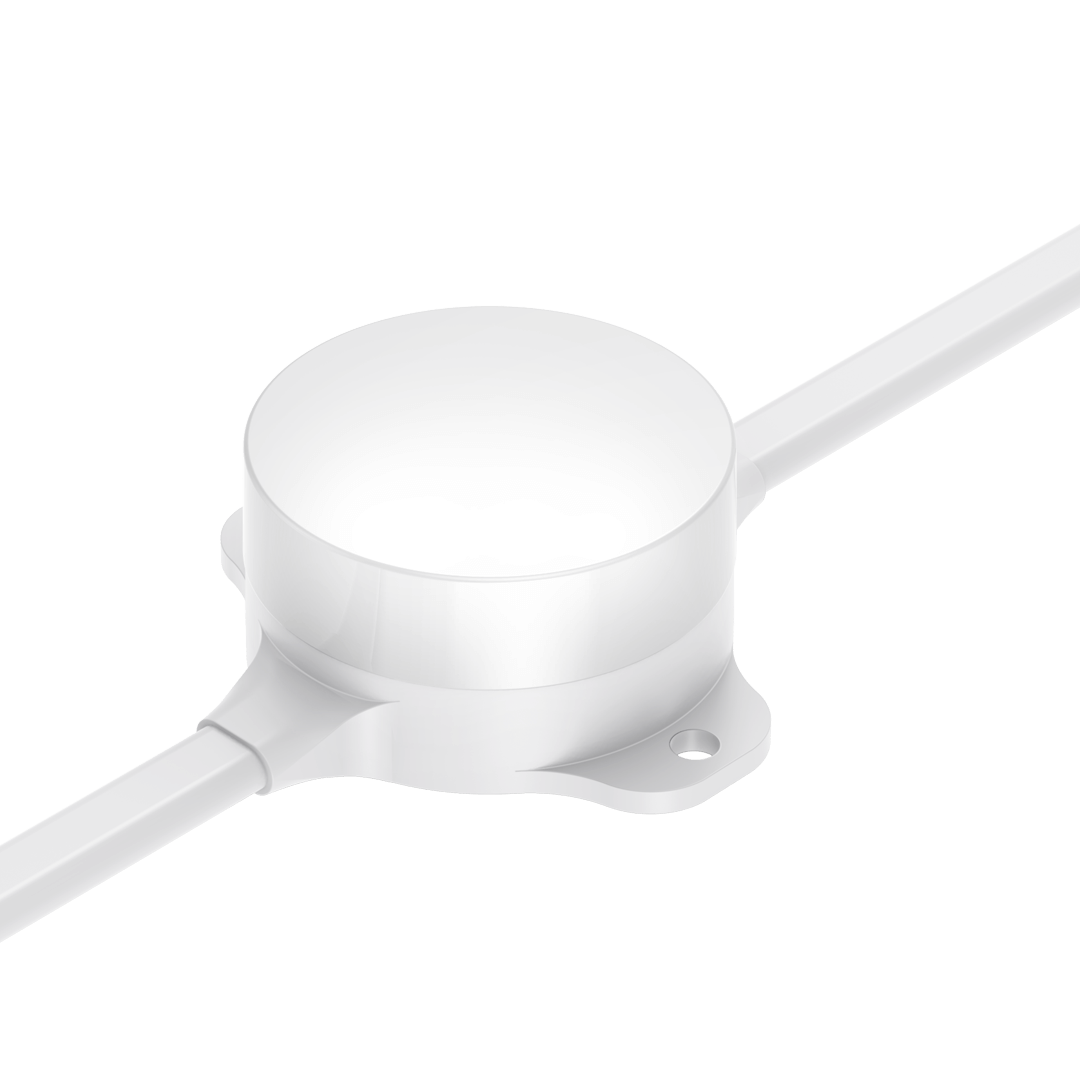

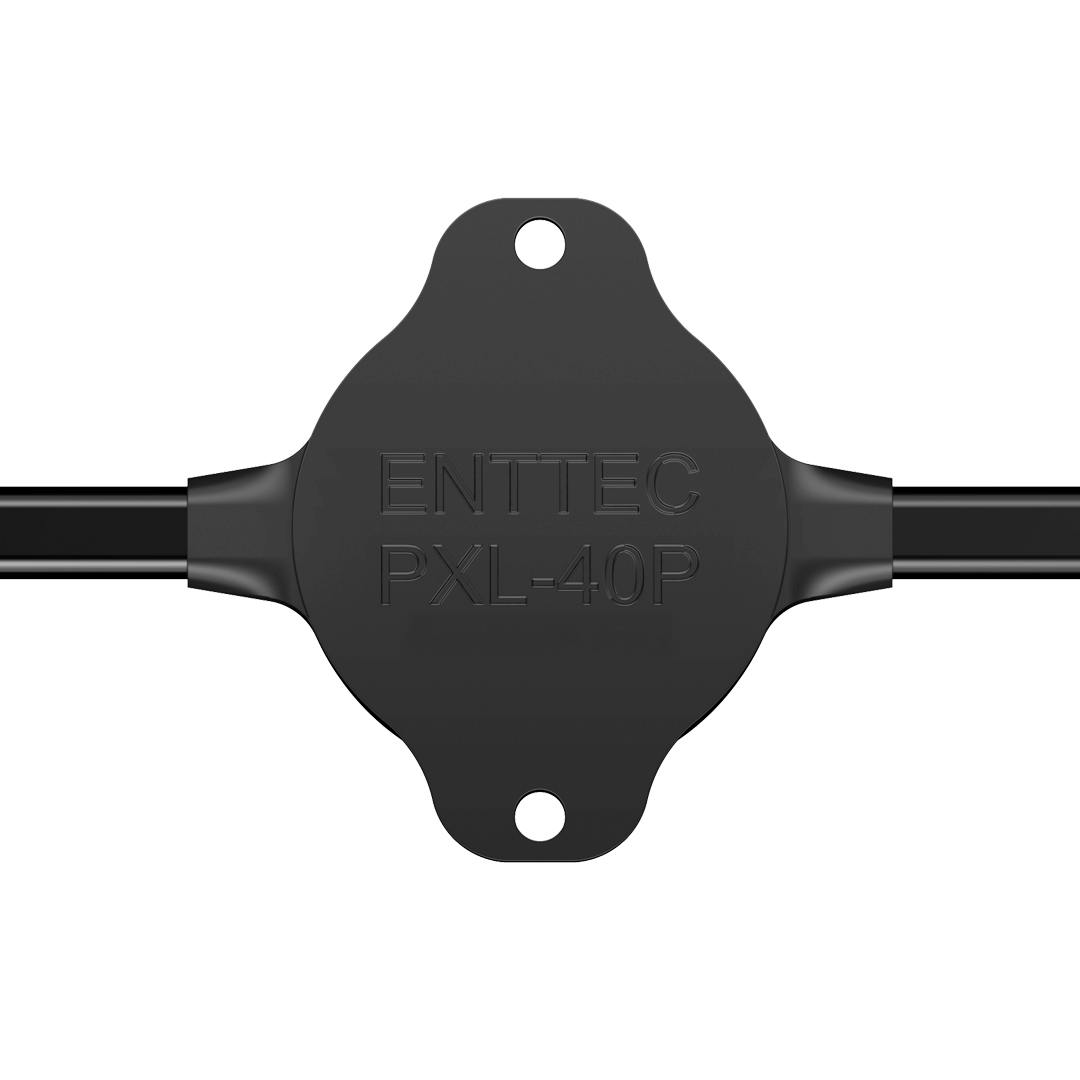

The Smart PXL 40 dots are available in black or white dot string, giving designers the flexibility to match darker or lighter architectural elements.

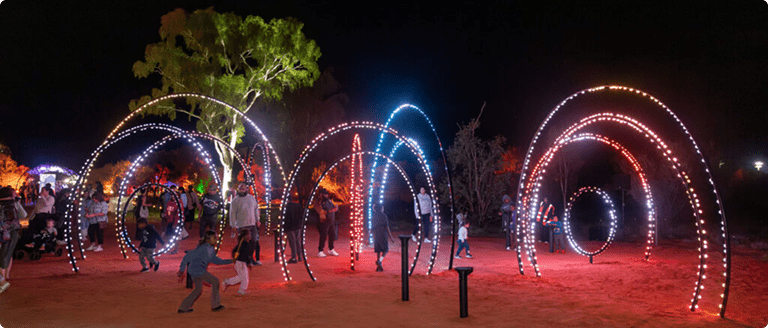

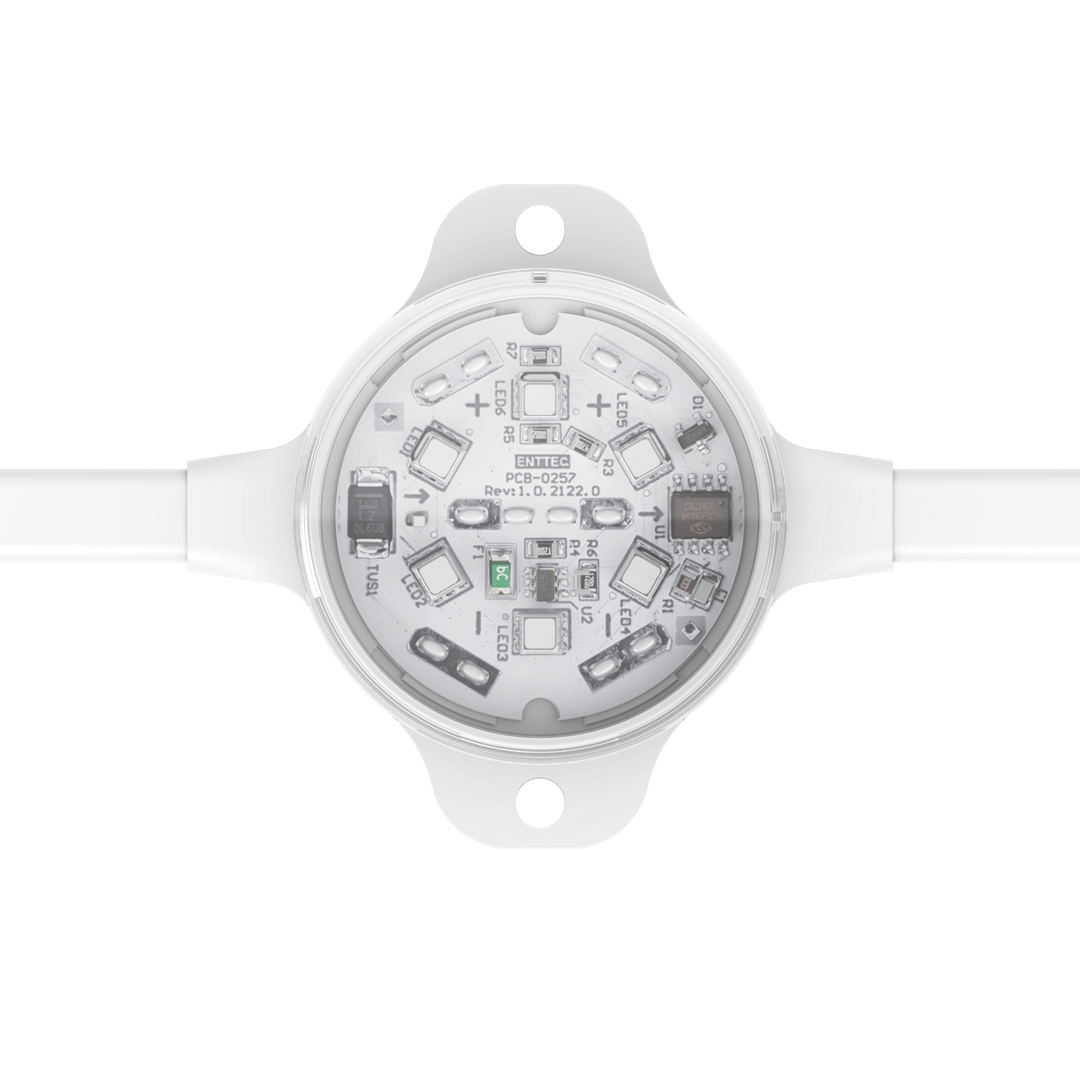

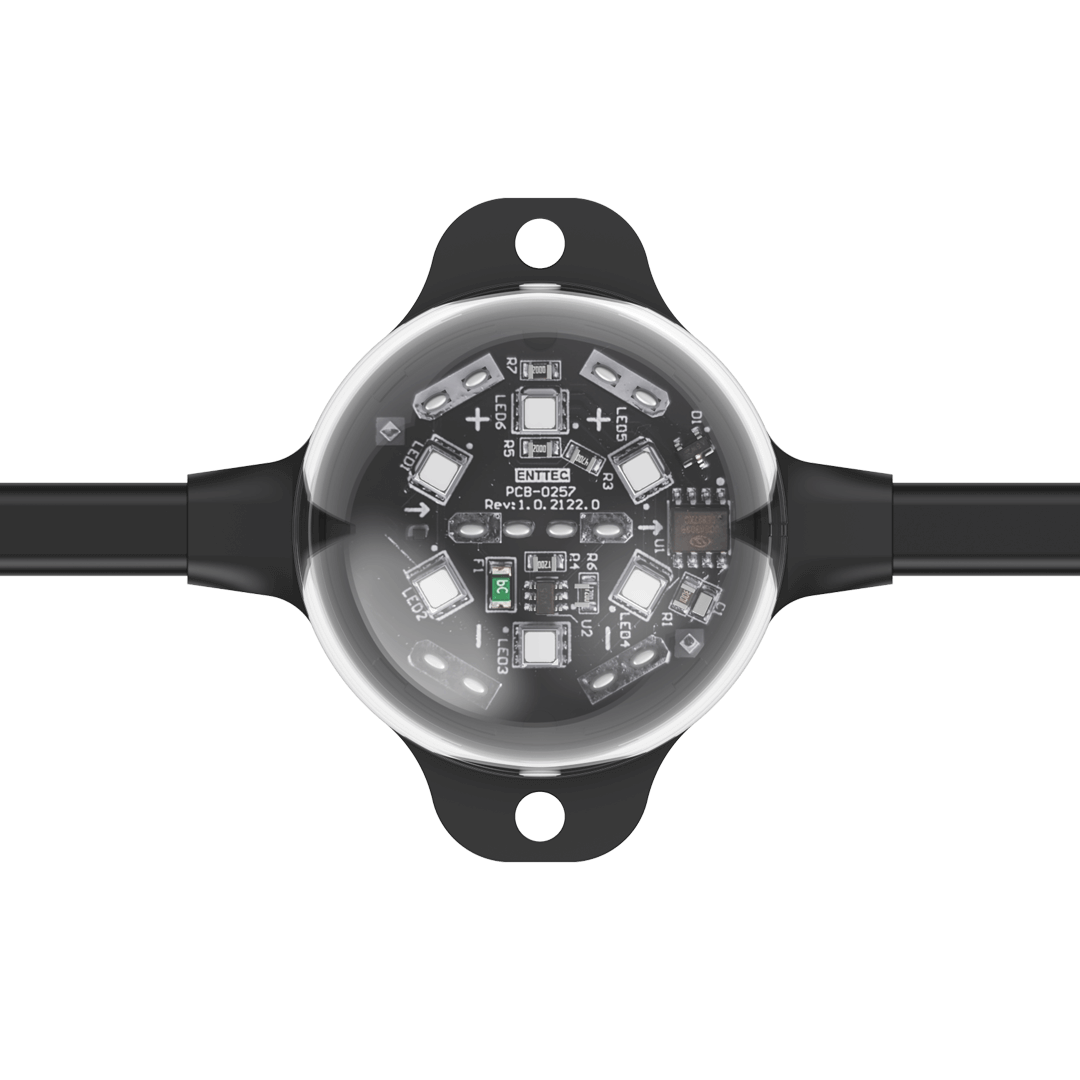

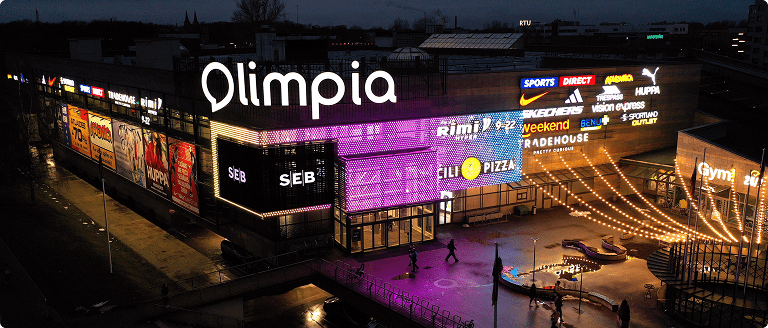

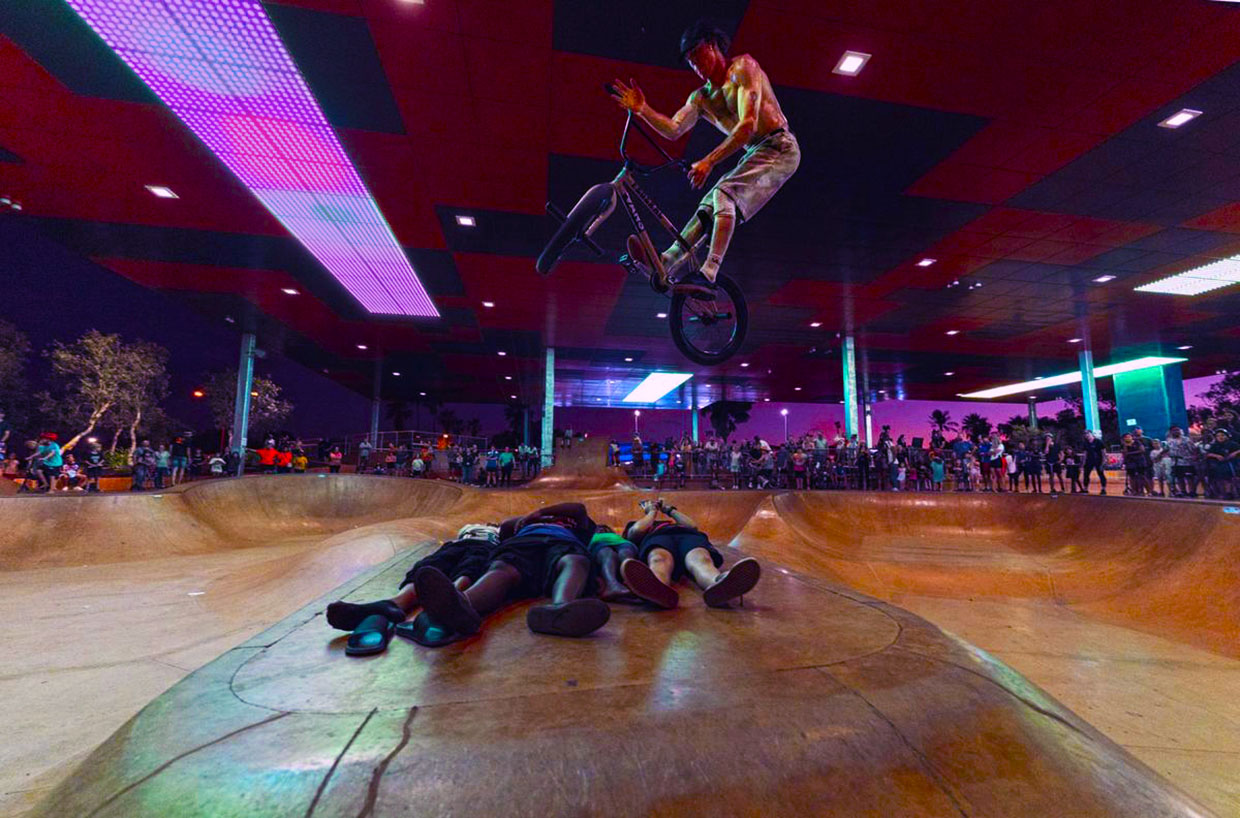

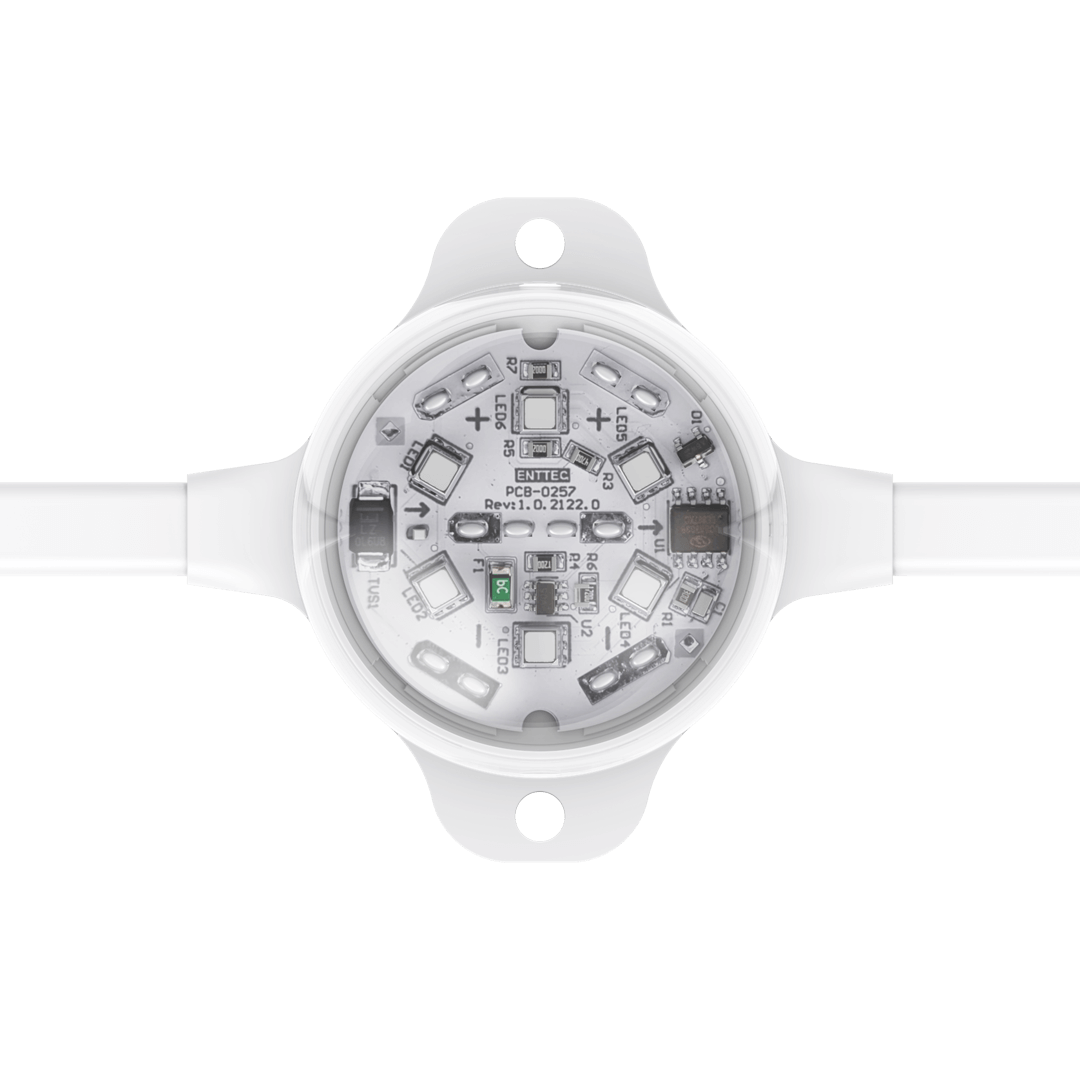

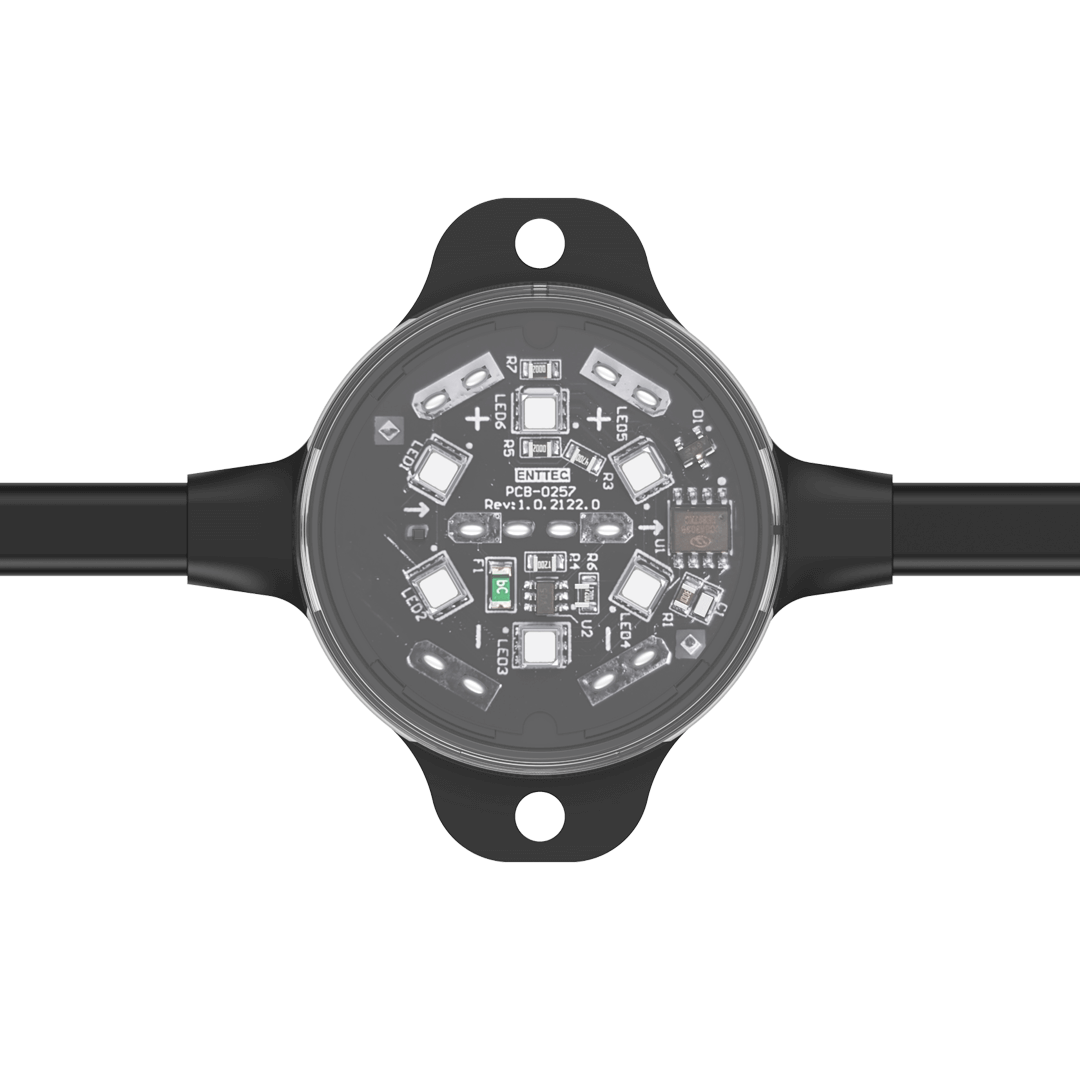

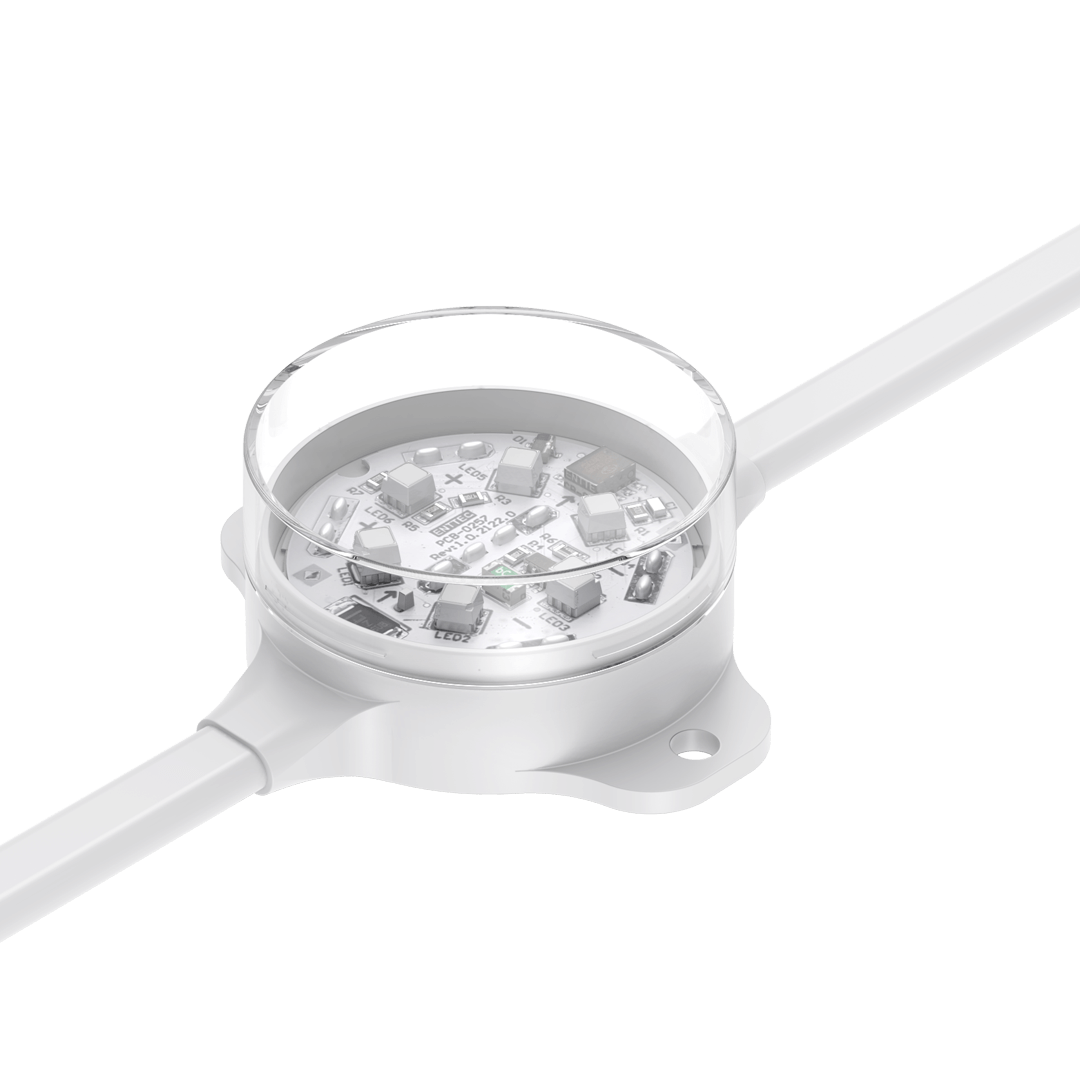

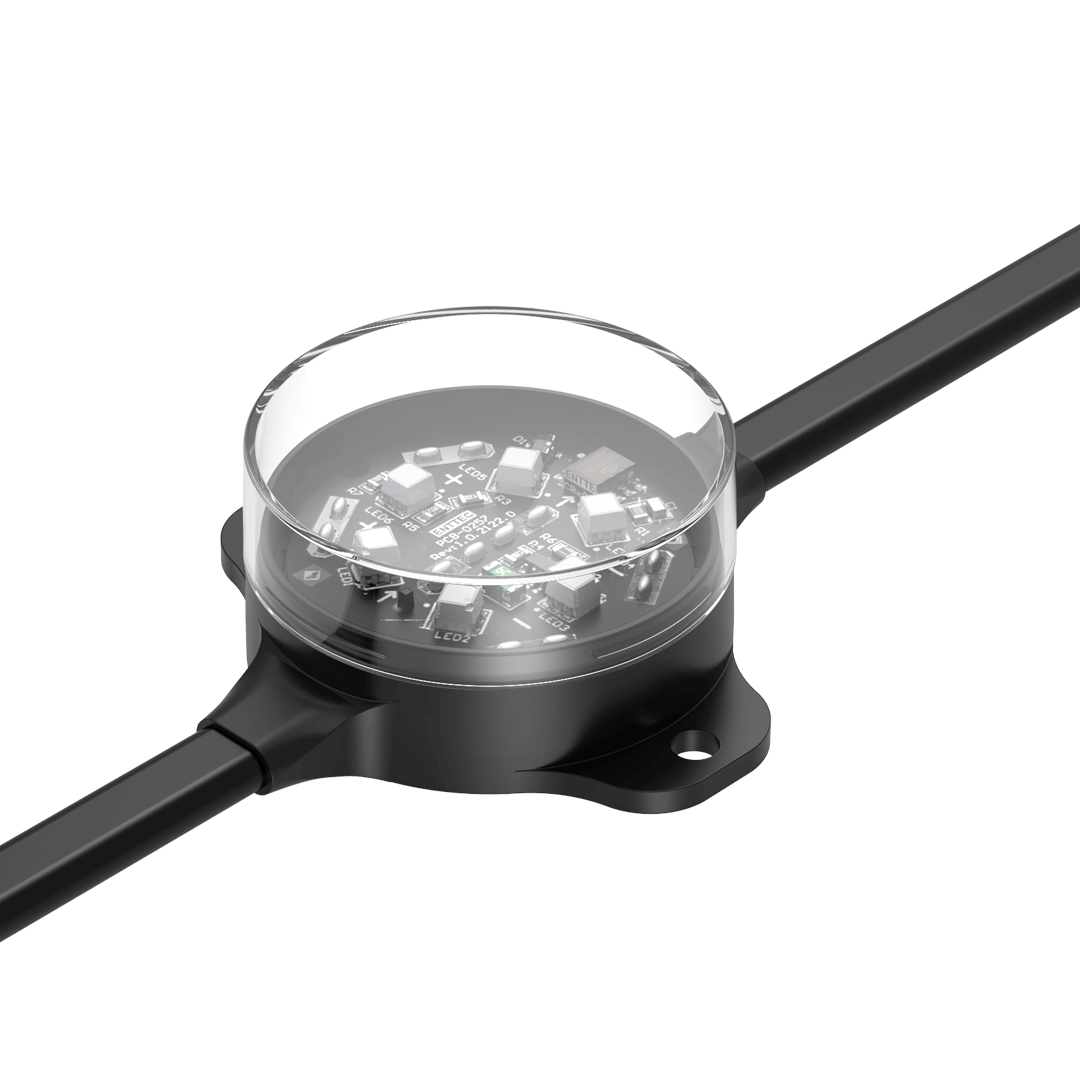

Each direct-view Smart PXL dot contains 6 premium RGB or RGBW LED chips, giving an impressive lumen output. They look amazing from a distance and have been used to great effect around the world on everything from bridges to ferris wheels.
Our hi-res Smart PXL dots are 16-bit native for an ultra-smooth dimming curve and mixing detail that will truly wow your audience.
The versatile nature of Smart PXL dot strings means they’re easy-to-install around tricky angles, corners or bends, making them ideal to show off or highlight architectural features. Talk with an ENTTEC expert and we can help you bring almost any design you can imagine to life.
The UL Listed Mark is a tier of UL approval for stand-alone consumables that have undergone rigorous testing by Underwriters Laboratories LLC. UL Listed means the product meets internationally recognised standards for sustainability and safety.
Smart PXL 40 dots also conform to the following international compliance and safety standards:
Accessories

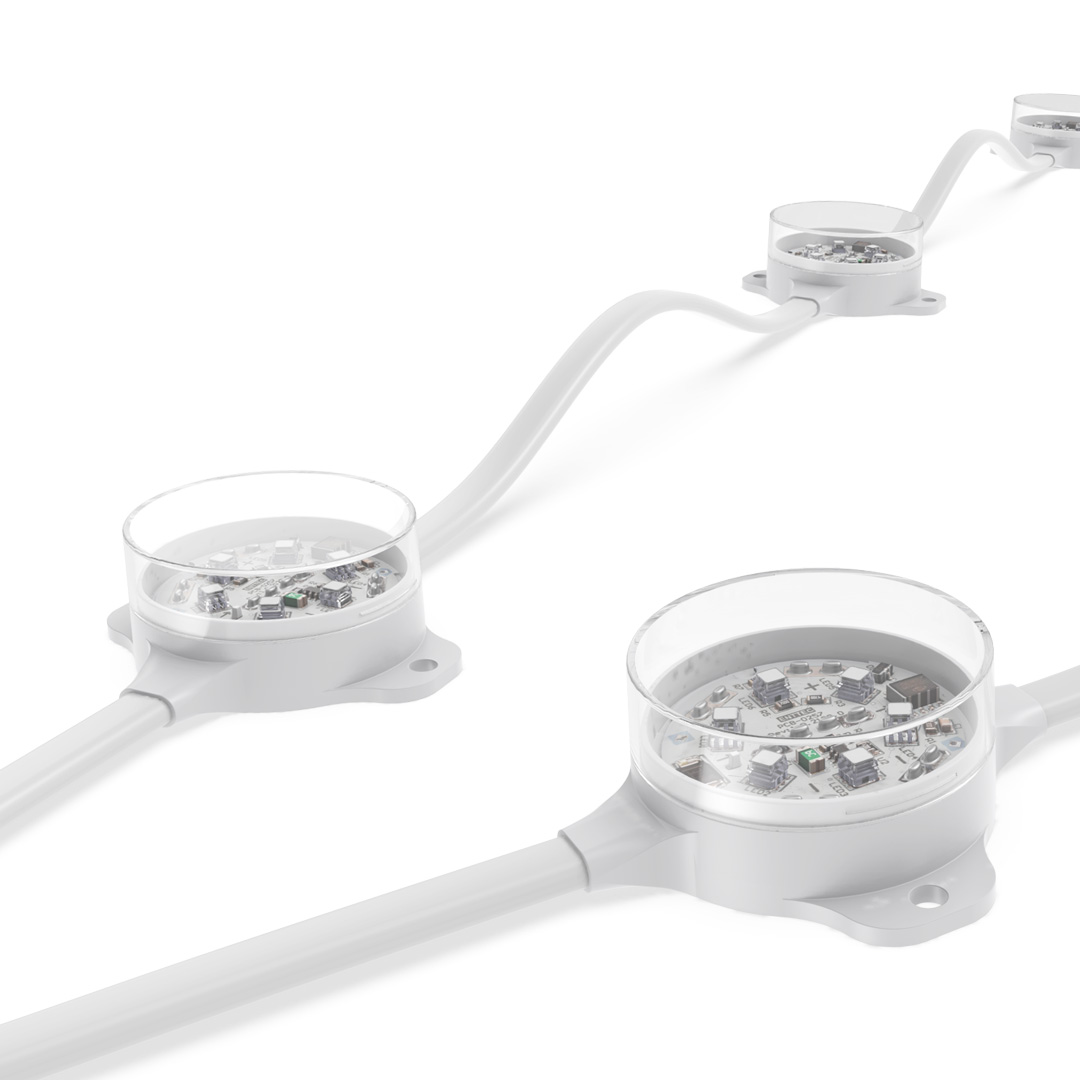

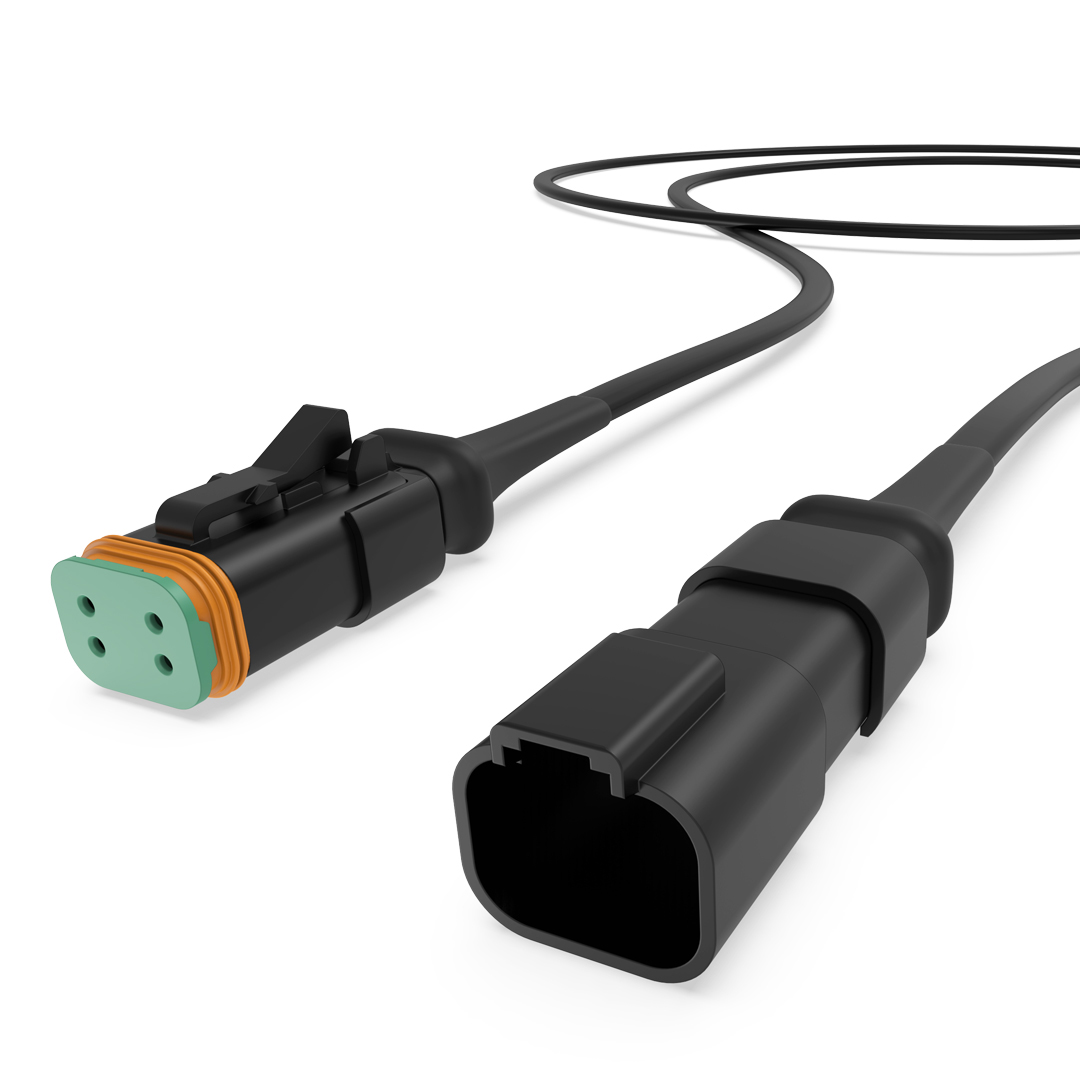

PXL 40 dot accessories
At ENTTEC, we know that well-considered design is key to a successful installation.
Our team have created a leading range of innovative accessories with premium cabling and connectors to support your project and make specifying and installing the Smart PXL series simple.
Specifications
Electrical
| Body material | Injection moulded PVC |
| Lens material | Optical Grade Polycarbonate |
| Weight | Approx. 48g/dot (excl. lead in & out) |
| IK & IP rating | IK10 & IP67 |
| UV resistance | Black / UV stabilized for outdoor application White / Suited for indoor or shaded installation |
| Operating ambient temperature | -20°C to 50°C |
| Input voltage | 24V |
| Maximum power per dot | RGB: 1.6W RGBW: 1.8W |
| Maximum current draw per dot | RGB: 60mA RGBW: 73mA |
| Current throughput capacity | 10A (For UL Class 2 installations, the chain’s total current draw must not exceed the output rating of the Class 2 or LPS power supply) |
| Cable resistance | 0.0132 Ohm/m |
| Cable thickness | 16AWG |
| 24V Connector pinout | Pin 1: 0V Pin 2: Data Pin 3: N/C Pin 4: +24V |
| Warranty | 3-year return-to-base manufacturer warranty as standard Talk to us to arrange longer periods |
LED Control
RGB version
| LED source | 6 pcs RGB SMD3535 – customisation options available |
| Max lumens (lm) | dome diffuse lens: 46.2 / dome clear lens: 57.9 / flat diffuse lens: 49.6 / flat clear lens: 61.2 |
| Efficacy (max lm/watt) | dome diffuse lens: 28.9 / dome clear lens: 36.2 / flat diffuse lens: 31.0 / flat clear lens: 38.3 |
| Control protocol | ENTTEC SPXL-16 |
| SPXL-16 channel footprint | 6 DMX slots/dot Coarse | Fine | Coarse | Fine | Coarse | Fine |
| Colour resolution | 65536³ = 281.4 trillion |
| Dots controllable per DMX universe | 85 dots |
| LED lifetime | 50,000 hours (L70) |
| Compatible protocol | UCS8903B (16-bit only) |
LED Control
RGBW version
| LED source | 6 pcs RGBW 3000K SMD5050 – customisation options available |
| Max lumens (lm) | dome diffuse lens: 63.7 / dome clear lens: 73.9 / flat diffuse lens: 61.8 / flat clear lens: 72.2 |
| Efficacy (max lm/watt) | dome diffuse lens: 35.4 / dome clear lens: 41.1 / flat diffuse lens: 34.3 / flat clear lens: 40.1 |
| Control protocol | ENTTEC SPXL-16 |
| SPXL-16 channel footprint | 8 DMX slots/dot Coarse | Fine | Coarse | Fine | Coarse | Fine | Coarse | Fine |
| Colour resolution | 65536⁴ = 18.4 quintillion |
| Dots controllable per DMX universe | 64 dots |
| LED lifetime | 50,000 hours (L70) |
| Compatible protocol | UCS8904B (16-bit only) |
